3U 12G 32 x 3.5" + 2 x 2.5" Hot-Swap Barebones Storage Chassis with AIC Libra Motherboard.

PCICASE Model No: SB303-LB
Manufacturer Model No: SB303-LB
Please Call Sales
Key Features
  • High density 3U 32-Bay object storage server
  • Supports two Intel® Xeon® Processors E5-2600 v3 Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Two 10 GbE RJ45 ports
Features And Benefits

The SB303-LB is a 3U 32-Bay Object Storage Server, supports dual Intel® Xeon® Processors E5-2600 v3 Product Family. It has 32 x 3.5” hot swap and 2 x 2.5” internal drive bays. SB303-LB supports up to 6 PCIe 3.0 slots utilizing 64 lanes.



Please note that this video is for demostration puposes to demonstate the advances of using this range of products



Please note currently this model requires 1200mm cabinet for intallation.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 900 x 132
• inches : 19 x 35.4 x 5.2

Material
• Heavy-duty preplated SGCC cold-rolled steel

Motherboard

AIC Server Board Libra

Processor
Processor Support : Two Intel® Xeon® Processors E5-2600 v3 Product Family
QPI Speeds : 9.6 GT/s, 8 GT/s, 7.2 GT/s
Socket Type : Socket R3 (FCLGA2011-3)

Chipset
Intel® C612 Chipset

System Memory
• 16 DIMM slots across 8 memory channels
(4 memory channels per CPU; 2DPC)
- 512GB DDR4 2133/1866 RDIMM DRx4
- 128GB DDR4 2133/1866 RDIMM SRx4
- 1024GB DDR4 2133/1866 LRDIMM QRx4
- 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4

Front Panel
• Power on/off
• System reset

LEDs
• Power
• Alert
• LAN

Drive Bays
• Internal : 32 x 3.5” hot swap
Choose 1 :
• External : 2 x 2.5” hot swap
• Internal : 2 x 2.5”

Backplane
8 x 4-port 12Gb SAS backplanes with single SFF-8643 connector on each

Expansion Slots (PCIe 3.0)
2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP)

System BIOS
BIOS Type :
• Insyde UEFI BIOS
• SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe NTB

On-board Devices
SATA :
Built-in SATA controller with RAID support on Intel® C612 Chipset
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
Network Controller :
• Intel® Ethernet Controller X540-BT2 dual port 10GbE, 10GBASE-T, PCIe v2.1, x8
• Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
• Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
• Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port
• Optional : Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2)
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

Rear I/O
• 3 x RJ45 (1 for BMC)
• 2 x USB 3.0
• 1 x VGA
• 1 x Serial
(optional 2 x RJ45)

Power Supply
1200W 1+1 redundant 80+ Gold

System Cooling
3 x 80x38 PWM hot swap fans

System Management
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM

Environmental Specifications
• Operating temperature : 0° - 35°C
• Operating altitude condition : 0 ~ 10K feet
• Storage temperature : -20° ~ 60°C
• System relative humidity : 5% - 95% (38°C) non-condensing

Gross Weight (w/PSU & Rail)
• kgs : 47
• lbs : 103.4

Packaging Dimensions (W x D x H)
• mm : 1170 x 600 x 358
• inches : 46 x 23.6 x 14.1

Mounting
Standard : 25" tool-less slide rail
* All specifications are subject to change without notice.

Datasheet SB303-LB Datasheet


 SB303-LB Datasheet.pdf



User Manual SB303-LB User Manual


 Libra UserManual.pdf



Product Images SB303-LB (Front 45 Degrees)

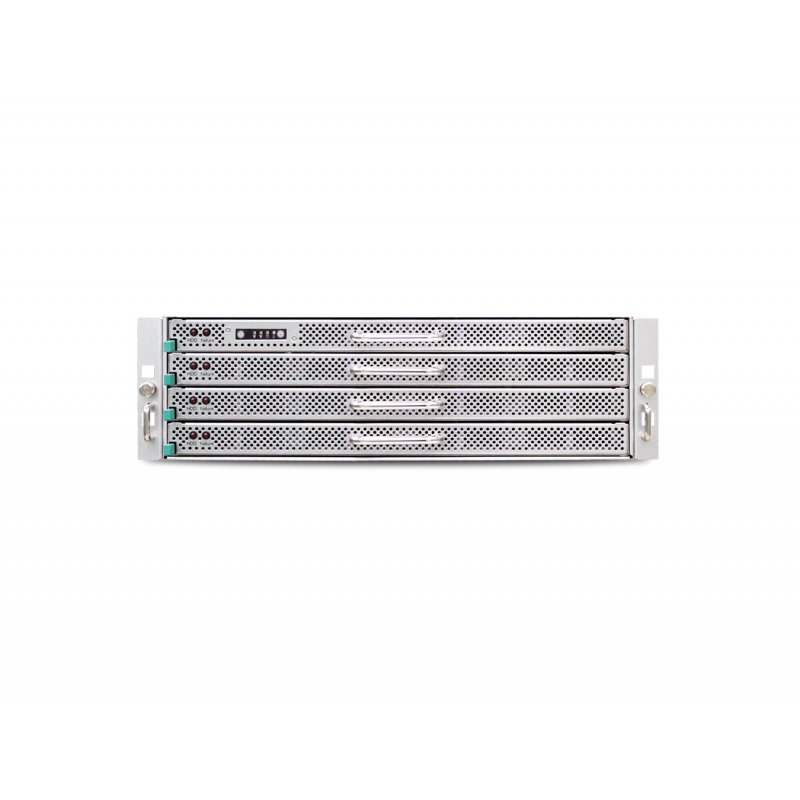

Product Images                                          SB303-LB (Front)





Product Images     SB303-LB (Top)

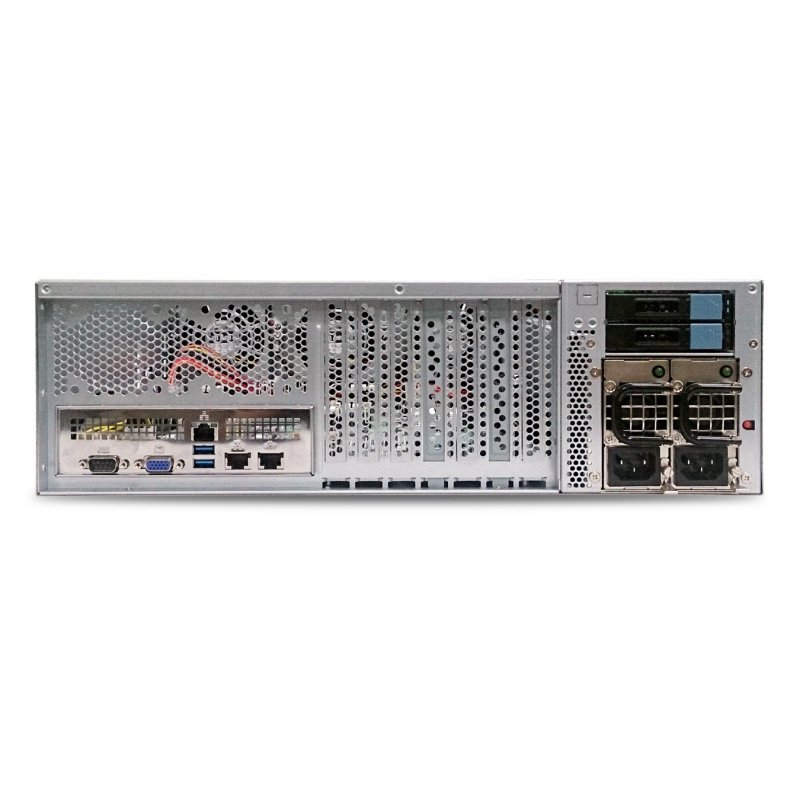

Product Images SB303-LB (Rear)
