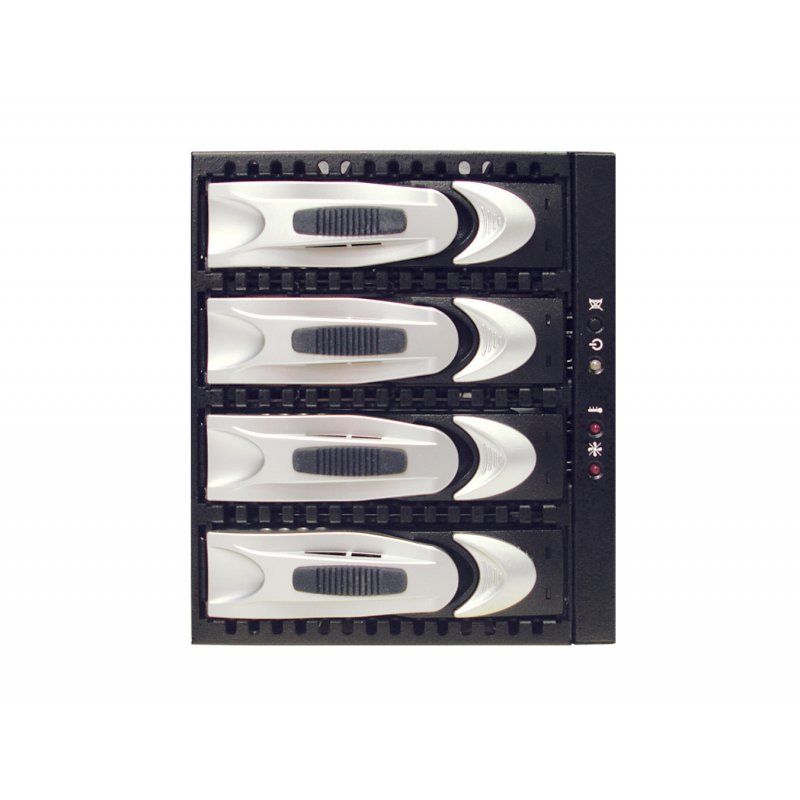

3 x 5.25" to 4 x 3.5 6G SAS/SATA Hard Drive Backplane Caddy. * Hot-Swap Tray Design

PCICASE Model No: IPC-BR-SAS34-D1-S
Key Features
  • Converts 3 x 5.25" bay intto 4 x 3.5" hot-swap
  • 1 x SFF8087 & 1 x RS232 Rear Connector
  • Alarm Monitoring (Over-temperature alarm, Fan failure alarm)

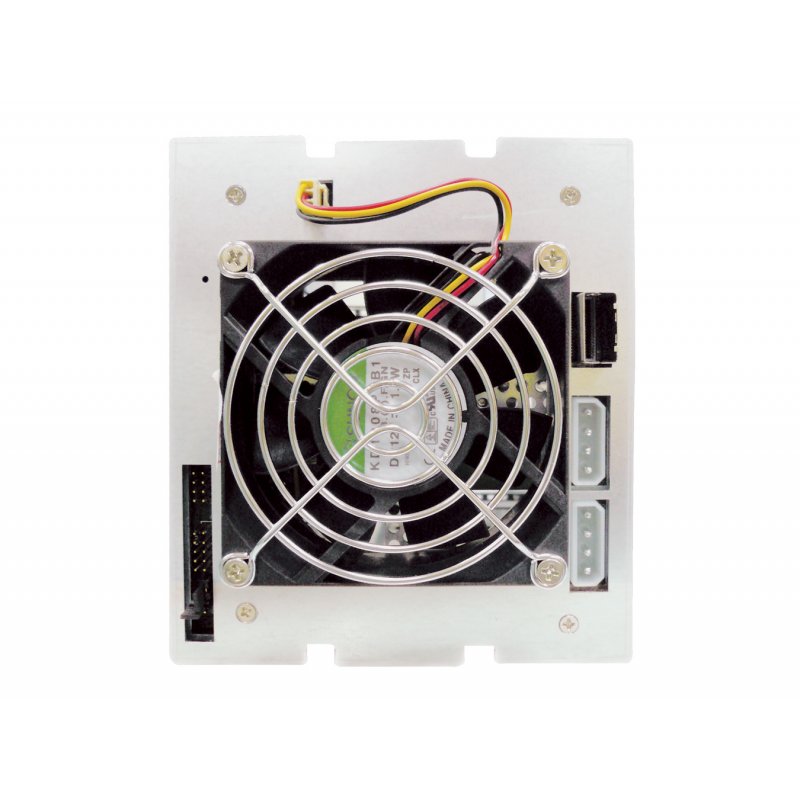

  • 1 x 80x25mm rear fans

Product Details
Model IPC SAS34 (XC-34D-2)
Order Information IPC-BR-SAS34-D1-S

Technical Details
Colour Silver Tray (Standard)
Drive Support
4 x 3.5" SAS, SATA/SATAII Drives
Connectivity Internal: 4 x SAS/SATA connector
External: 1 x SFF8087, 1 x RS232
Drivebay Configuration 3 x 5.25" to 4 x 3.5" HDD

Switches & Indicators
Power Switch: No
Reset Alarm: Yes
Indicators: 4 x Power, 4 x HDD Activity, Fan Status, Temperature Status

Monitoring
CPLD, SGPIO

Cooling
1 x 80x25mm rear fans

Alarms
Over-temperature alarm
Fan failure alarm

Dimensions & Weights
Product Dimensions (WxDxH) 147 x 224 x 127mm

Package Contents
1 x IPC SAS34
1 x Accessory Box
