2U server for general purpose, supports Intel® Xeon® 6700/6500 series with E-cores/P-cores processors (codename Sierra Forest/Granite Rapids),

PCICASE Model No: SB201-SU
Manufacturer Model No: XP1-S201SU04
7 Day Delivery

Key Features

  • 2U all-flash server solution

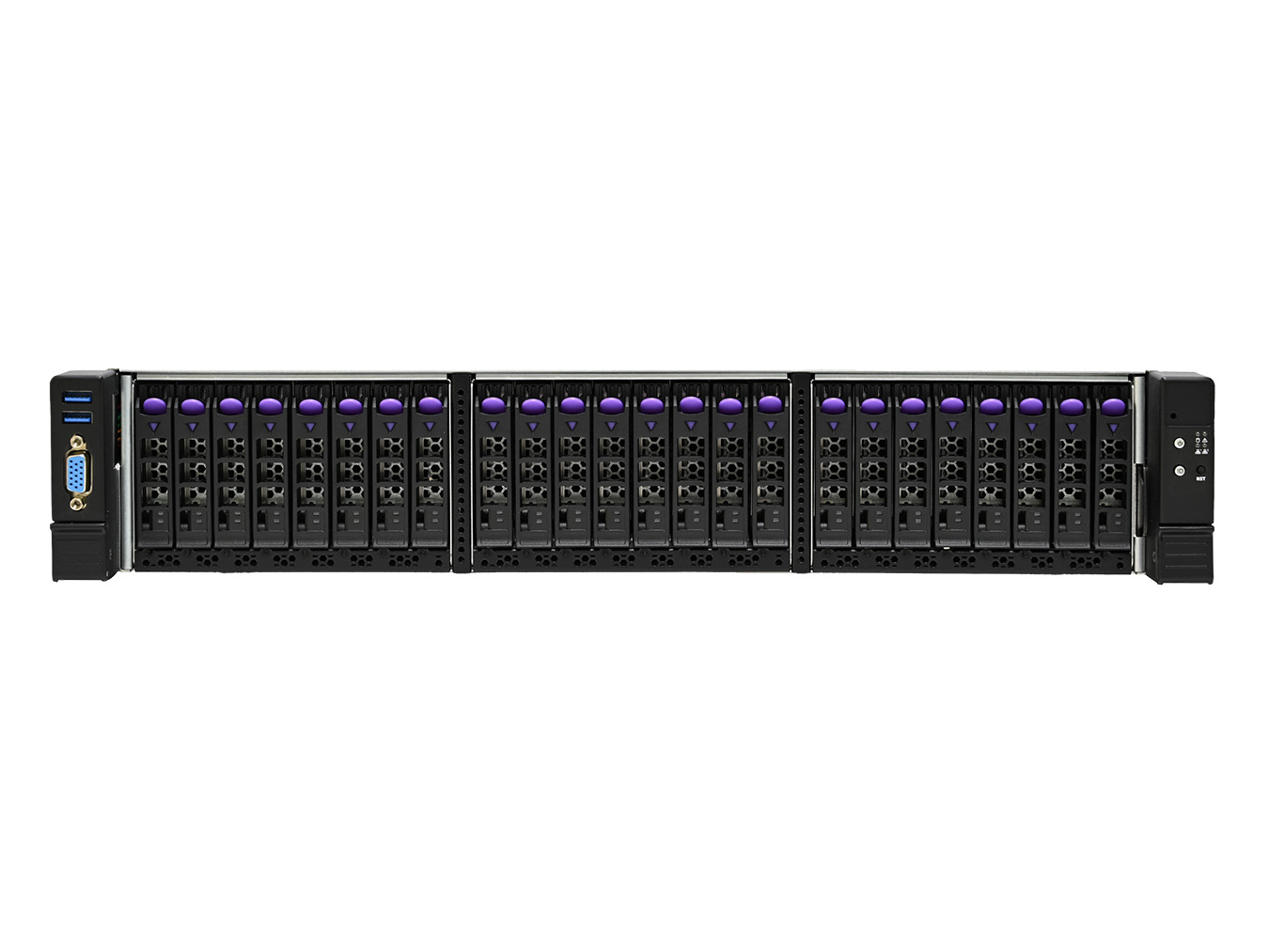

  • 24 x 2.5”/E3.S front hot-swappable PCIe Gen5 NVMe bays
  • Supports Intel® Xeon® 6 Scalable Processors for highest every performance and improved power efficiency
  • Supports DDR5 RDIMM and PCIe Gen5 extensions
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Dedicated BMC management port
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions

SB201-SU, a 2U server for general purpose, supports Intel® Xeon® 6700/6500 series with E-cores/P-cores processors (codename Sierra Forest/Granite Rapids), 32x DDR5 RDIMM, and 2x PCIe GEN5 extensions. SB201-SU has 24 x 2.5”NVMe/SATA/SAS (front) and 2x2.5" SATA (rear) hot-swappable bays to provide highest storage density and optimized performance for the applications.

Dimensions

  • mm: 438 x 820 x 87.5
  • inches: 17.2 x 32.2 x 3.4

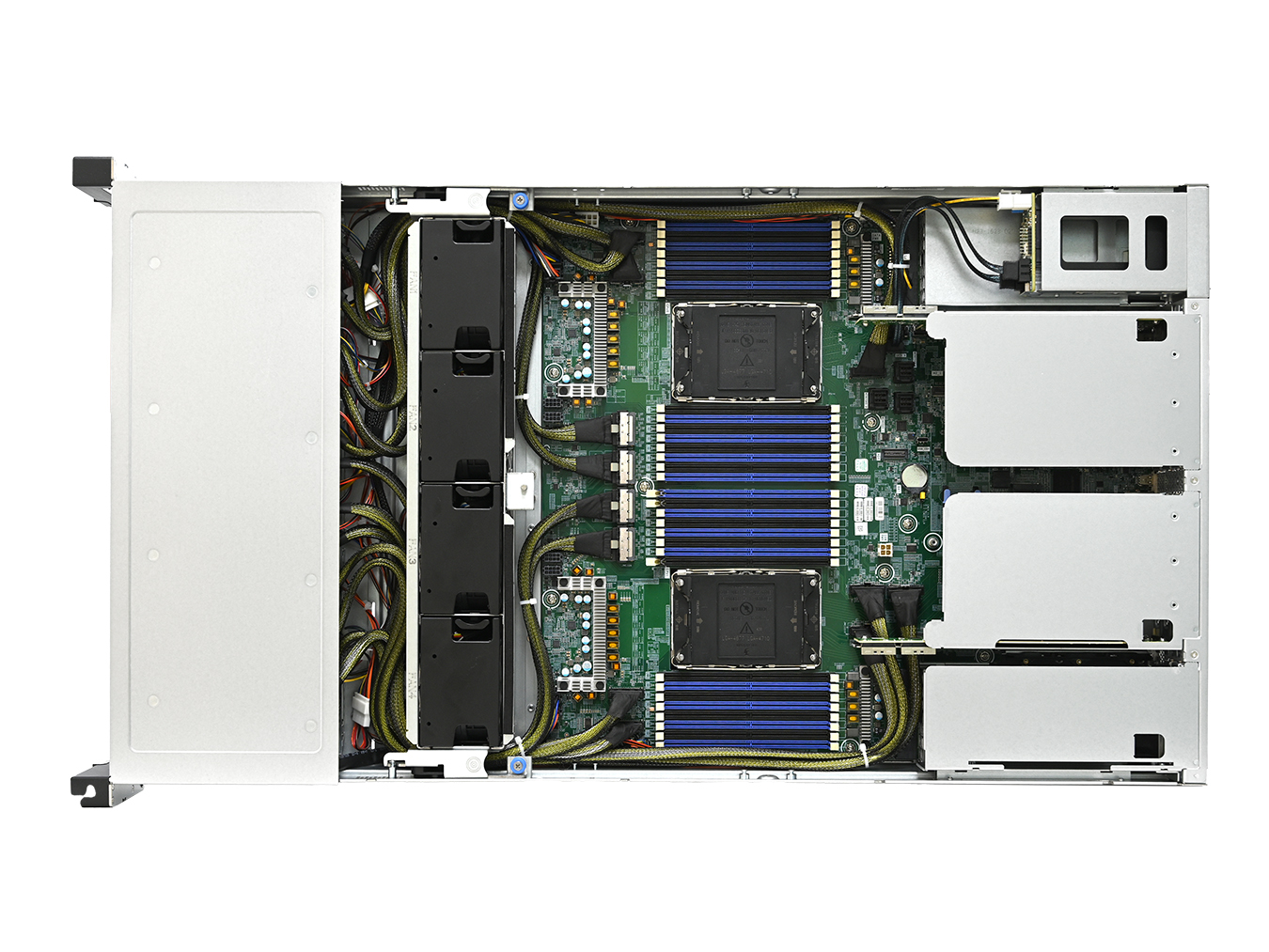

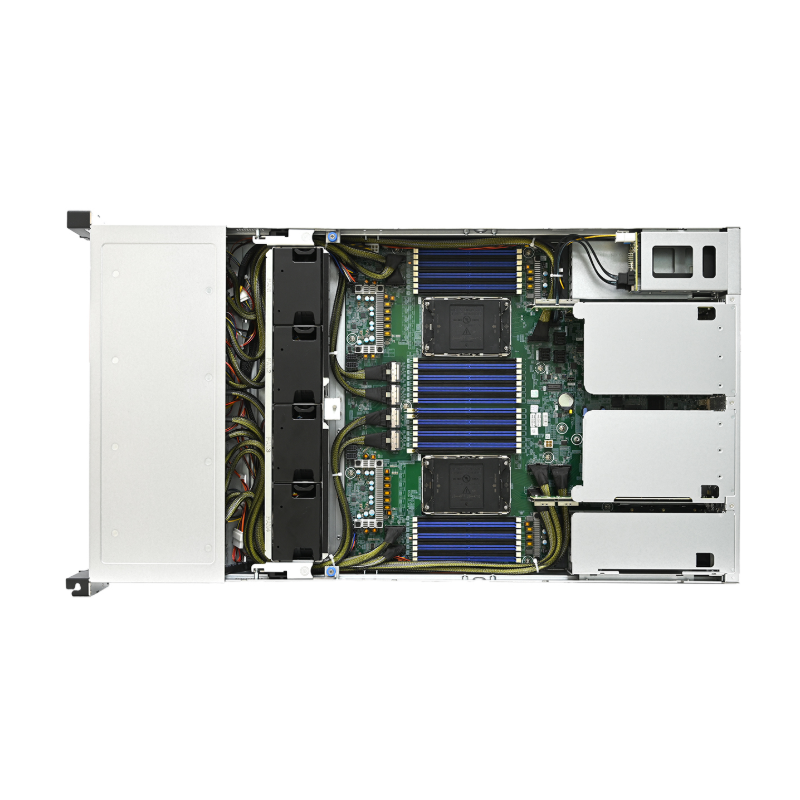

Motherboard

  • AIC Server Board Sirius

Processor

  • Processor Support: Dual Intel® Xeon® 6 6700E/6500P/6700P series; Supports CPU TDP 350W; (Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system)
  • CPU Interconnection: UPI Speeds : 24GTs
  • Socket Type: Socket E2 (LGA 4710 Socket)

System Memory

  • Total 32 memory slots; 8 channel per CPU (2DPC); DDR5 6400MHz(1DPC) 5200MHz(2DPC) 8000MHz(1DPC MCR) by 6700P/6500P series;; DDR5 6400MHz(1DPC) 5200MHz(2DPC 2Rx4 RDIMM only) by 6700E series;; DDR5 6400MHz(1DPC) 5200MHz(2DPC) 8000MHz(1DPC MCR) by Clearwater Forest

Front Panel

  • Power button, ID button, Reset button, VGA, 2 x USB 3.0

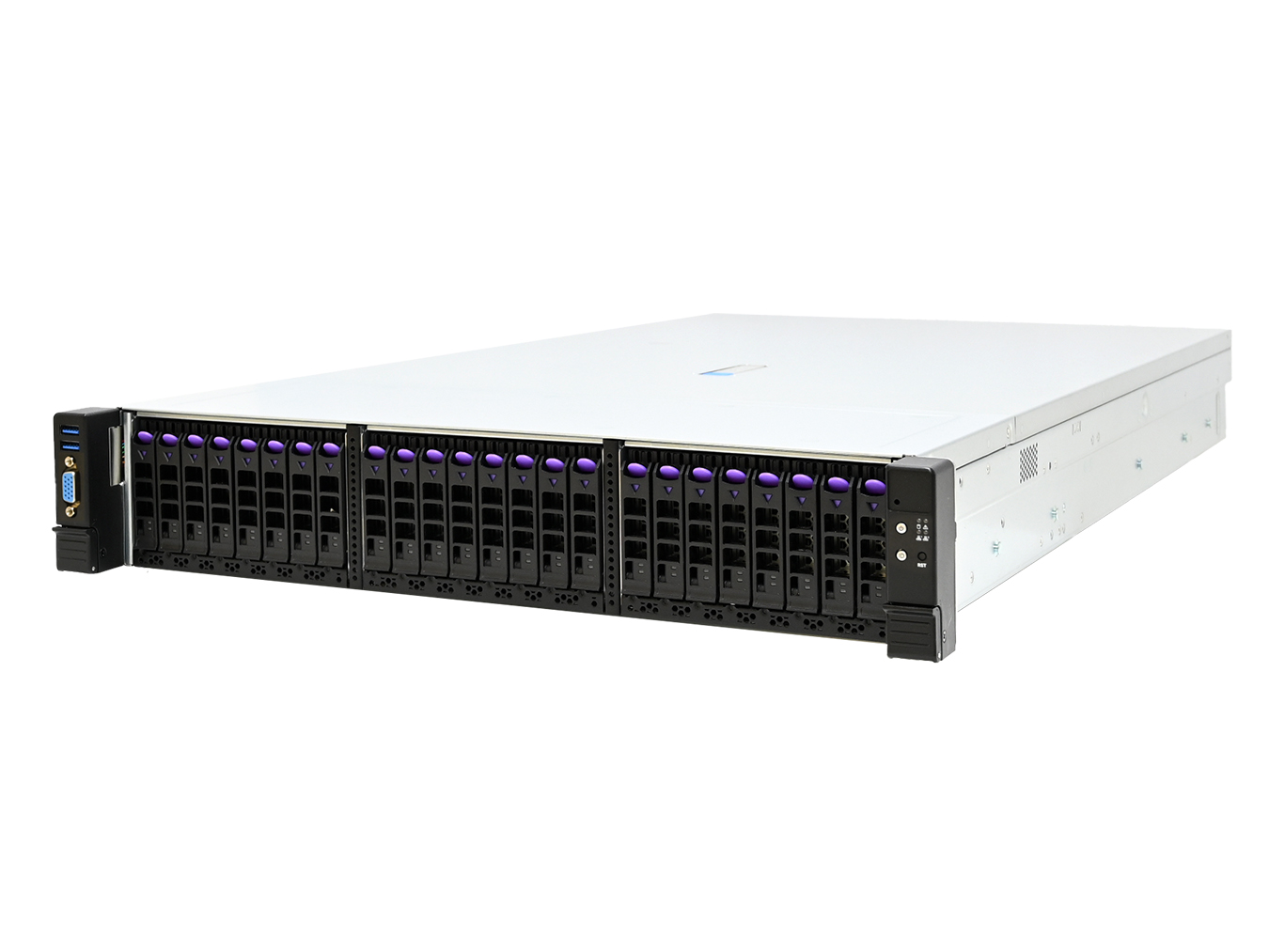

Drive Bays

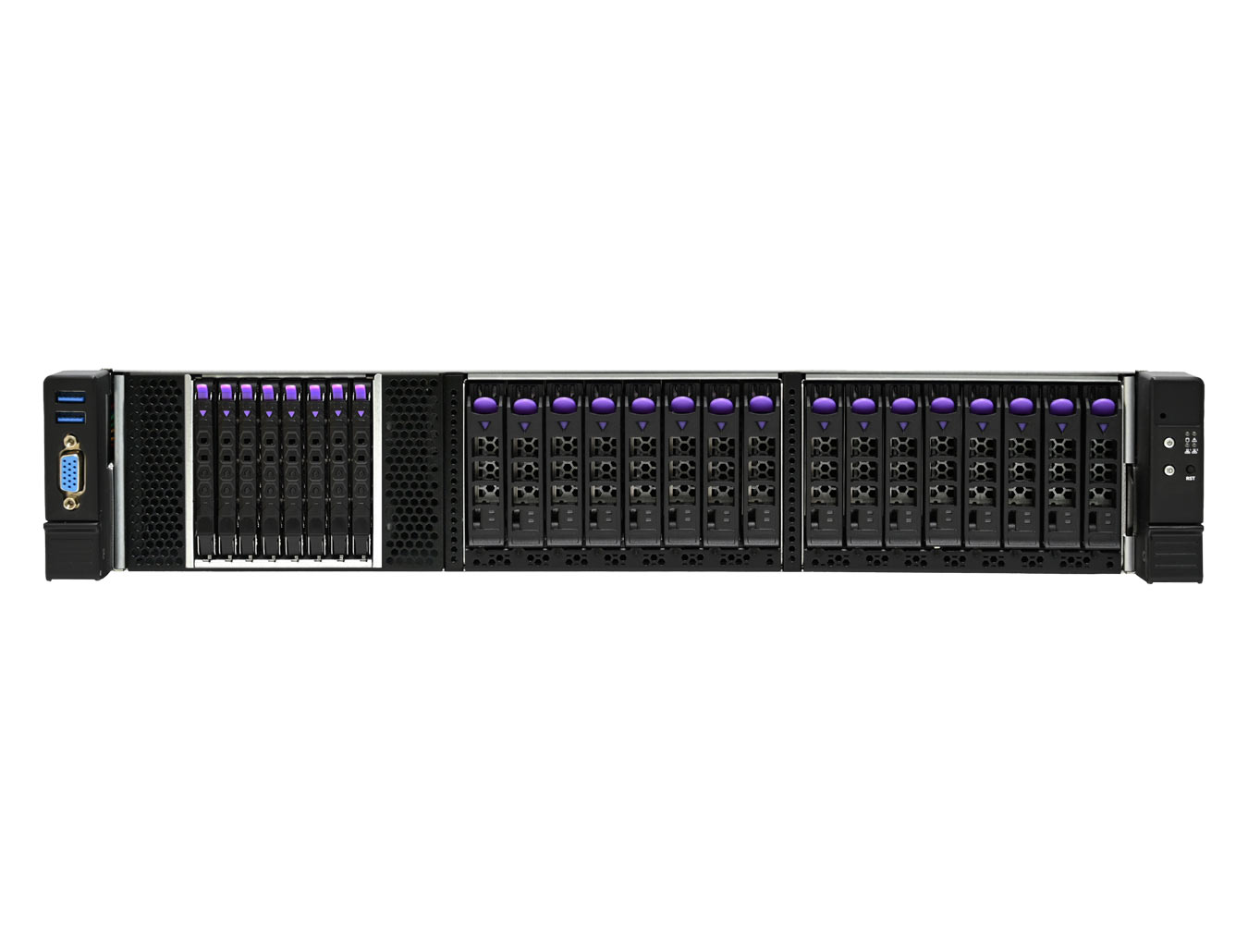

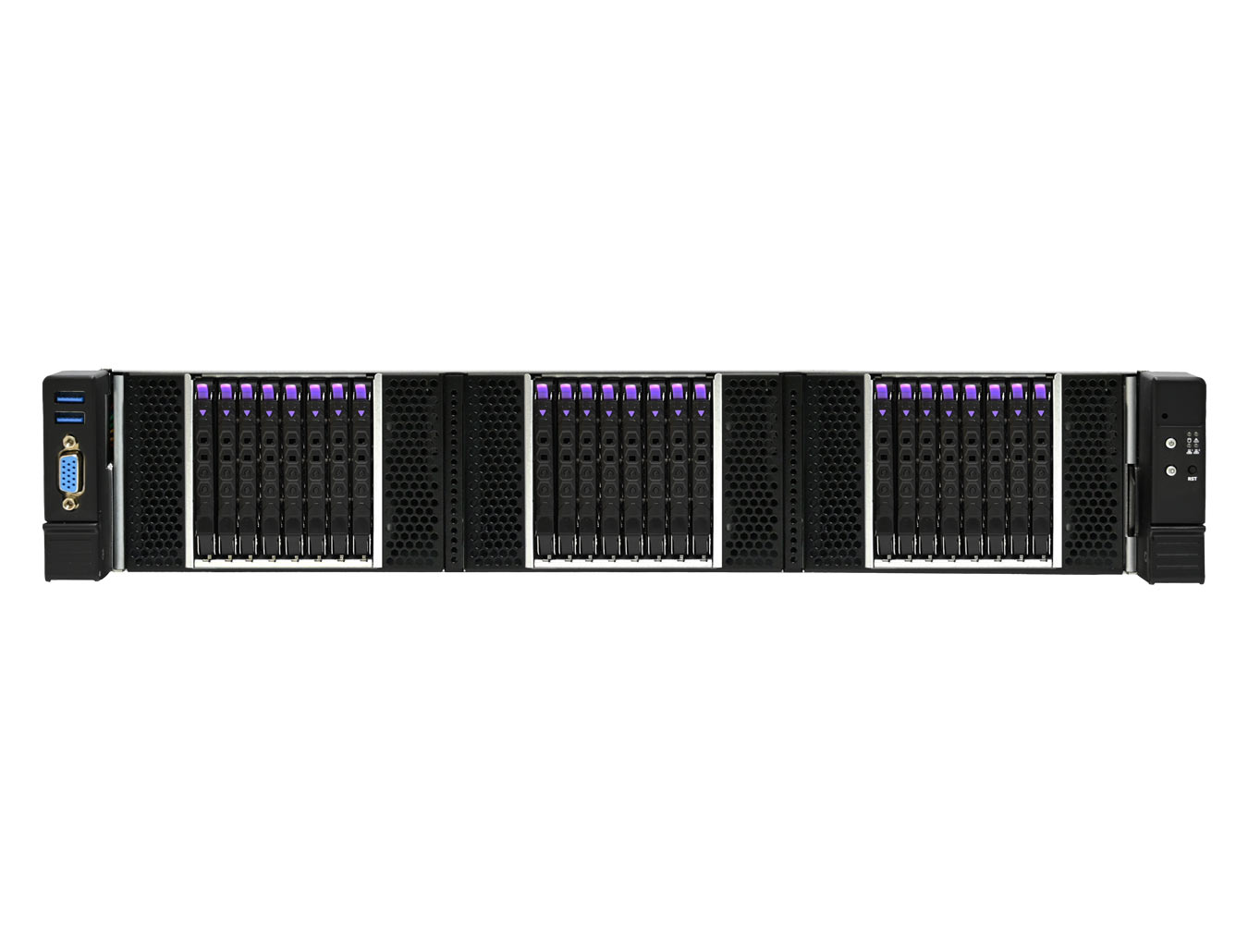

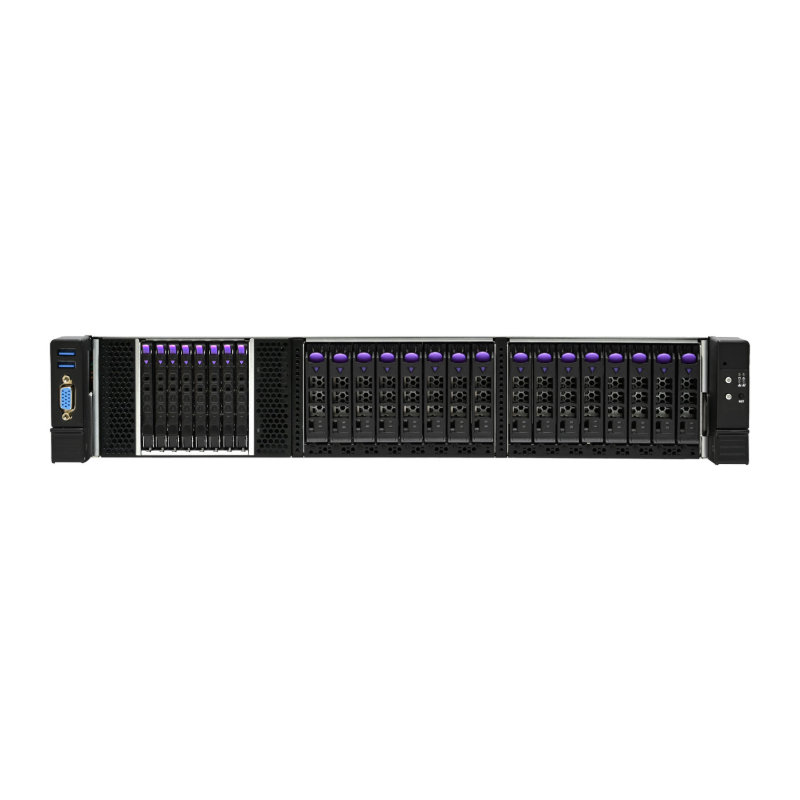

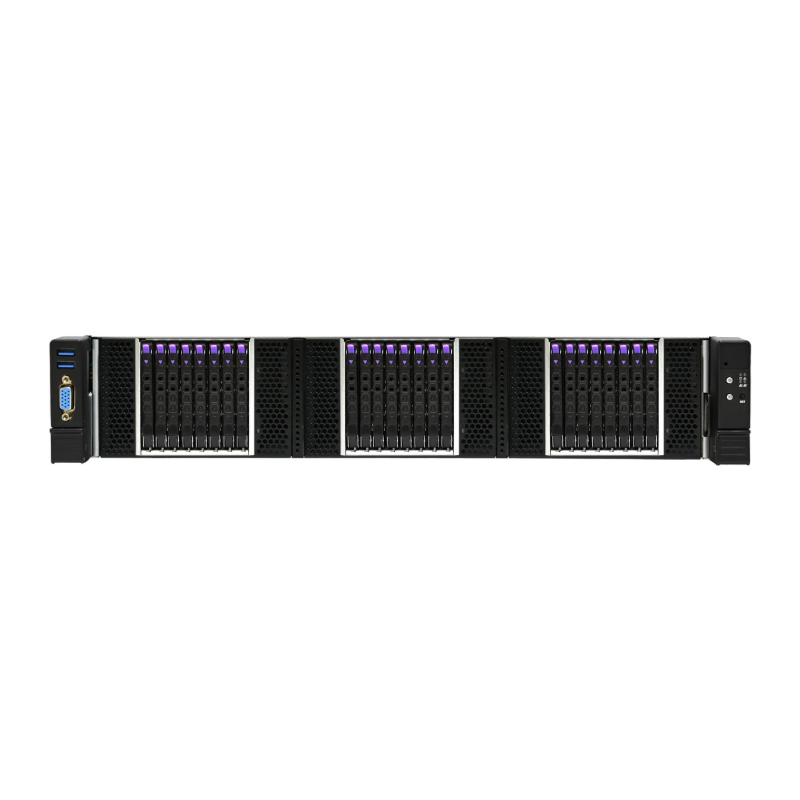

  • External: 24 x U.2 front PCIe Gen5 bays (XP1-S201SU04); Options：; 24 x E3.S front PCIe Gen5 bays (XP1-S201SU08); 8 x E3.S with 16x U.2 front PCIe Gen5 bays (XP1-S201SU07)
  • Internal: 2 × M.2 2280/22110 (PCIe Gen5 x 4)

Backplane

  • Front Options:; 3 x 8-port Tri-mode NVMe/SAS/SATA PCIe Gen5; 3 x 8-port E3.S Gen5 NVMe (Option); Rear Options:; 1 x 2-port 2.5” SAS/SATA; 1 x 2-port 2.5” Tri-mode + 1 x 2-port 2.5” SAS/SATA

Expansion Slots

  • 2 x PCIe 5.0 X16 FHHL/HHHL + 1 x OCP 3.0; Riser Card (included):; 1 x RC-PE2U26-TY; 1 x RC-PE2U27-TY

System Bios

  • Bios Type: AMI UEFI BIOS
  • Bios Features: ACPI; PXE; WOL; AC loss recovery; IPMI 2.0 KCS mode interface; SRIOV; SMBIOS; TPM; Serial console redirection; PCIe hotplug

On Board

  • Devices: SATA :; 2 x SATA3 7-pin by ASM1062R (support RAID 0/1); 12 x SATA3 by 3 x Mini-SAS connectors (power by ASM1164)
  • Devices BMC: Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor; Baseboard Management Controller; Intelligent Platform Interface 2.0 (IPMI 2.0); iKVM, Media Redirection, IPMI over LAN, Serial over LAN; HTML5; Redfish
  • Devices Network Controllers: Realtek RTL8211FS 1GbE for BMC dedicated management port; 2 x Intel® I210 GbE ethernet controller
  • Devices Graphics: Integrated VGA support by ASPEED AST2600; Resolution up to 1920x1200 @60Hz 32bpp

Rear I/O

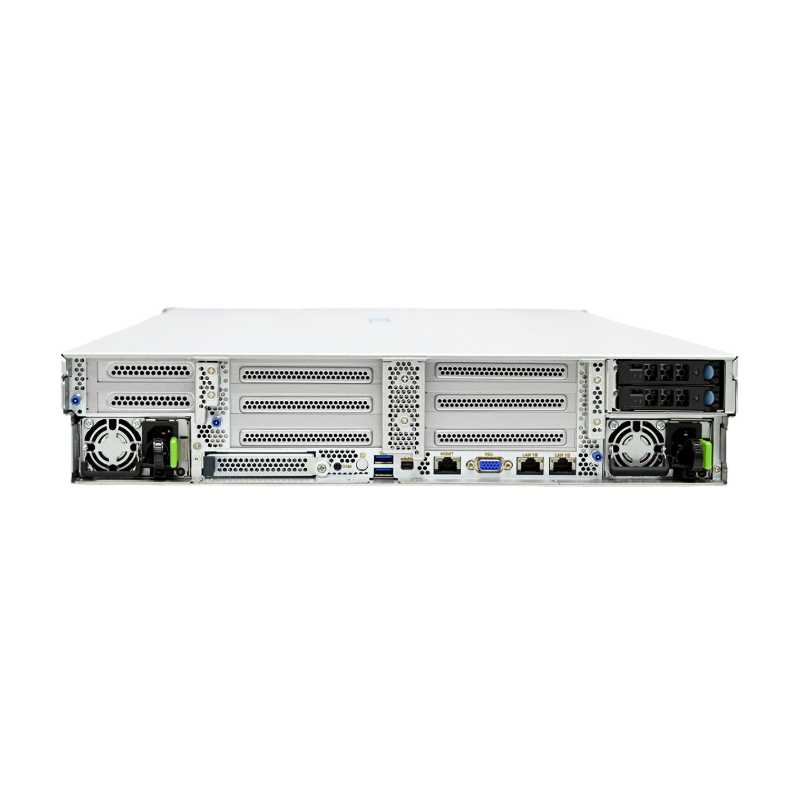

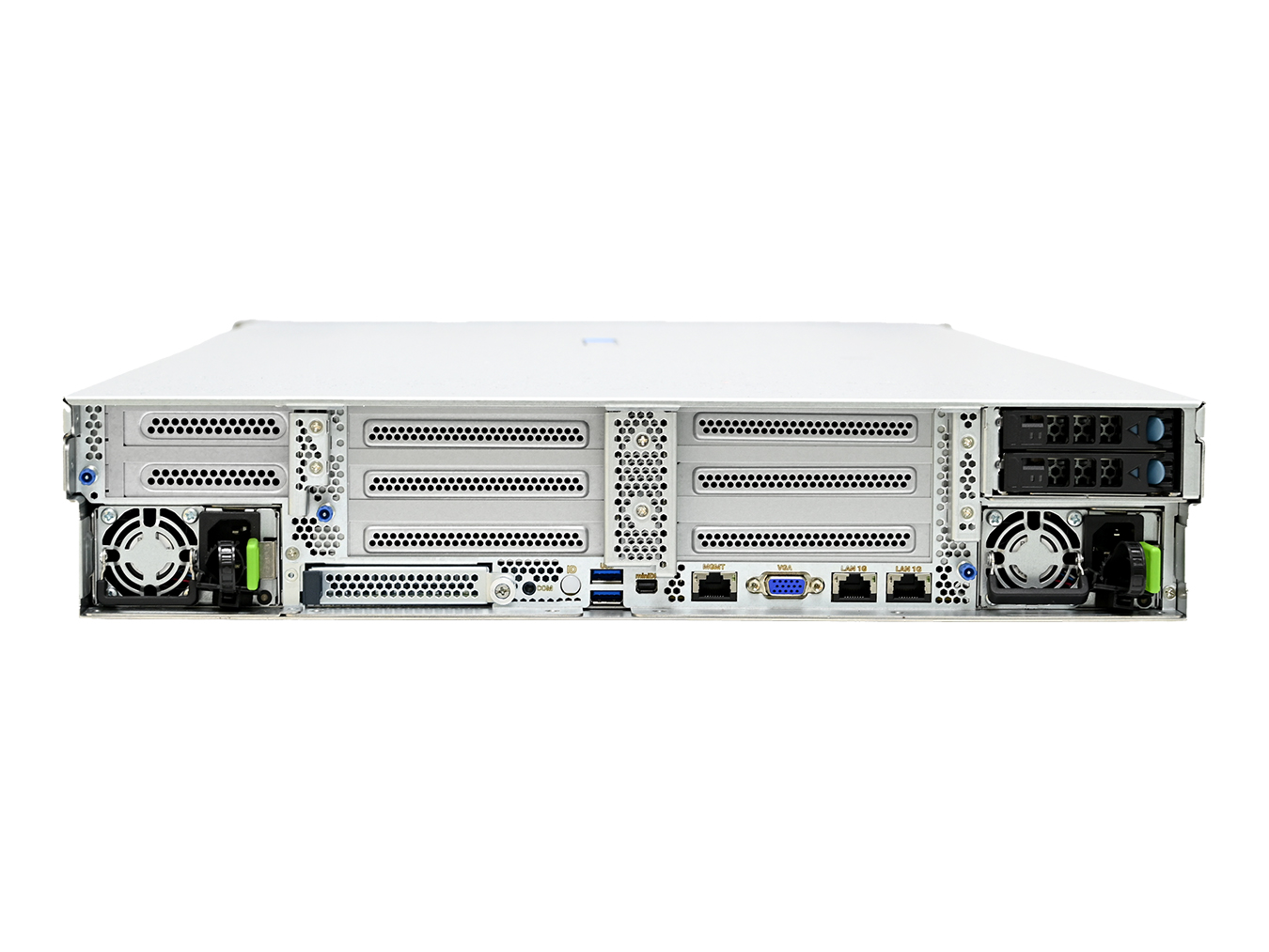

  • LAN: 2 x RJ45 connectors for dual port GbE; 1 x RJ45 connector (for BMC management port)
  • USB: 2 x USB 3.2 Gen 1 Type A
  • Video Output: 1 x DB-15 VGA connector; 1 x Mini display port
  • Serial Port: 1 x COM connector (Audio Jack)

Power Supply

  • 2000W/2400W 1+1 CRPS 80+ Titanium by CPU/NVMe supporting wattage SKU options

System Cooling

  • 4 x 80x56mm hot swap fans

System Management

  • Intelligent Platform Interface 2.0 (IPMI 2.0); iKVM, Media Redirection, IPMI over LAN, Serial over LAN; HTML5, Redfish; System Management Features:; KVM over IP; Temperature, fan, voltage, PSU sensor monitor; System temperature; System ID / System fail indicator; Remote power on/off/reset; SEL message alarm through mail; SNMP support

Environmental Specifications

  • Storage temperature: -10°C(14°F) ~ 60°C(140°F); Operating temperature: 0°C(32°F) ~ 35°C(95°F); Storage operating humidity: 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

  • kgs: 25
  • lbs: 55

Packaging Dimensions (W x D x H)

  • mm: 615 x 1155 x 328
  • inches: 24.2 x 45.5 x 12.9

Mounting (Standard)

  • 36" tool-less slide rail

Datasheet

Product Images

AVL

User's Manual

SKU: XP1-S201SU04

2U 24-bay 2.5” hot-swap, 3x PCIe Gen5 NVMe 8-port backplane, 4x 8056 FAN, Acbel 2000W redundant power supply Titanium (C14 inlet), Sirius motherboard, DDR5 RDIMM x32, 1x GbE dedicate IPMI, 2x PCIe x16 Gen5 (FHHL), 1x OCP 3.0 x16 Gen5, 2x CPU heatsink, 36" slide rail, w/o bezel

SKU: XP1-S201SU07

2U 8 E3.S with 16 U.2 NVME/SAS/SATA PCIE GEN5, REAR 2 X 2.5 SATA/SAS WITH 2000W PSU TITANIUM, 4x 8056 fan, Sirius motherboard, DDR5 RDIMM x32, 1x GbE dedicate IPMI Port, Dual GbE LANs, 2x PCIe x16 Gen5 (FHHL), 1x OCP 3.0 x16 Gen5, 2x CPU Heatsink, 36” slide rail, w/o bezel

SKU: XP1-S201SU08

2U 24 E3.S, REAR 2 X 2.5 SATA/SAS WITH 2000W PSU TITANIUM, 4x 8056 fan, Sirius motherboard, DDR5 RDIMM x32, 1x GbE dedicate IPMI Port, Dual GbE LANs, 2x PCIe x16 Gen5 (FHHL), 1x OCP 3.0 x16 Gen5, 2x CPU Heatsink, 36” slide rail, w/o bezel
