Key Features
• 2U general purpose storage server supports 24 hot-swap 2.5” universal NVMe U.2 drive bays
• Supports 3rd Gen. Intel® Xeon® Scalable processors (codename Ice Lake)
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions
• Dedicated BMC management port
Key Features
• 2U general purpose storage server supports 24 hot-swap 2.5” universal NVMe U.2 drive bays
• Supports 3rd Gen. Intel® Xeon® Scalable processors (codename Ice Lake)
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions
• Dedicated BMC management port
| Dimensions (W x D x H) | ||
| • mm : 438 x 800 x 88 • inches : 17.2 x 31.4 x 3.1 |
||
| Motherboard | ||
| Code Name - A6 | ||
| Processor | ||
| Processor Support : 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake) *Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. |
||
| UPI Speeds: 11.2GT/s | ||
| Socket Type : 1+1 Socket P+ (LGA-4189) | ||
| Chipset Support | ||
| Intel® C621A | ||
| System Memory | ||
| 32 x DDR4 3200Mhz • Total 16+16 DIMM slots (2DPC) • Up to 12TB 3DS ECC RDIMM/LRDIMM • Intel® Optane™ Persistent Memory 200 Series support |
||
| Front Panel | ||
| • System power on/off • System reset • System ID |
||
| LEDs | ||
| Power LED, ID LED, Fail LED: • Power (Secondary) • Warning B: • Power (Primary) • Warning |
||
| Drive Bays | ||
| • External : 24 x 2.5” hot swap Gen4 NVMe **Please contact AIC for front 2.5” SAS/SATA device supporting request. 2 x 2.5" (rear) • Internal : 1 x M.2(NGFF)/M-Key/2280(SATA/PCIe) |
||
| Backplane | ||
| 3 x 8-port SATA/SAS/NVMe with 2 x SFF-8643 2 x SFF-8654 (Slimline 8i) connectors on each backplane |
||
| Expansion Slots (PCIe 4.0) | ||
| • 1 PCIe 4.0 x16 • 1 OCP 3.0 (PCIe x16 width) |
||
| Riser Card (included) | ||
| 2U2S_RB24_G4 x2 : 1 x16 + 1 x8 PCIe slots | ||
| System BIOS | ||
|
BIOS Type : |
||
| BIOS Features : • ACPI • PXE • AC loss recovery • IPMI KCS interface • SMBIOS • Serial console redirection • BIOS Boot Specification • BIOS Recovery Mode |
||
| On-board Devices | ||
| SATA : Intel® Lewisburg PCH on-chip solution • 14 x SATA 6.0 Gb/s (3 Mini-SAS HD, SATA DOM, SATA DOM or M.2) • RAID 0, 1, 5, 10 support by Intel RSTe |
||
| IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support • HTML5 • Redfish |
||
| Network Controller : • Networking options provided via OCP Mezzanine extension |
||
| Graphics : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • PCIe VGA/2D Controller • 1920x1200@60Hz 32bpp |
||
| Rear I/O | ||
|
||
| Power Supply | ||
| 1600W 1+1 redundant power supply 80+ Platinum • AC Input : 100~240V,50/60Hz,7-3.5A |
||
| System Cooling | ||
| 6 x 60x38mm easy swap fans | ||
| System Management | ||
| • IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support |
||
| Environmental Specifications | ||
| • Storage temperature: -10°C(14°F) ~ 60°C(140°F) • Operating temperature: 0°C(32°F) ~ 35°C(95°F) • Storage operating humidity: 5%~95% non-condensing |
||
| Gross Weight (w/PSU & Rail) | ||
| • kgs : 20 • lbs : 44 |
||
| Packaging Dimensions (W x D x H) | ||
| • mm : 595 x 1115 x 239 • inches : 23.4 x 43.9 x 9.4 |
||
| Mounting | ||
| Standard : 28" tool-less slide rail |
| SKU Information | Description |
|---|---|
|
XP0-9Q21A6XX (Standard) |
2U 24x 2.5" NVMe, 2x 2.5" SATA hot-swap, 6x 6038 fan, Acbel 1600W redundant power supply platinum, AIC A6 motherboard, DDR4 RDIMM x32, Intel PCH C621A, WATX, dedicated 1GbE BMC, AST2500, 1x PCIe x16 FHHL Gen.4, 1x OCP 3.0 x16 Gen.4, 2x CPU heatsink (270W), 28" slide rail, w/o bezel |
* All specifications are subject to change without notice.
| Datasheet | SB201-A6 Datasheet |
|
|
|
| Product Images | SB201-A6 (Front 45 Degrees) |
| Product Images | SB201-A6 (Front) |
|
|
|

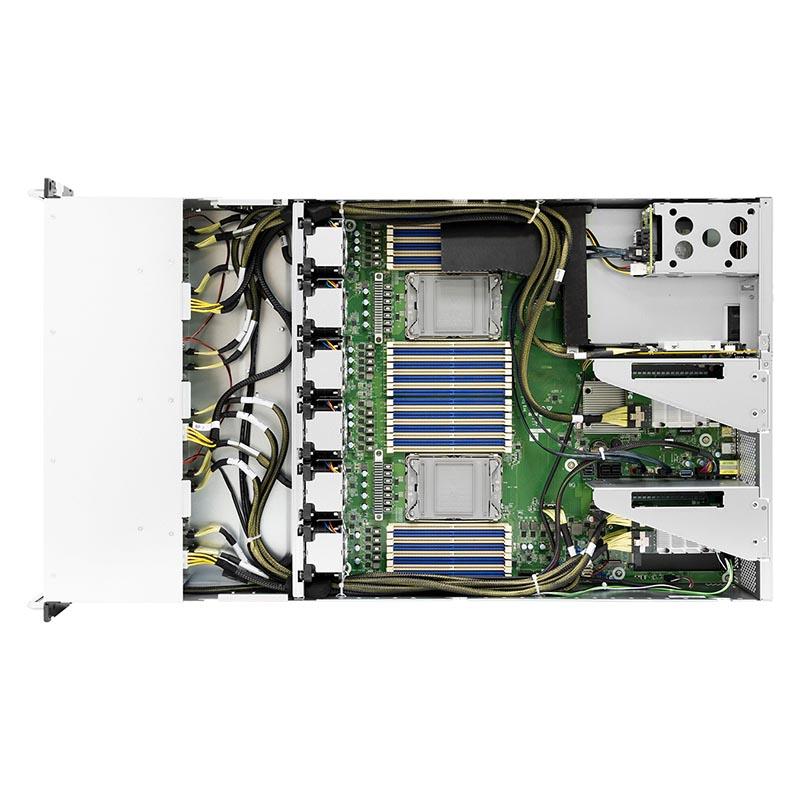

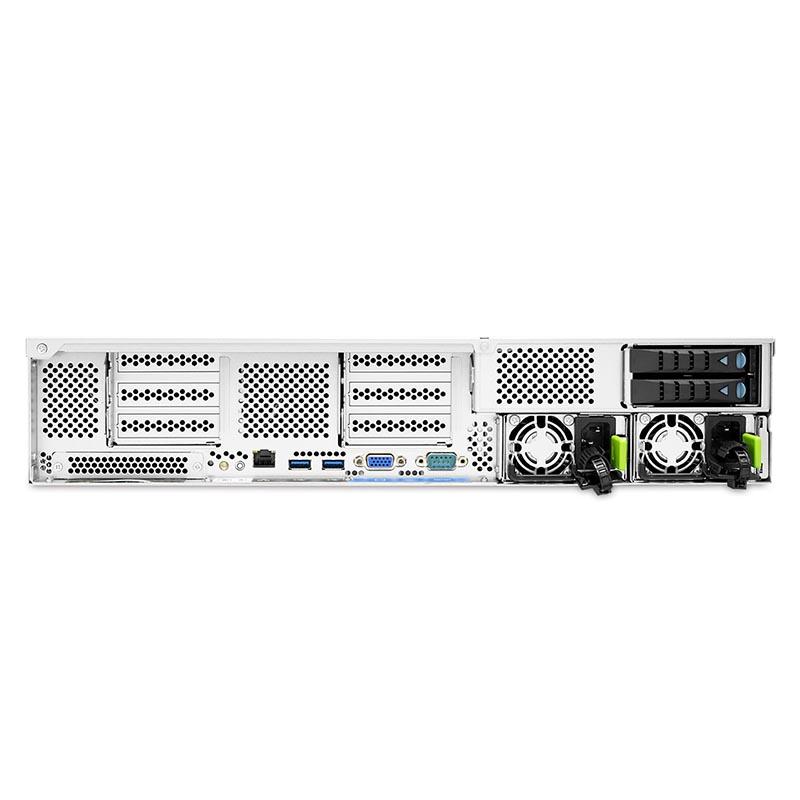

| Product Images | SB201-A6 (Top&Rear) |
| User Manual/AVL | SB201-A6 |
