Key Features
• 2U 4-Node hybrid storage server supports 12 hot swap 3.5” SATA/SAS drive bays
• Supports 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids)
• Maximizing the use of the processor, memory, and add-on cards in one single system
• Onboard Baseboard Management Controller for system management and IPMI control
• 3 x PCIe X16 extensions on each node
• Front-to-back airflow and easy swap redundant fans to provide optimal thermal conditions
Key Features
• 2U 4-Node hybrid storage server supports 12 hot swap 3.5” SATA/SAS drive bays
• Supports 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids)
• Maximizing the use of the processor, memory, and add-on cards in one single system
• Onboard Baseboard Management Controller for system management and IPMI control
• 3 x PCIe X16 extensions on each node
• Front-to-back airflow and easy swap redundant fans to provide optimal thermal conditions
| Dimensions (W x D x H) | |||
| • mm : 438 x 850 x 87 • inches : 17.2 x 33.5 x 3.4 |
|||
| Motherboard | |||
| Code Name - Kratos | |||
| Processor | |||
| Processor Support : • Intel® next Gen Sapphire Rapids–SP/ Emerald Rapids-SP Family Processors *Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. |
|||
| CPU Interconnection: 12.8, 14.4, and 16GT/s | |||
| Socket Type : 2 x Socket E2: 4677 pins | |||
| Chipset Support | |||
| Intel® Emmitsburg PCH | |||
| System Memory (per node) | |||
| • 8 x DDR5 memory channels per CPU • 16 x DIMM slots (1xDPC), 4800/5600 MTs |
|||
| Front Panel (per node) | |||
| Power on/off button | |||
| LEDs (per node) | |||
| Power LED / Alert LED / UID LED | |||
| Drive Bays | |||
| External : • 12 x 3.5" hot-swap (3 x drives per node) |
|||
| Expansion Slots (PCIe 5.0) | |||
| • 2 x PCIe X16 slots (HHHL) • 1 x OCP 3.0 bay (PCIe X16 width) |
|||
| System BIOS | |||
|
BIOS Type: |
|||
| BIOS Features : • ACPI • PXE • WOL • AC loss recovery • BIOS recovery • IPMI 2.0 KCS mode interface • SRIOV • SMBIOS • TPM • Serial console redirection • PCIe hot plug |
|||
| On-board Devices | |||
| SATA : • 2 SATA 7-pin (SATA 6Gb/s) • 6 SATA to front edge connector (SATA 6Gb/s) |
|||
| BMC : Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • HTML5 • Redfish • SMASH Support |
|||
| Network Controllers : • Realtek RTL8211F GbE PHY for dedicated management port • Intel i210 GbE NIC for shared management port |
|||
| Graphics : Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • PCIe Graphic/2D Controller • 1920x1200@60Hz 32bpp |
|||
| Rear I/O | |||
|
|||
| Power Supply | |||
| 2400W/3000W 1+1 CRPS 80+ Platinum | |||
| System Cooling | |||
| 4 x 80x80mm easy swap fans | |||
| Environmental Specifications | |||
| • Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) • Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) • Storage operating humidity : 5%~95% non-condensing |
|||
| Gross Weight (w/PSU & Rail) | |||
| • kgs : 45 • lbs : 99.2 |
|||
| Packaging Dimensions (W x D x H) | |||
| • mm : 585 x 1200 x 284 • inches : 23 x 47.2 x 11.2 |
|||
| Mounting | |||
| Standard : 32.64" tool-less slide rail |
* All specifications are subject to change without notice.
| Datasheet | HP202-KT Datasheet |
| Product Images | HP202-KT (Front 45 Degrees) |
|
|
|

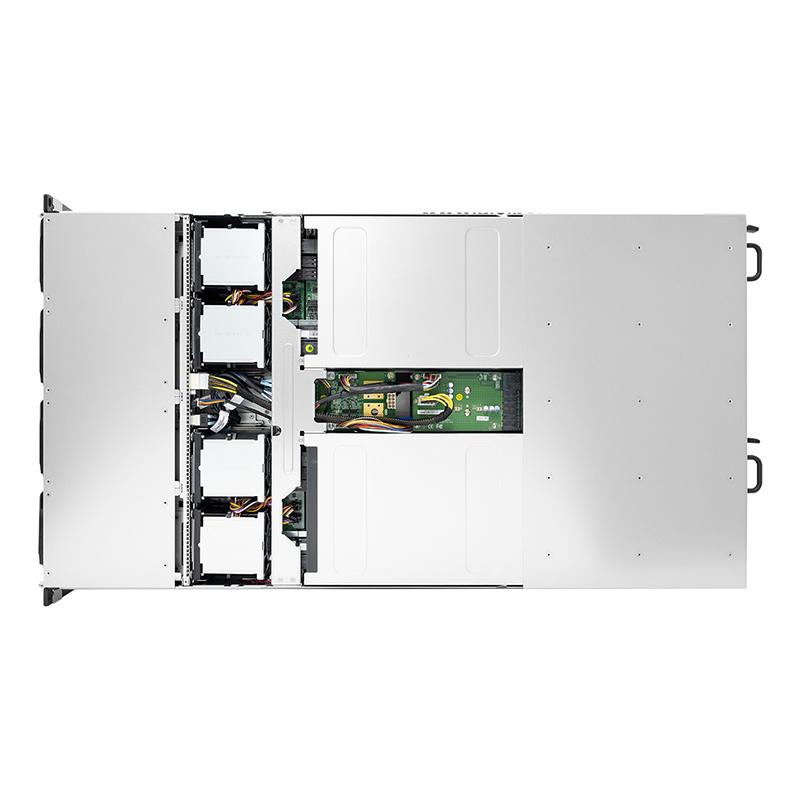

| Product Images | HP202-KT(Front&Top) |
| Product Images | HP202-KT(Rear) |
| Product Manual/AVL/Firmware | HP202-KT |
|
|
