Key Features
• Ruggedized design (Internal board to board connection)
• Tool-less design
• Hot-swap expander modules, drives, PSU, fans
• Short-depth
• Clear front panel LED indicators
• Optimized thermal solution
• BMC onboard

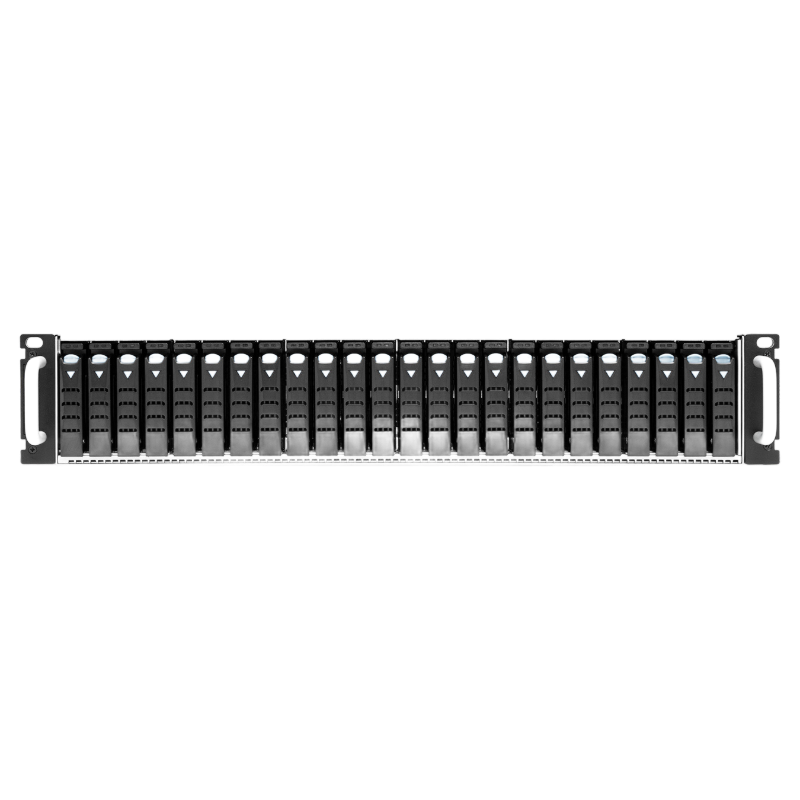

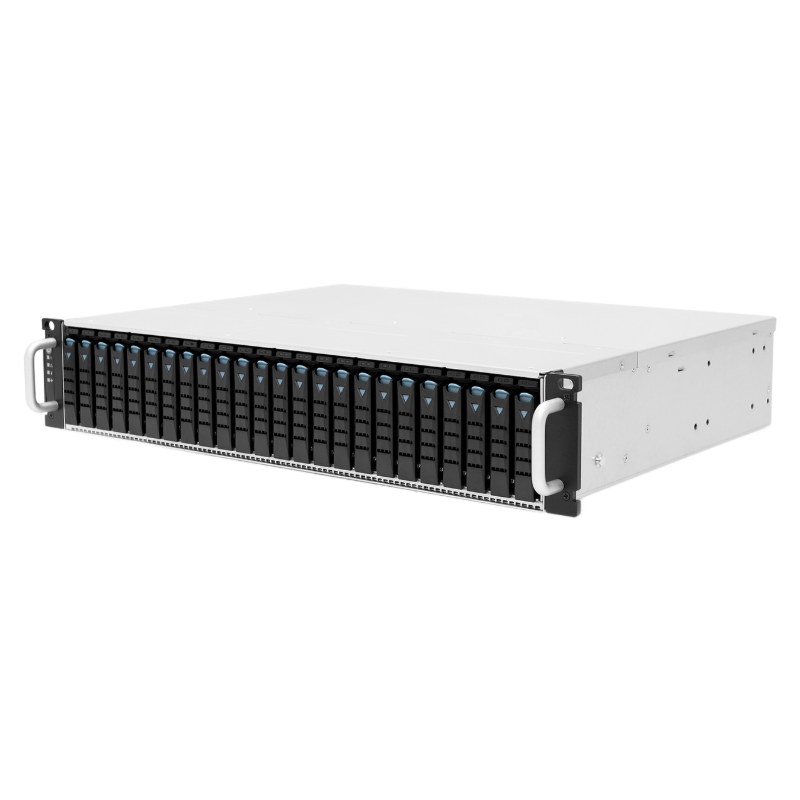

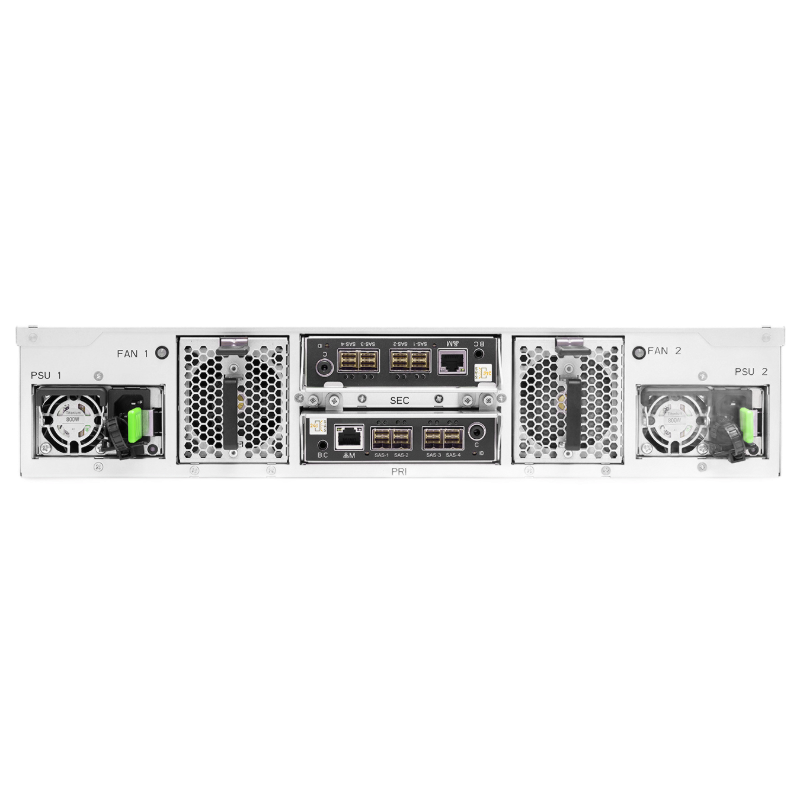

J2024-07-04X is an innovative 2U24 JBOD that integrates 2.5" SAS (24G/12G, dual) / SATA (6G, single) disk drive, Broadcom SAS4X-Series expander chip, and board-to-board connection design into a compact and stable system with exceeding productivity.
Key Features
• Ruggedized design (Internal board to board connection)
• Tool-less design
• Hot-swap expander modules, drives, PSU, fans
• Short-depth
• Clear front panel LED indicators
• Optimized thermal solution
• BMC onboard
| General |
| Number of Expander: Single |
| Expander Chip: LSI SAS4X40 |
| Host/Expansion Interface: 4 x Mini SAS HD (SFF-8674) per expander module (can be only up to 12G if backward compatibility with SFF-8644) |
| Drives Supported |
| Drive Interface : • 24Gb &12Gb SAS if using dual expanders • 24Gb &12Gb & 6Gb SAS/SATA if using single expander |
| Form Factor: SFF 2.5” |
| Administration / Management |
| Admin/Firmware Upgrade: • In-band & Serial port interface • IEM port |
| LED Indicators, Audible Alarm: Yes |
| Hot swap & Redundancy |
| Drive Bays: 24 hot swap |
| Cooling: 2 x 60x56mm hot swap fans |
| Power Supply: • 800W 1+1 hot swap redundant power supply 80+ Platinum • 800W 1+1 hot swap redundant power supply 80+ Titanium |
| Power Entry: Dual AC Inlet |
| Expander Modules: Dual expanders (Optional) |
| Electrical & Environment |
| Universal A/C Input: • 100~127V~,50/60Hz, 7.0A • 200~240V~,50/60Hz, 3.5A |
| Operating Environment: • Temperature : 0ºC to 35ºC • Relative humidity: 20% to 80% |
| Non-operating Environment: • Operating altitude condition : 0 ~ 10K ft • Storage temperature : -20° ~ 60°C • System relative humidity: 10% - 90% |
| Physical Specification |
| Dimensions (W x D x H): • mm: 438 x 345 x 87.5 • inches: 17.2 x 13.6 x 3.4 |
| Gross Weight (w/ PSU, Rail and Pallet; w/o Disks): • kgs: 20.05 • lbs: 44.2 |
| Packaging Dimension (W x D x H): • mm: 605 x 640 x 318 • inches: 23.8 x 25.2 x 12.5 |
| Mounting: • Option: 20” tool-less rail |
| 2U 24x 2.5” hot-swap bays, hot-swap JBOD with single SAS 24G expander controller, single BMC, tool-less HDD tray,800W 1+1 hot-swap redundant 80+ Platinum, tool-less rail kit (4X series) | |
| XJ1-20247-02 | 2U 24x 2.5” hot-swap bays, hot-swap JBOD with dual SAS 24G expander controller, dual BMC, tool-less HDD tray,800W 1+1 hot-swap redundant 80+ Platinum, tool-less rail kit (4X series) |
| XJ1-20247-03 | 2U 24x 2.5” hot-swap bays, hot-swap JBOD with single SAS 24G expander controller, single BMC, tool-less HDD tray,800W 1+1 hot-swap redundant 80+ Titanium, tool-less rail kit (4X series) |
| XJ1-20247-04 | 2U 24x 2.5” hot-swap bays, hot-swap JBOD with dual SAS 24G expander controller, dual BMC, tool-less HDD tray,800W 1+1 hot-swap redundant 80+ Titanium, tool-less rail kit (4X series) |
| FRU Parts | Description |
| M06-1339-012 | 6056 fan module with packing (24 pcs in packing) |
| M06-1339-020 | Expander module with packing (12 pcs in packing) |
| M06-00976-32 | Front door without packing |
| PM-A00000117 | 800W redundant power supply module(80+ Platinum) |
| PM-A00000132 | 800W redundant power supply module(80+ Titanium) |
| H5541S100002 | 2U slide rail GSLIDE-4101-42 |
| M06-1355-002 | Adjustable plate (support rack post: 400-500mm) |
| M06-1339-019 | Expander dummy cover with packing (20 pcs in packing) |
* All specifications are subject to change without notice.
| Ordering Information | Description |
| XJ1-20247-01 | 2U 24x 2.5” hot-swap bays, hot-swap JBOD with single SAS 24G expander controller, single BMC, tool-less HDD tray,800W 1+1 hot-swap redundant 80+ Platinum, tool-less rail kit (4X series) |
| XJ1-20247-02 | 2U 24x 2.5” hot-swap bays, hot-swap JBOD with dual SAS 24G expander controller, dual BMC, tool-less HDD tray,800W 1+1 hot-swap redundant 80+ Platinum, tool-less rail kit (4X series) |
|
XJ1-20247-03 (Standard) |
2U 24x 2.5” hot-swap bays, hot-swap JBOD with single SAS 24G expander controller, single BMC, tool-less HDD tray,800W 1+1 hot-swap redundant 80+ Titanium, tool-less rail kit (4X series) |
| XJ1-20247-04 | 2U 24x 2.5” hot-swap bays, hot-swap JBOD with dual SAS 24G expander controller, dual BMC, tool-less HDD tray,800W 1+1 hot-swap redundant 80+ Titanium, tool-less rail kit (4X series) |
