Key Features
• 2U all-flash server solution
• 24 x 2.5” front NVMe hot-swappable bays and 2 x 2.5” rear SATA hot-swappable bays
• Supports dual 4th Gen Intel® Xeon® Scalable Processors (codename: Sapphire Rapids)
• 32x DDR5 RDIMM and 4x PCIe Gen5 extensions
Preliminary
SB201-HK, a 2U all flash server solution, supports dual 4th Gen Intel® Xeon® Scalable Processors (codename Sapphire Rapids), 32x DDR5 RDIMM, and 4x PCIe GEN5 extensions. SB201-HK has 24 x 2.5” (front)NVMe and 2x2.5" SATA(rear) hot-swappable bays to provide highest storage density and optimized performance for the applications.
Key Features
• 2U all-flash server solution
• 24 x 2.5” front NVMe hot-swappable bays and 2 x 2.5” rear SATA hot-swappable bays
• Supports dual 4th Gen Intel® Xeon® Scalable Processors (codename: Sapphire Rapids)
• 32x DDR5 RDIMM and 4x PCIe Gen5 extensions
| Dimensions (W x D x H) | |||
| • mm : 438 x 800 x 87.5 • inches : 17.2 x 33.5 x 3.5 |
|||

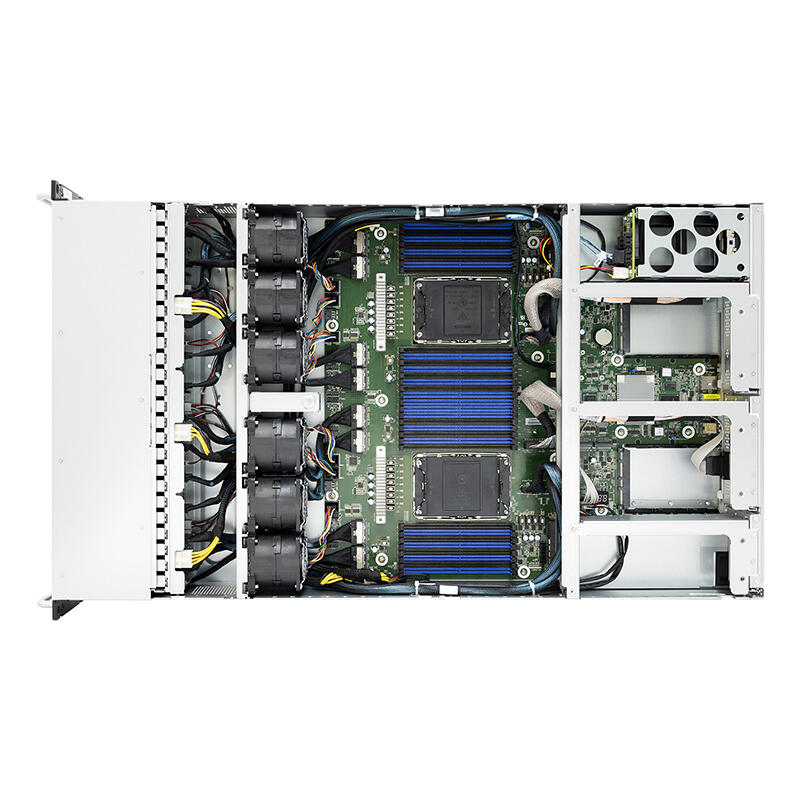

| Motherboard | |||
| AIC Server Board - HK | |||
| Processor | |||
| Processor Support : • Intel® Next Gen Sapphire Rapids–SP/Emerald Rapids-SP Family Processors • Supports CPU TDP 225W/350W *Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. |
|||
| CPU Interconnection: 12.8, 14.4, and 16GT/s | |||
| Socket Type : E2: 4677 pins | |||
| Chipset Support | |||
| Intel® Emmitsburg PCH | |||
| System Memory | |||
| • 16 x DDR5 memory channels per CPU • 32 x DIMM slots (2 DPC), 4800/5600 MTs |
|||

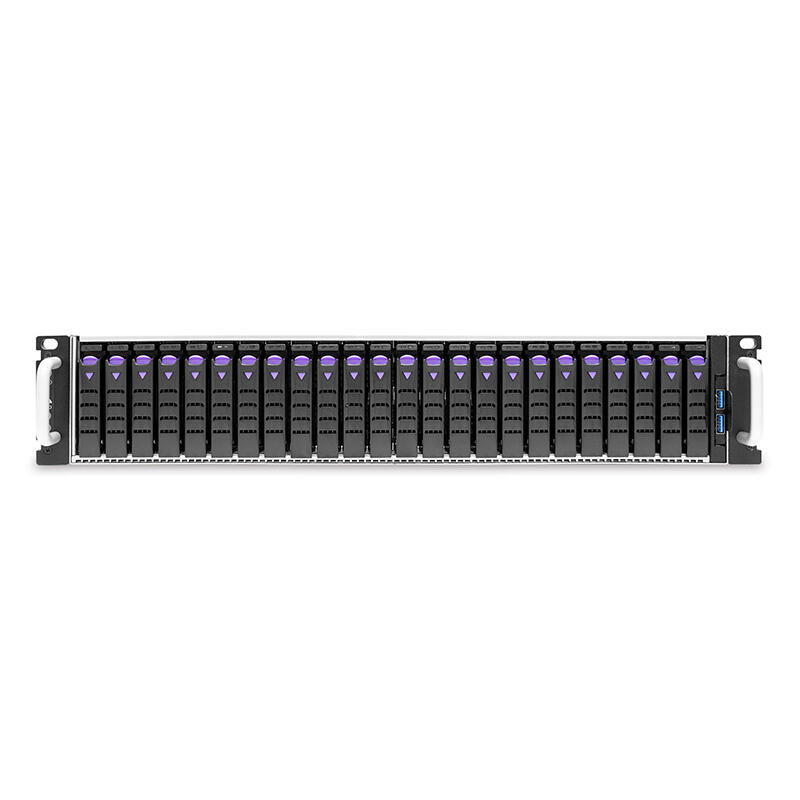

| Front Panel | |||
| • 1 x System power on/off button/LED • 1 x System reset button • 1 x System ID button/LED • 1 x System alert (BMC) • 2 x USB 3.0 |
|||
| Drive Bays | |||
| External : • 24 x 2.5" hot swap (PCIe 5.0 U.2 NVMe) Internal : • 2 x M.2/NGFF-M ( M-Key / 2280 PCH native SATA+PCIe x4 ) |
|||
| Expansion Slots (PCIe 5.0) | |||
| • 2 x PCIe X16 slots (FHHL) (Reserve GPU card support retention mechanical bracket) • 2 x OCP 3.0 bays (PCIe X16 width) |
|||
| System BIOS | |||
|
BIOS Type: |
|||
| BIOS Features : • ACPI • PXE • WOL • AC loss recovery • BIOS recovery • IPMI 2.0 KCS mode interface • SRIOV • SMBIOS • TPM • Serial console redirection • PCIe hot plug |
|||
| On-board Devices | |||
| SATA : Intel® Emmitsburg PCH on-chip solution • 8 x SATA 6.0 Gb/s by slimline X8 • 2 x M.2 • 2 x SATA 6.0 Gb/s (by 2x SATA 7P) |
|||
| BMC : Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • HTML5 • Redfish • SMASH Support |
|||
| Network Controllers : Realtek RTL8211EL for BMC dedicated management port |
|||
| Graphics : Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • PCIe Graphic/2D Controller • 1920x1200@60Hz 32bpp |
|||

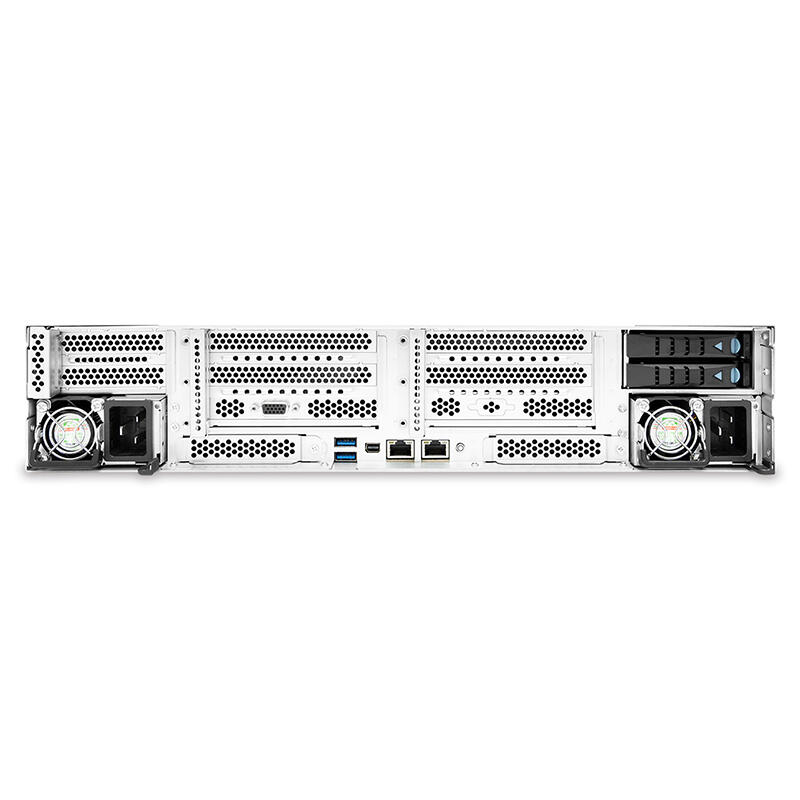

| Rear I/O | |||
|
|||
| Power Supply | |||
| • 2000W 1+1 CRPS RPSU 80+Titainum by CPU/NVMe supporting wattage SKU options |
|||
| System Cooling | |||
| 6 x 60x56mm easy swap fans ABS material plastic air-duct (clear) | |||
| Environmental Specifications | |||
| • Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) • Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) • Storage operating humidity : 5%~95% non-condensing |
|||
| Gross Weight (w/PSU & Rail) | |||
| • kgs : 29 • lbs : 63.9 |
|||
| Packaging Dimensions (W x D x H) | |||
| • mm : 605 x 1210 x 320 • inches : 23.6 x 47.6 x 12.5 |
|||
| Mounting | |||
| Standard : 28" tool-less slide rail |
* All specifications are subject to change without notice.
