Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Supports power cycling on single drive
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• One front access USB 3.0 port
IPC-C2ETS-R55-EOB-12G-PCI is a T series 2U 12-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C2ETS-R55-EOB-12G-PCI supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and shorter depth dimension, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Supports power cycling on single drive
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• One front access USB 3.0 port
| Dimensions (W x D x H) |
| • mm: 430 x 560 x 88 • inches: 17 x 22 x 3.5 |
| Industry Standard |
| EIA-RS310D |
| Material |
| Heavy-duty preplated SPGC cold-rolled steel |
| Color |
| Front Panel: Black |
| Cooling |
| 3 x 80x38mm PWM & low-power consumption hot swap fans |
| Power Supply |
| 550W 1+1 redundant power supply PMBus 1.2 80+ Platinum |
| Expansion Slots |
| 7 low-profile |
| Front Panel |
| • System power on/off • System reset • 1 x USB 3.0 port |
| LED Indicators |
| • Power • LAN • Drive • Alert |
| System Board |
| 12”(W) x 9.6”(D) ATX |
| Drive Bays |
| External : • 12 x 3.5” hot swap Options : • 2 x 2.5” (7mm) hot swap • 1 x 2.5” (15mm) internal |
| Backplane |
| Options : • 1 x 12-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors • 1 x 12-port SATA/SAS backplane with 3 x SFF-8643 connectors |
| Storage Temperature |
| 0°C(32°F) ~ 50°C(122°F) |
| Humidity |
| 5% ~ 95% non-condensing |
| Gross Weight (w/ PSU & Rail) |
| • kgs: 23.5 • lbs: 51.8 |
| Package Dimension (W x D x H) |
| • mm: 645 x 835 x 224 • inches: 25.4 x 32.9 x 8.8 |
| Cubic Feet |
| 5.38 |
| Container Load Quantity |
| • 20’: 200 • 40’: 420 • 40’ H: 450 |
| Mounting |
| Standard: 28” tool-less slide rail |
| SKU Information | Description |
|
XE1-2ETS0-01 (Standard) |
2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G expander controller on backplane (3X series) |
| XE1-2ETS0-02 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G passive backplane |
|
XE1-2ETS0-08 (Standard) |
2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G expander controller on backplane (35X series) |
|
||
| Part Number | Description | |
| FC-000000093 | 8038 fan module | |
| H5521T200007 | 26" tool-less slide rail | |
| BBPJHD20002A | 12 bay 12G EOB backplane | |
| PH-000000060 | 550W CRPS power supply housing | |
| PM-000000083 | 550W CRPS power supply module |
| M06-00128-33 | Suitable for RSC-2AT & RSC-2ET/RSC-2ETS(2ET DOOR ASS,Y) |
* All specifications are subject to change without notice.
| Datasheet | IPC-C2ETS-R55-EOB-12G Datasheet |
|
|
|
| Product Images | IPC-C2ETS-R55-EOB-12G (45 degree) |
|
|
|
| Product Images | IPC-C2ETS-R55-EOB-12G (Front) |
|
|
|

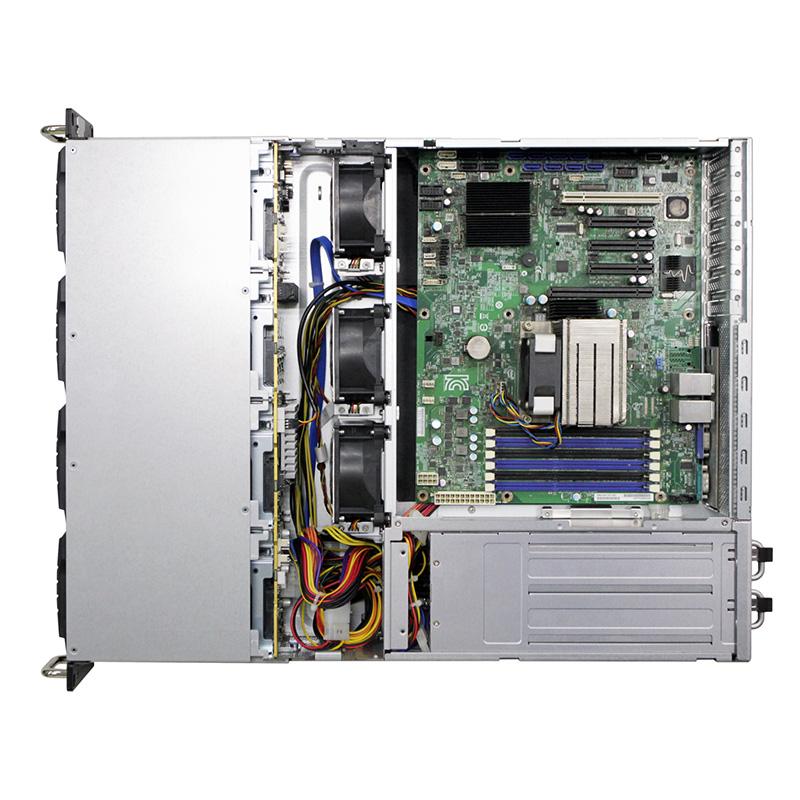

| Product Images | IPC-C2ETS-R55-EOB-12G (Top Open) |
|
|
|
| Product Images | IPC-C2ETS-R55-EOB-12G (Rear) |
|
|
|
| User Manual / Firmware | IPC-C2ETS-R55-EOB-12G |
|
|
