Purley 2U 12G 24x 2.5” SAS/SATA High-Density Storage Server, supports dual Intel® Xeon® Scalable Processors

PCICASE Model No: SB201-VG
Manufacturer Model No: SB201-VG
Please Call Sales
Key Features

• 2U 24-Bay high-density storage server barebone
• Supports two Intel® Xeon® Scalable Processors
• With Intel® Lewisburg C620 series Chipset to provide 5+ years product life cycle.
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions.
• Hot-swappable 24 x 2.5" drives
• High-efficiency power supply
• Two 10 GbE SFP+ ports



Features & Benefits

SB201-VG, a 2U 24x 2.5” SAS/SATA High-Density Storage Server, supports two Intel® Xeon® Scalable Processors. With 24 x 2.5" hot swap drive bays, 3 x 8038mm easy swap fans, and 1+1 redundant 80+ Platinum power supply, SB201-VG is optimized for both performance and power efficiency.

Dimensions (W x D x H) (with chassis ears)
• mm: 482.6 x 660 x 88.3
• inches: 19 x 26 x 3.5


Motherboard
AIC Server Board Virgo

Processor
Processor Support: Two Intel® Xeon® Scalable Processors
QPI Speeds: 9.6 GT/s, 10.4 GT/s
Socket Type: Socket P0 (LGA-3647 Socket)

Chipset Support
Intel® Lewisburg C620 series Chipset

System Memory
• DDR4 2666 ECC RDIMM
• Total 12 memory slots; 6 channel per CPU (1DPC)

Expansion Slots (PCIe 3.0)
• 2 x16 slot / 3 x8 slots
• 6 x SFF-8643 each supports NVMe PCIe x4
• 1 x NGFF (M.2) supports PCIe Gen 3 x4 / SATA

System BIOS
BIOS Type: Insyde BIOS
BIOS Features :
• ACP
• PXE
• WOL
• AC loss recovery
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV

On-board Devices
SATA/SAS:
• Lewisburg PCH on-chip solution
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS) + 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
• Broadcom SAS IOC SAS3008 supports up to 8 ports 12S SAS via 2 x SFF-8643 mini-SAS HD (optional)
IPMI:
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
Network Controllers:
• Intel® PCH (Lewisburg) Integrated 10GbE LAN Controller with dual 10GbE SFP+ + 2 x configurable ports support 10GbE (KR/SFI/XFI) or 1GbE (KX) (option)
• Realtek RTL8201EL for BMC dedicate management port
Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

Rear I/O
LAN:
• 2 x 10 G SFP+
• 1 x GbE RJ45 dedicated to BMC management
USB:
2 x USB 3.0 double-stack Type A
VGA:
1 x external VGA port
Serial Port:
1 x external DB-9 COM port

Power Supply
800W 1+1 redundant power supply 80+ Platinum
• 100-240VAC, 47-63 Hz

System Cooling
3 x 80x38mm easy swap fans

System Management
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote Power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM
• HTML5
• Redfish

Environmental Specifications
• Operating Temperature: 0° - 35°C
• System relative humidity : 5% - 95% non-condensing

Gross Weight (w/PSU & Rail)
• kgs: 31
• lbs: 68.2

Packaging Dimensions (W x D x H)
• mm: 603 x 883 x 314
• inches: 23.7 x 34.8 x 12.4

Mounting
Standard: 28" tool-less slide rail

* All specifications are subject to change without notice.

Datasheet SB201-VG Datasheet


 SB201-VG_Datasheet_082517.pdf

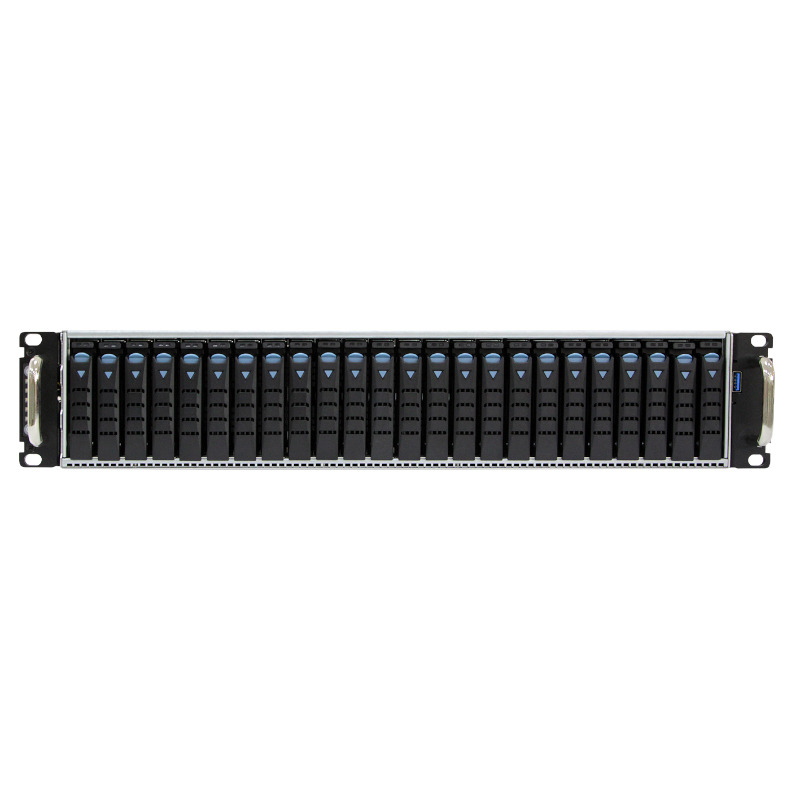

Product Images SB201-VG (Front 45 Degrees)





Product Images                                          SB201-VG (Front)

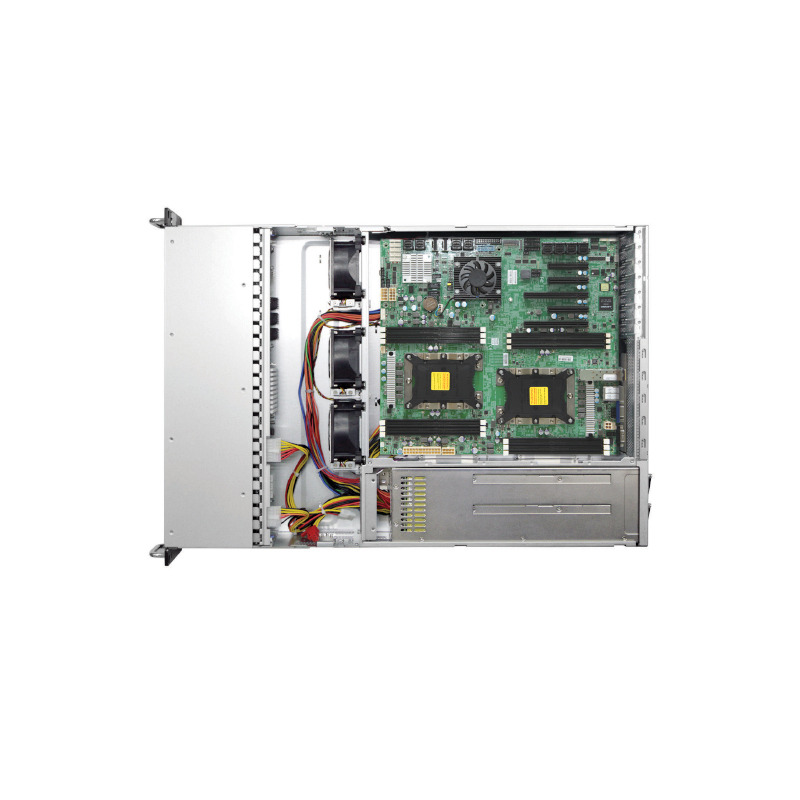

Product Images SB201-VG (Top)

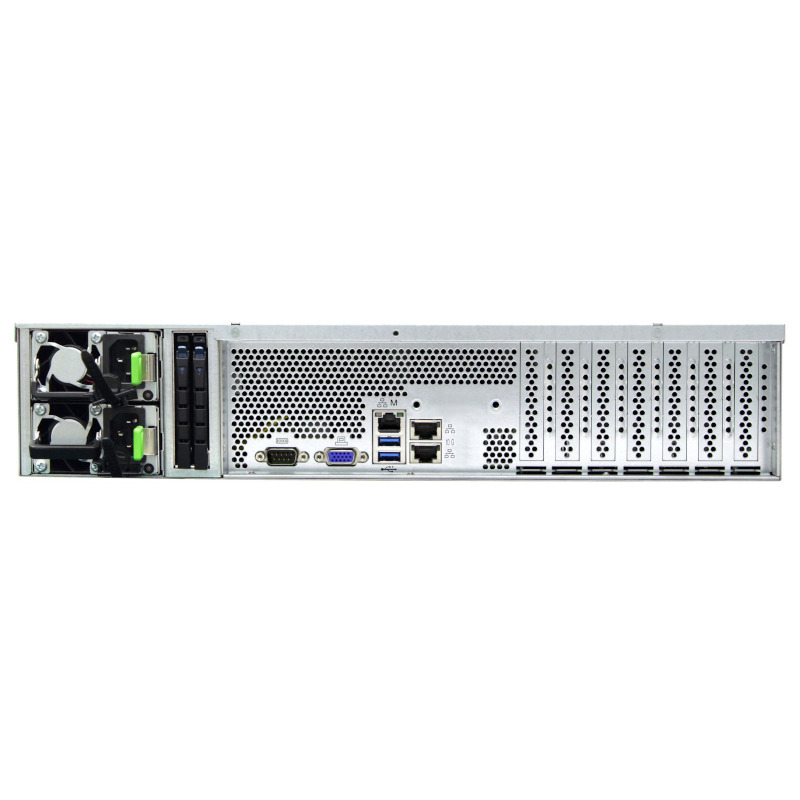

Product Images SB201-VG (Rear)
