2U 12G 12 x 3.5" Barebone Storage Chassis with AIC Virgo Motherboard

PCICASE Model No: SB202-VG
Manufacturer Model No: SB202-VG
Please Call Sales
Key Features

• 2U 12-Bay general purpose storage server
• Supports two Intel® Xeon Scalable Processors
• With Intel® Lewisburg C620 series Chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
• Two 10GbE SFP+ ports plus dedicated BMC management port
• Customizable to meet OEM/ODM requirements



Features & Benefits

SB202-VG, a 2U 12-bay storage server solution, supports dual Intel® Xeon® Scalable Processors. Tool-less design SAS 12G backplane with options for built-in expander or passive board which are providing 12x 3.5" drive bays in the front and 2x 2.5” in the rear. SB202-VG provides  5x PCIe 3.0 slots for add-on cards.

Dimensions (W x D x H)
• mm : 430 x 680 x 88.2
• inches : 17 x 26.8 x 3.5

Motherboard
AIC Server Board Virgo

Processor
Processor Support : Intel® Xeon® Scalable Processors
UPI Speeds: 9.6 GT/s, 10.4 GT/s
Socket Type : Socket P0 (LGA-3647 Socket)

Chipset Support
Intel® Lewisburg C620 series PCH

System Memory
• DDR4 2666 ECC RDIMM
• Total 12 memory slots; 6 channel per CPU (1DPC)

Front Panel
• Power on/off
• System reset
• System ID
• 1 x USB 3.0 Type A connector

LEDs
• Power status
• System alert
• LAN active
• Drive active
• System ID

Drive Bays
• External : 12 x 3.5” hot swap
• Internal : 2 x 2.5” hot swap (7mm, rear)

Backplane
• 1 x 12-port 12G SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors
• 1 x 12-port 12G SAS passive backplane with SFF-8643 + 4 x NVMe U.2 connectors (BTO)
• 1 x 12-port 12G SAS backplane with 3 SFF-8643 connectors (BTO)

Expansion Slots
• 2 x PCIe Gen3 x16
• 1 x PCIe Gen3 x16 (x8 mode)
• 3 x PCIe Gen3 x8

System BIOS
BIOS Type: • Insyde UEFI BIOS
• SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe NTB

On-board Devices
SATA :
Lewisburg PCH on-chip solution
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS) + 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
• Broadcom SAS IOC SAS3008 supports up to 8 ports 12G SAS via 2 x SFF-8643 mini-SAS HD (optional)
IPMI :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
Network Controller :
• Intel® PCH (Lewisburg) Integrated 10GbE LAN Controller with dual 10GbE SFP+
+ 2 x configurable ports support 10GbE (KR/SFI/XFI) or 1GbE (KX) (option)
• Realtek RTL8201EL for BMC dedicated management port
Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

Rear I/O

• LAN:  2 x 10GbE SFP+ ; 1 x GbE RJ45 dedicated to BMC management
• USB: 2 x USB 3.0 double-stack Type A
• VGA: 1 x external VGA port
•Serial Port: 1 x external DB-9 COM port


Power Supply
• 550W 1+1 redundant power supply 80+ Platinum
• 800W 1+1 redundant power supply 80+ Platinum (BTO)

System Cooling
3 x 80x38mm PWM hot swap system cooling fans

System Management
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish

Environmental Specifications
• Operating temperature : 0° - 35°C
• System relative humidity : 5% - 95% non-condensing

Gross Weight (w/PSU & Rail)
• kgs : 27
• lbs : 59.5

Packaging Dimensions (W x D x H)
• mm : 605 x 920 x 322
• inches : 23.8 x 36.2 x 12.7

Mounting
Standard : 28" tool-less slide rail

All specifications are subject to change without notice.

Datasheet SB202-VG Datasheet


 SB202-VG Datasheet.pdf

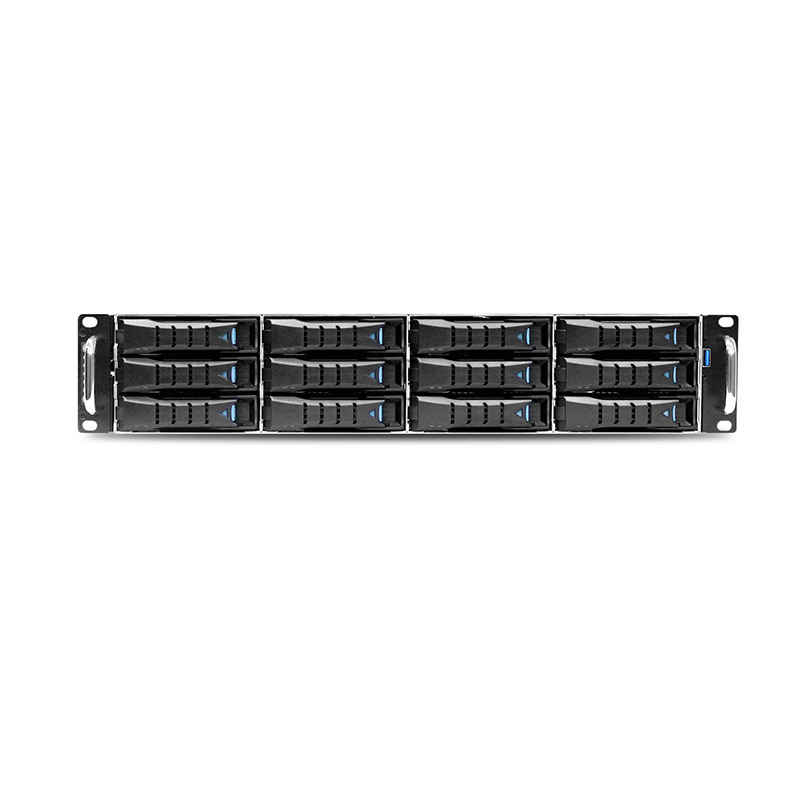

Product Images SB202-VG (Front 45 Degrees)





Product Images                                          SB202-VG (Front)

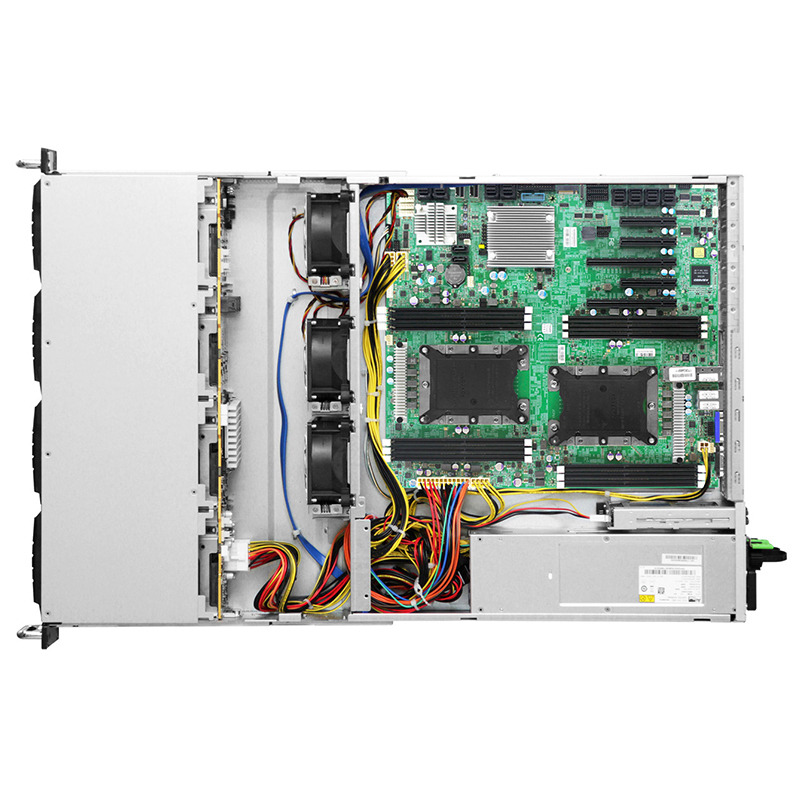

Product Images SB202-VG (Top)

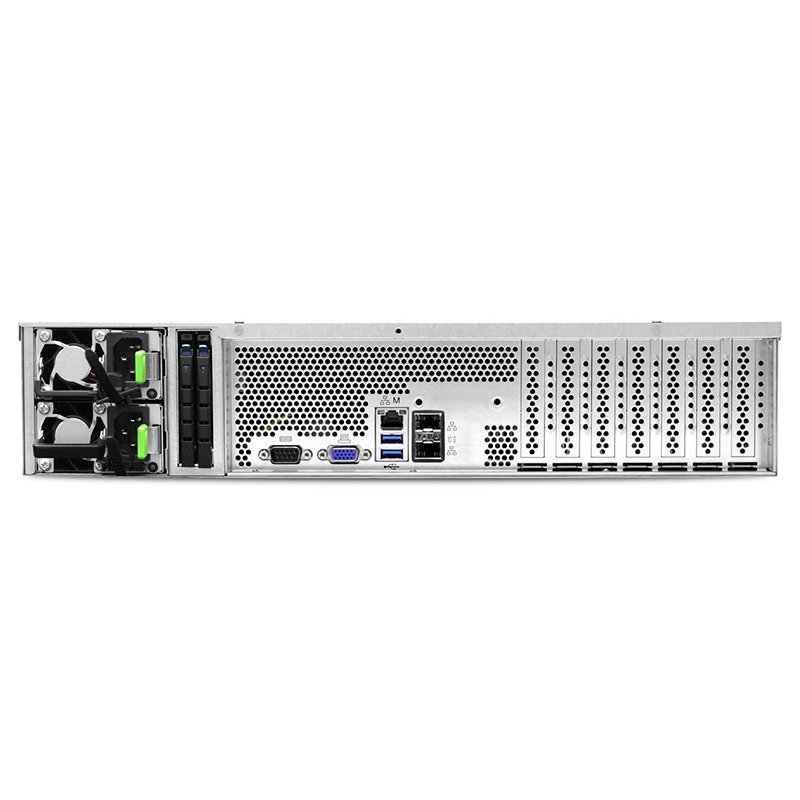

Product Images SB202-VG (Rear)
