1U short system, 4x 3.5"/2.5" SAS/SATA hot-swap, 350W Single Gold power supply, rail, 1x 4-port 12Gb SATA/SAS backplane, Dubhe motherboard (SKU A), 1x PCIe x16 Gen5 (FHHL), 2x CPU heatsink, w/o rail, w/o bezel

Dimensions
mm
427 x 381 x 44.4
 inches
16.8 x 15 x 1.75

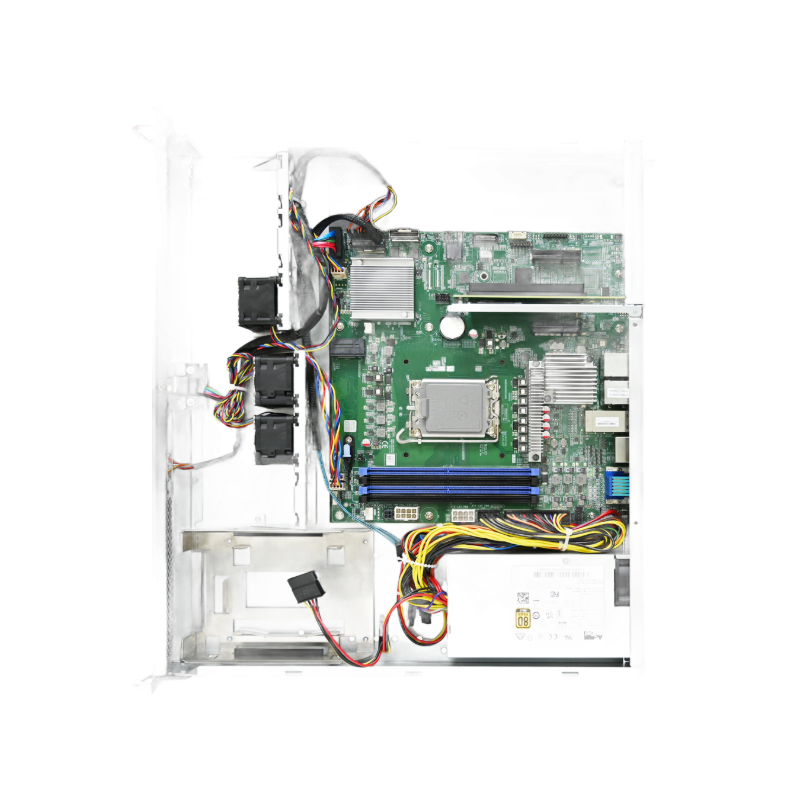

Motherboard
AIC Server Board Dubhe
Processor
Processor Support
• Single Intel® Arrow Lake-S CPU
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system)
CPU Interconnection
Socket Type
Socket LGA 1851
Chipset Support
PCH H810
System Memory
 • DDR5 ECC/non-ECC UDIMM up to 6400MHz(1SPC); 5600MHz(2SPC)
• Total 4 memory slots; 2 slots per CPU (2SPC)

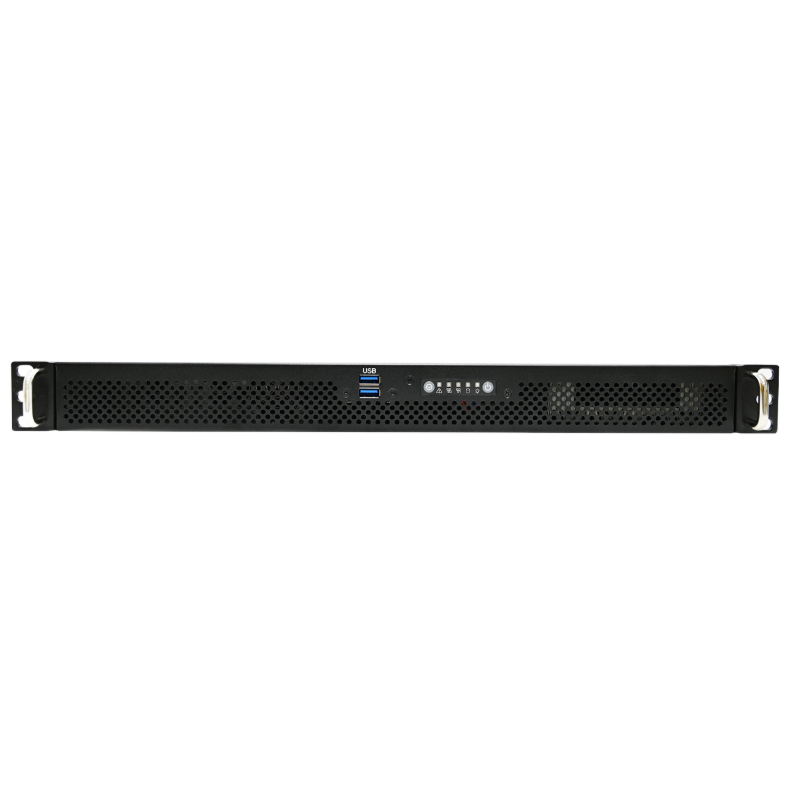

Front Panel
• System power on/off
• System reset
• 2 x USB ports
LEDs
• Power LED
• HDD LED
• LAN 1
• LAN 2
• Alert LED
Drive Bays
External
 Internal
• 3.5"x 2
• 2.5"x 2 (7mm SSD)
Backplane

Expansion Slots
PCIe 5.0
1 X16 FHHL
PCIe 4.0
System BIOS
BIOS Type
AMI / SPI (Serial Peripheral Interface)
FLASH interface
BIOS Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS boot specification
• BIOS recovery mode
• SRIOV
• TPM
On-board Devices
SATA
• 8 x SATA3 (by PCH, in SFF8654-8i, RSTeRAID 0/1 support, SGPIO)
• 8 x SATA3 (by 2x ASM1164, in 1x SFF8654-8i)
IPMI
Network Controllers
• 2 x 10G Base-T/1GbE RJ45 connectors with Broadcom BCM57416 + BCM5720L co-design
• 1 x 2.5G Base-T RJ45 connector with Intel® i226
Graphics
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

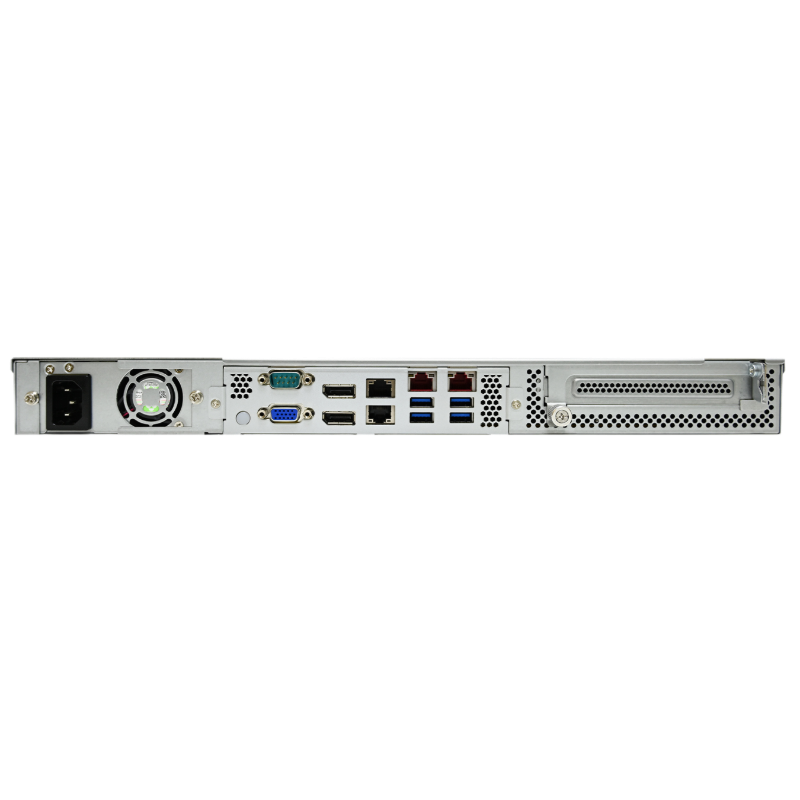

Rear I/O
LAN
• 2 x RJ45 10GbE
• 1 x RJ45 2.5GbE data NIC
USB
4 x USB 3.2 Gen 1 Type A
Video Output
2 x DP++
Serial Port
1 x RS232 D-Sub
ID
 Power Supply
Single 350W 80+ Gold
System Cooling
3 x 40x28mm fans
System Management
Environmental Specifications
• Storage temperature: -10°C(14°F) ~ 60°C(140°F)
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
7
lbs
15.4
Packaging Dimensions (W x D x H)
mm
546 x 577 x 176
inches
21.5 x 22.7 x 6.9
* All specifications are subject to change without notice.
