• 1U FIPS/NEBS compliant network appliance
• Supports one Intel® Xeon® Processor E-2300 (Rocket Lake) product family
• With Intel® C256 chipset to provide 5+ years product life cycle
• Flexible I/O design with MAX I/O technology to support 2x PCIe 4.0 add-in cards in short depth 1U
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions
• Supports intrusion switch
Key Features
• 1U FIPS/NEBS compliant network appliance
• Supports one Intel® Xeon® Processor E-2300 (Rocket Lake) Product Family
• With Intel® C256 chipset to provide 5+ years product life cycle
• Flexible I/O design with MAX I/O technology to support 2x PCIe 4.0 add-in cards in short depth 1U
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions
• Supports intrusion switch
| Dimensions (W x D x H) |
| • mm : 432.8 x 524.7 x 43.8 • inches : 17 x 20.6 x 1.72 |
| Motherboard |
| AIC Server Board Delphinus |
| Processor |
| Processor Support : • One Intel® Xeon® Processor E-2300 (Rocket Lake) Product Family • Supports CPU TDP up to 95W *Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. |
| Socket Type : Socket H5 (LGA 1200) |
| Chipset Support |
| Intel® C256 PCH |
| System Memory |
| 2 channels DDR4 / 2 DPC UDIMM ECC Up to 3200 MT/s Total 4 memory slots; up to 128GB |
| Front Panel |
| • System power on/off • System ID • System reset • NMI • USB 2.0 Type A • LCM module |
| LEDs |
| • Power status • System management alert • Drive activity • Network activity • System ID |
| Drive Bays |
| Internal : 1 x 3.5" 2 x 2.5" (1 x shared with 3.5") 2 x M.2(NGFF)/M-Key/22110 |
| Expansion Slots (PCIe 3.0) |
| • 2 x PCIe Gen4 x8 slots • 1 x PCIe Gen3 x8 slot (with x4 link) |
| Riser Card (included) |
| RC-PE1U35-TY : 2 x PCIe x8 slots |
| System BIOS |
| BIOS Type : AMI UEFI BIOS |
| BIOS Features : • ACPI • PXE • WOL • AC loss recovery • IPMI KCS interface • SMBIOS • Serial console redirection • BIOS Boot Specification • BIOS Recovery Mode |
| On-board Devices |
| SATA : • 6x SATA 6G ports (4x in miniSAS HD + 2x 7pin + 2x M.2) |
| IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN |
| Network Controller: • Intel® I350 AM4/AM2 co-design to support 2/4 x GbE (SKU option) • Realtek RTL8211EL for BMC dedicated management port |
| Graphics : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • 2D Video Graphic Adapter with PCIe bus interface • 1920x1200@60Hz 32bpp |
| Rear I/O |
|
LAN : 3 x GbE RJ45 |
| Power Supply |
| 300W 1+1 redundant power supply 80+ Gold • AC INPUT : 100~240V,50-60Hz,5-3A • DC 36~72V input power module available (BTO) |
| System Cooling |
| 3 x 40x56mm hot-swap fans |
| System Management |
| • IPMI 2.0 • KVM over IP • Media redirection • KCS (Keyboard Controller Style), IOL (IPMI Over LAN) • SOL (Serial Over LAN) interface • Temp, voltage and fan speed monitoring • CPU temperature (PECI) • System temperature • Fan speed detection • Smart fan speed control • System ID / System fail indicator • SMASH support • Remote power on/off/reset |
| Environmental Specifications |
| • Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) • Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) • Storage operating humidity : 5%~95% non-condensing |
| Gross Weight (w/ PSU & Rail) |
| • kgs : 22 • lbs : 48.5 |
| Packaging Dimensions (W x D x H) |
| • mm : 590 x 850 x 343 • inches : 23.2 x 33.5 x 13.5 |
| Mounting |
| Standard : 20" fixed rail |
| SKU Information | Description |
|
XP1-T116DLXX (Standard) |
1U FIPS/NEBS compliant network appliance, 300W redundant Gold power supply, Delphinus motherboard supports 1x Intel® Xeon® Processor E-2300 CPU/ DDR4 ECC UDIMM x4, M.2 SATA/PCIe*2, MAX I/O™ technology support up to 2 COTS, Intel I350 GbE rear x2, LCM, 20" fixed rail, w/o bezel |
| FRU Information | |
| Part Number | Description |
| M06-1445-012 | FAN module 4056 with housing w/o packing |
| PH-A00000117 | 300W redundant power supply housing |
| PM-000000017 | 300W redundant power supply module |
| H5531S200006 | 20" fixed rail |
| M06-00731-23 | Front bezel |
* All specifications are subject to change without notice.
| Datasheet | TB116-DL Datasheet |
|
|
|

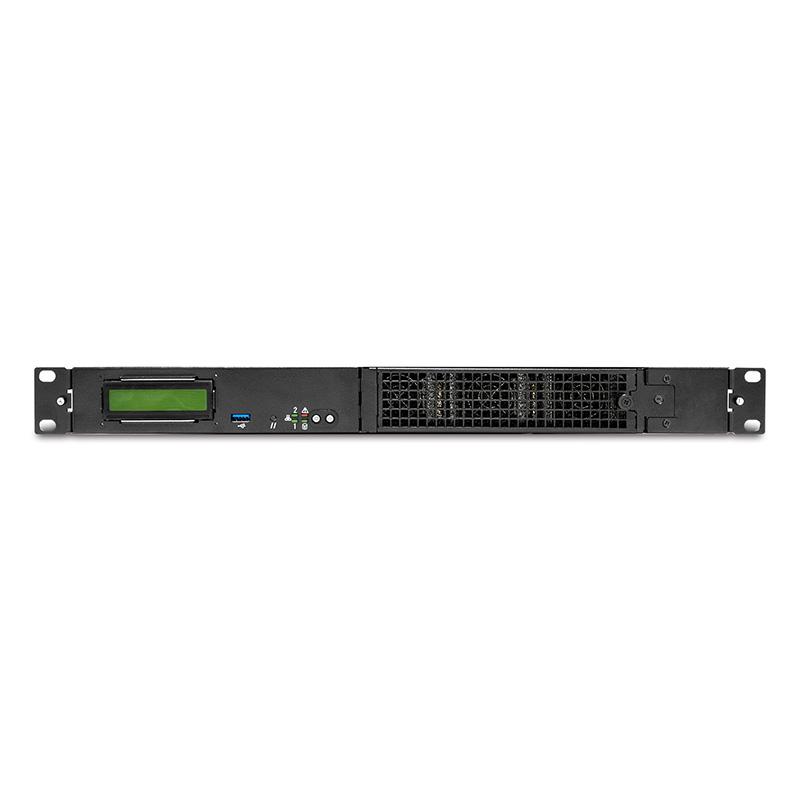

| Product Images | TB116-DL (Front 45 Degrees) |
|
|
|
| Product Images | TB116-DL (Front) |
|
|
|

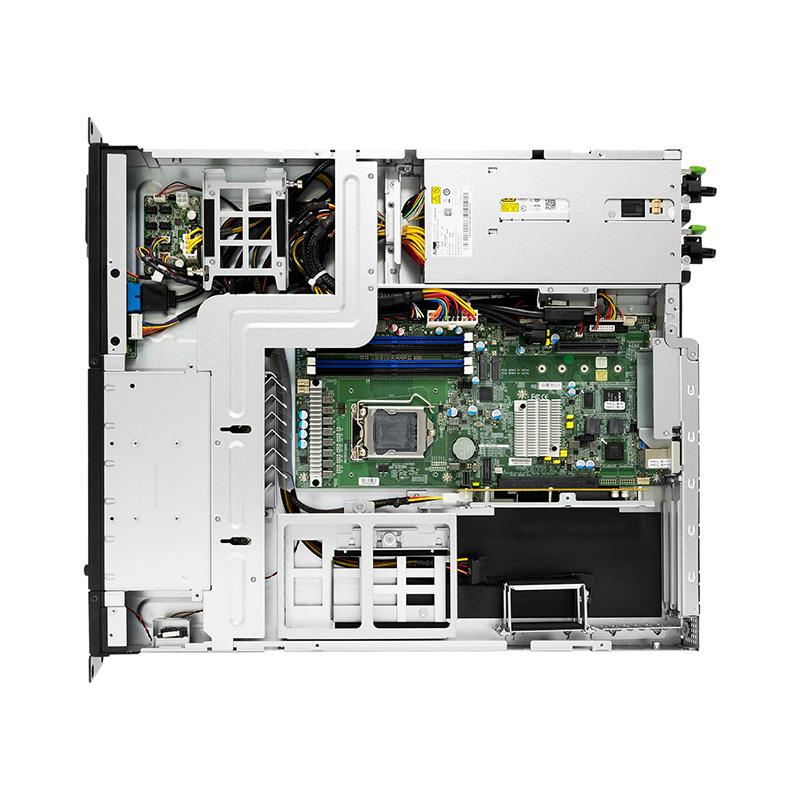

| Product Images | TB116-DL (Top) |
|
|
|

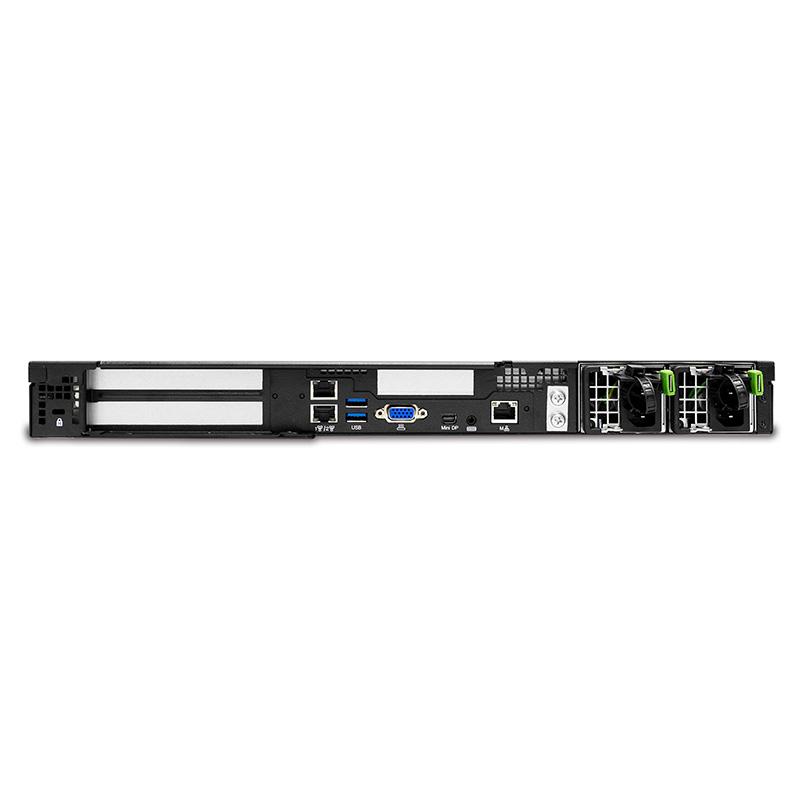

| Product Images | TB116-DL (Rear) |
|
|
|
| Product Manual/AVL/Firmware | TB116-DL |
|
|
