• 1U FIPS/NEBS compliant network appliance
• Supports one Intel® Xeon® Processor E3-1200 v5/v6 Product Family
• With Intel® C236 Chipset to provide 5+ years product life cycle
• Flexible I/O design with MAX I/O™ technology to support up to 2 COTS PCIe 3.0
add-in cards in a 20” depth 1U
• Two server class GbE ports
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
• Customizable to meet your requirements
| Dimensions (W x D x H) (with chassis ears) |
| • mm : 438 x 541.8 x 44.4 • inches : 17.2 x 21.3 x 1.75 |
Motherboard |
| AIC Server Board Antlia |
Processor |
| One Intel® Xeon® Processor E3-1200 v5/v6 Product Family, 6th/7th Generation Intel® Core™ i3 Processor, or Intel®Pentium® or Celeron® Processor |
| Bus Speeds : DMI - 5 GT/s |
| Socket Type : Socket H3 (FCLGA1151) |
Chipset |
| • Intel® C236 PCH • Intel® i350-AM2 |
System Memory |
| 4 DIMM slots support up 64 GB of memory DDR4 1866/2133 ECC UDIMM 2 Memory channels |
Front Panel |
| • Power on/off • System ID • System reset • NMI • USB 2.0 Type A connector |
LEDs |
| • Power • System ID • System management alert • Drive activity • Network activity |
Drive Bays |
| External : 2 x 3.2"/2.5" |
Expansion Slots (PCIe 3.0) |
| 2 x8 |
Riser Card (included) |
| • PSG-RC-AR1U-20-XXX (PSG Code: PE1U03) 1U Gold-finger PCIe x16 to 2 PCIe x8 riser |
System BIOS |
| BIOS Type : • Insyde BIOS code base • SPI (Serial Peripheral Interface) FLASH Interface |
| BIOS Features : • ACPI1.0/2.0/3.0 • PXE 2.0 • WOL • AC loss recovery • IPMI KCS interface • SMBIOS 2.0 • Serial console redirection • BIOS Boot Specification • BIOS Recovery Mode • SRIOV |
On-board Devices |
| SATA : Built-in SATA RAID controller on Intel® C236 PCH • 8 x SATA3 ports + 1 x M.2 |
| IPMI : Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Management Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support |
| Graphics : Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor • 2D Video Graphic Adapter with PCIe bus interface • 1920x1200@60Hz 32bpp |
Rear I/O |
|
2 x RJ45 GbE + 1 x RJ45 management 2 x USB 3.0 Type A |
Power Supply |
| AC 300W 1+1 redundant high-efficiency power supply • optional DC 36-72V input power module available • 90-264VAC, 47-63 Hz |
System Cooling |
| 3 x 40x56mm hot swap, dual-rotor fans |
System Management |
| • IPMI 2.0 • KVM over IP • Media redirection • KCS (Keyboard Controller Style), IOL (IPMI Over LAN) • SOL (Serial Over LAN) interface • Temp, voltage and fan speed monitoring • CPU temperature (PECI) • System temperature • Fan speed detection • Smart fan speed control • System ID / System fail indicator • SMASH support • Remote power on/off/reset |
Environmental Specifications |
| • Operating temperature : 0° - 45°C • Storage temperature : -20° - 60°C • System relative humidity : 5% - 95% (38°C) non-condensing |
Gross Weight (w/PSU & Rail) |
| • kgs : 18.5 • lbs : 40.8 |
Packaging Dimensions (W x D x H) |
| • mm : 590 x 805 x 274 • inches : 23.2 x 31.7 x 10.8 |
Mounting |
| Standard : 20'' fixed rail |
| SKU Information | Description |
| XP1-T116ANXX |
1U FIPS/NEBS compliant network appliance, 300W redundant power supply, Antlia Motherboard supports 1x Intel® Xeon® Processor E3-1200 v5 & v6 CPU, 4x DDR4 ECC UDIMM, MAX I/O™ technology support up to 2 COTS, 2x Intel I350 GbE rear, 2x Internal GbE, RTX riser card, 20" fixed rail, w/o bezel |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| Fan | FC-000000019 | 4056 Fan Module |
| Power Supply Housing | PH-000000023 | 300W Redundant Power Supply Housing |
| Power Supply Module | PM-000000052 | 300W Redundant Power Supply Module |
| Slide Rail | H5531S200006 | 20" fixed rail |
| Optional Parts List | Part Number | Description |
| Front Bezel | M06-00731-23 | Front Bezel |
* All specifications are subject to change without notice.
| Datasheet | TB116-AN Datasheet |
|
|
|

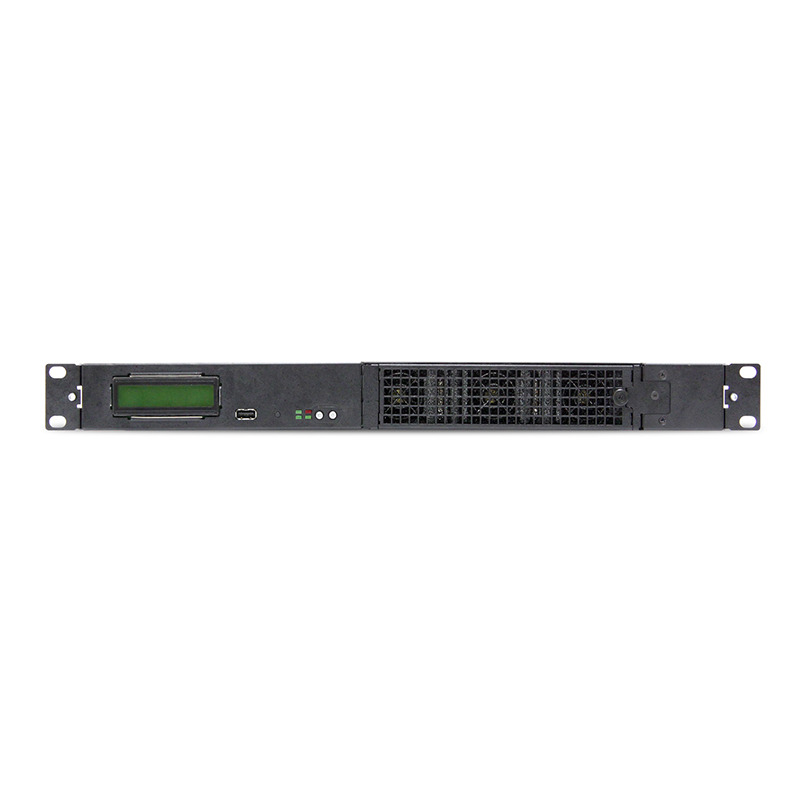

| Product Images | TB116-AN (Front 45 Degrees) |
|
|
|
| Product Images | TB116-AN (Front) |
|
|
|

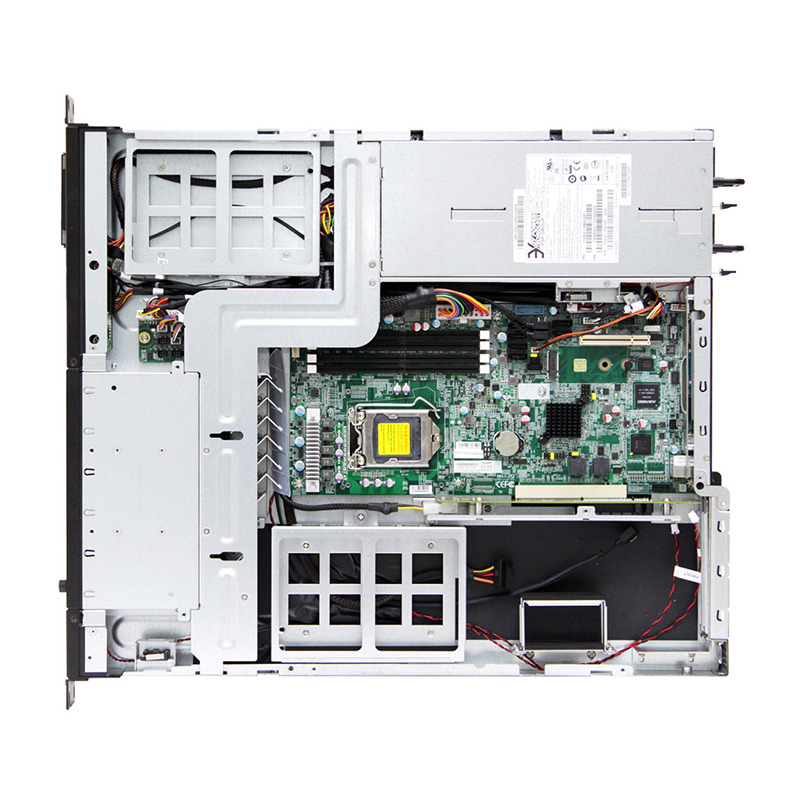

| Product Images | TB116-AN (Top) |
|
|
|

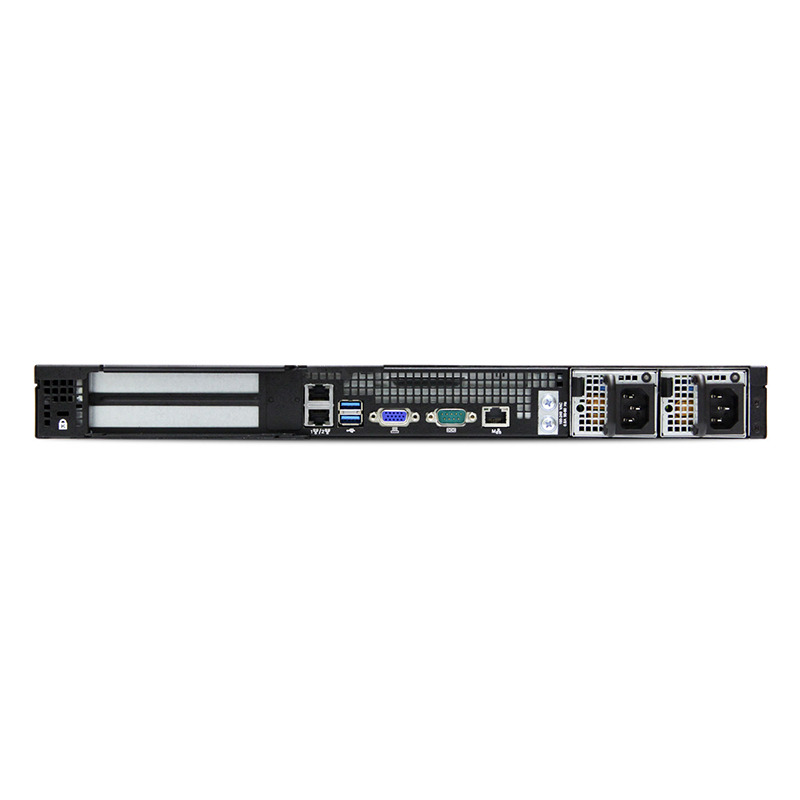

| Product Images | TB116-AN (Rear) |
|
|
|
| Product Manual/AVL/Firmware | TB116-AN |
|
|
