1U 12G storage server chassis supports 8 x 12G 2.5" and 2 x 6G 2.5" hot swap drive bays, with 650W redundant PSU (rails included)

PCICASE Model No: IPC-C1AT-BAR65-12G
Manufacturer Model No: RSC-1AT (AIC SKU: XE1-1AT00-02)
Please Call Sales
Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 2.5" drive trays
- Tool-less slide rail
• Supports 8 x 12G 2.5" hot swap drive bays and 2 x 6G 2.5" hot swap bays
• Includes 650W 1+1 redundant power supply (Option: 500W single)
• Support 1 full height expansion slot
• One front access USB 3.0 port





Features & Benefits

RSC-1AT is a T-series 1U SAS/SATA storage server chassis supports 8 x 12G 2.5" and 2 x 6G 2.5" hot swap drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less slide rail, and easy-swap PWM fans, offering a cost-effective solution ideally suited for a broad range of applications.  (Power supply is included. Motherboard is not included.)

Dimensions (W x D x H)
• mm: 483 x 680 x 43.5
• inches: 17 x 26.6 x 1.72
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black
Cooling
Middle: 4 x 40x56mm + 1 x 40x28mm PWM fans
(Option: 5 x 40x56mm PWM fans)
Power Supply

Standard: 650W 1+1 redundant
Option: 500W single PSU

Expansion Slot
1 full height
Front Panel
System power on/off and system reset, 1 x USB 3.0 port
LED Indicators
• Power
• HDD
• LAN
System Board
Up to 12"(W) x 13"(D) EATX MB
Drive Bays
External: 2.5" hot swap x 10
Backplanes
2 x 4-port 12Gb with SFF-8643 connector supports 12G + 1 x 2-port with SATA connector
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
• kgs: 21
• lbs: 46.3
Package Dimension (W x D x H)
• mm: 588 x 1050 x 263
• inches: 23.1 x 41.3 x 10.4
Cubic Feet
5.7
Container Load Quantity
 20’: 165
 40’: 340
 40’H: 410
Mounting
Standard: 28” tool-less slide rail

All specifications are subject to change without notice.

Datasheet IPC-C1AT-BAR65-12G Datasheet


 RSC-1AT Datasheet.pdf



Product Images IPC-C1AT-BAR65-12G (Front 45 Degrees)

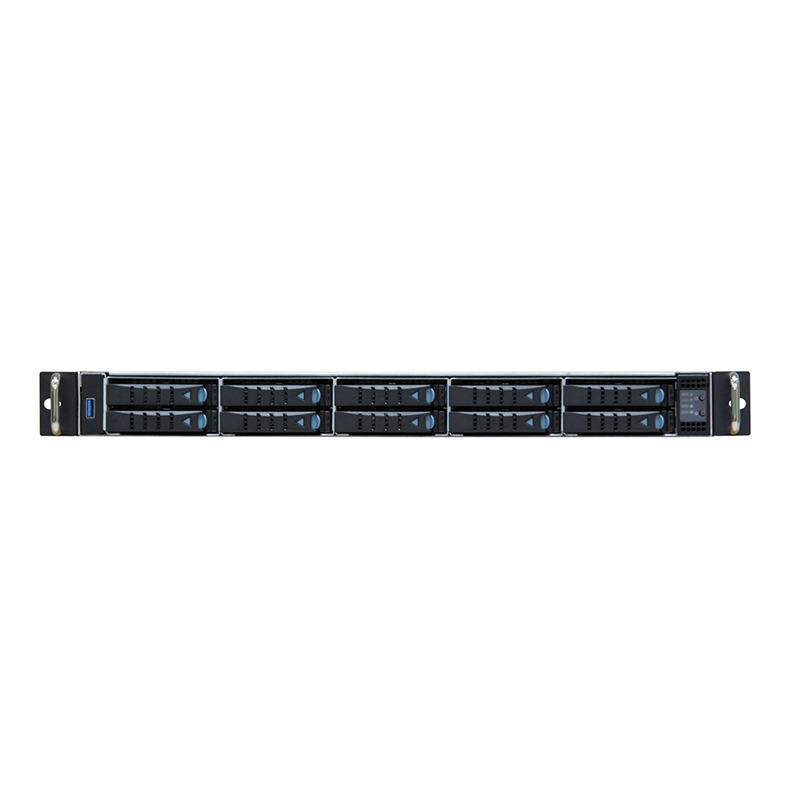

Product Images                                          IPC-C1AT-BAR65-12G (Front)

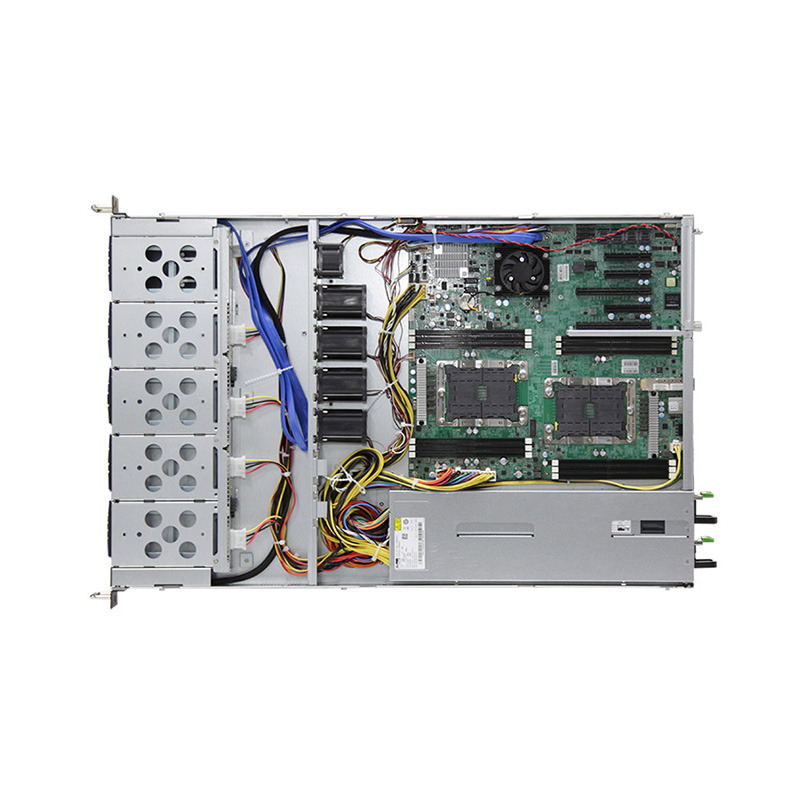

Product Images IPC-C1AT-BAR65-12G (Top-open)

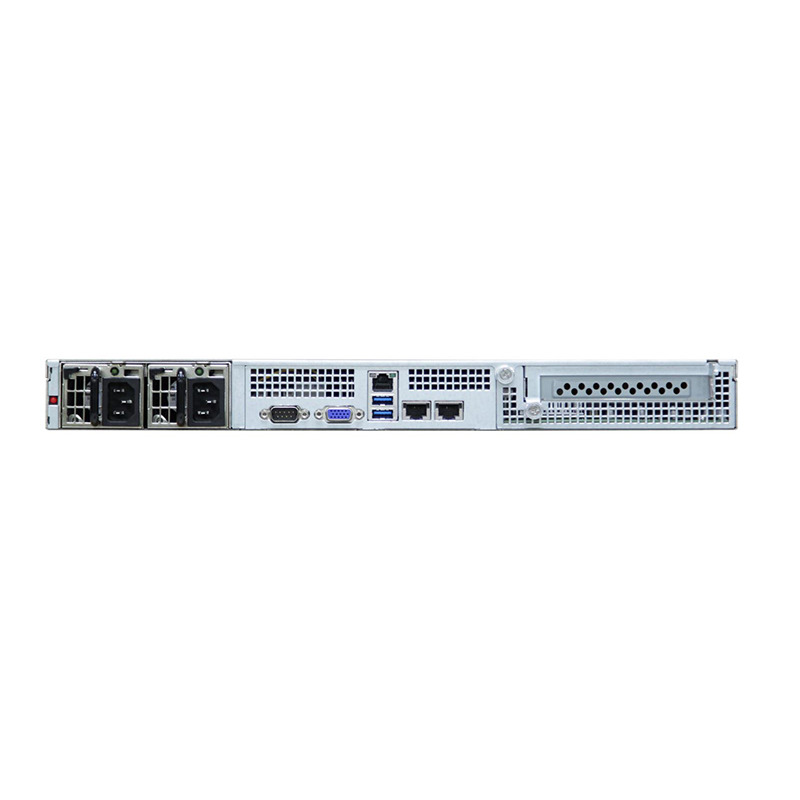

Product Images IPC-C1AT-BAR65-12G (Rear)
