• 1U 4-Bay general purpose storage server
• Supports two Intel® Xeon Scalable Processors
• With Intel® Lewisburg C620 series Chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
• Two 10GbE SFP+ ports plus dedicated BMC management port
• Customizable to meet OEM/ODM requirements
SB101-VG, a 1U Storage Server Solution, supports dual Intel® Xeon® Scalable Processors. SB101-VG has 4 x 3.5” (front) hot-swappable and 4x 2.5" internal HDD/SSD bays to provide high storage density. SB101-VG also has built in 2x10GbE SFP+ ports and SAS12G controller to save the space and cost of adding the cards.
| Dimensions (W x D x H) |
| • mm : 438 x 680 x 43.5 • inches : 17.2 x 26.8 x 1.7 |
| Motherboard |
| AIC Server Board Virgo |
| Processor |
| Processor Support : Intel® Xeon® Scalable Processors |
| UPI Speeds: 9.6 GT/s, 10.4 GT/s |
| Socket Type : Socket P0 (LGA-3647 Socket) |
Chipset Support |
| Intel® Lewisburg C620 series PCH |
System Memory |
| • DDR4 2666 ECC RDIMM • Total 12 memory slots; 6 channel per CPU (1DPC) |
Front Panel |
| • System power on/off • System reset • 1 x USB 3.0 port |
| LEDs |
| • Power status • HDD active • LAN active |
| Drive Bays |
| • External : 4 x 3.5” hot swap • Internal : 4 x 2.5” |
| Backplane |
| 1 x 4-port 12G SAS backplane with 1 x SFF-8643 connector |
| Expansion Slots |
| 1 x PCIe Gen3 x16 slot via riser card |
| System BIOS |
| BIOS Type: Insyde BIOS |
| BIOS Features : • ACP • PXE • WOL • AC loss recovery • Serial console redirection • SMBIOS • BIOS Boot Specification • BIOS Recovery Mode • SRIOV |
| On-board Devices |
| SATA : Lewisburg PCH on-chip solution • 8 x SATA 6.0 Gb/s (by 2 x mini-SAS) + 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin) • Broadcom SAS IOC SAS3008 supports up to 8 ports 12G SAS via 2 x SFF-8643 mini- SAS HD (optional) |
| IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support |
| Network Controller : • Intel® PCH (Lewisburg) Integrated 10GbE LAN Controller with dual 10GbE SFP+ + 2 x configurable ports support 10GbE (KR/SFI/XFI) or 1GbE (KX) (option) • Realtek RTL8201EL for BMC dedicated management port |
| Graphics : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • PCIe VGA/2D Controller • 1920x1200@60Hz 32bpp |
| Rear I/O |
| • LAN: 2 x 10GbE SFP+ ; 1 x GbE RJ45 dedicated to BMC management • USB: 2 x USB 3.0 double-stack Type A • VGA: 1 x external VGA port •Serial Port: 1 x external DB-9 COM port |
| Power Supply |
| • 500W single power supply • 450W 1+1 redundant power supply 80+ Platinum |
| System Cooling |
| 4 x 40x56mm + 1 x 40x28mm PWM fans |
| System Management |
| • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support • HTML5 • Redfish |
| Environmental Specifications |
| • Operating temperature : 0° - 35°C • System relative humidity : 5% - 95% non-condensing |
| Gross Weight (w/PSU & Rail) |
| • kgs : 20 • lbs : 44 |
| Packaging Dimensions (W x D x H) |
| • mm : 615 x 1020 x 273 • inches : 24.2 x 40.2 x 10.8 |
| Mounting |
| Standard : 28" tool-less slide rail |
* All specifications are subject to change without notice.
| Datasheet | SB101-VG Datasheet |
|
|
|
| Product Images | SB101-VG(Front 45 Degrees) |
|
|
|

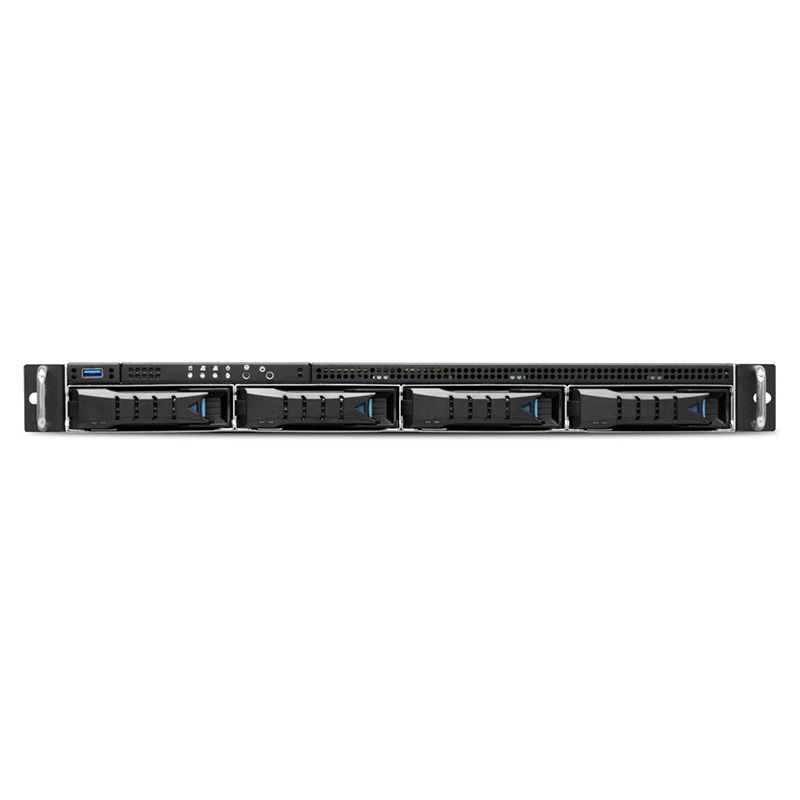

| Product Images | SB101-VG (Front) |
|
|
|

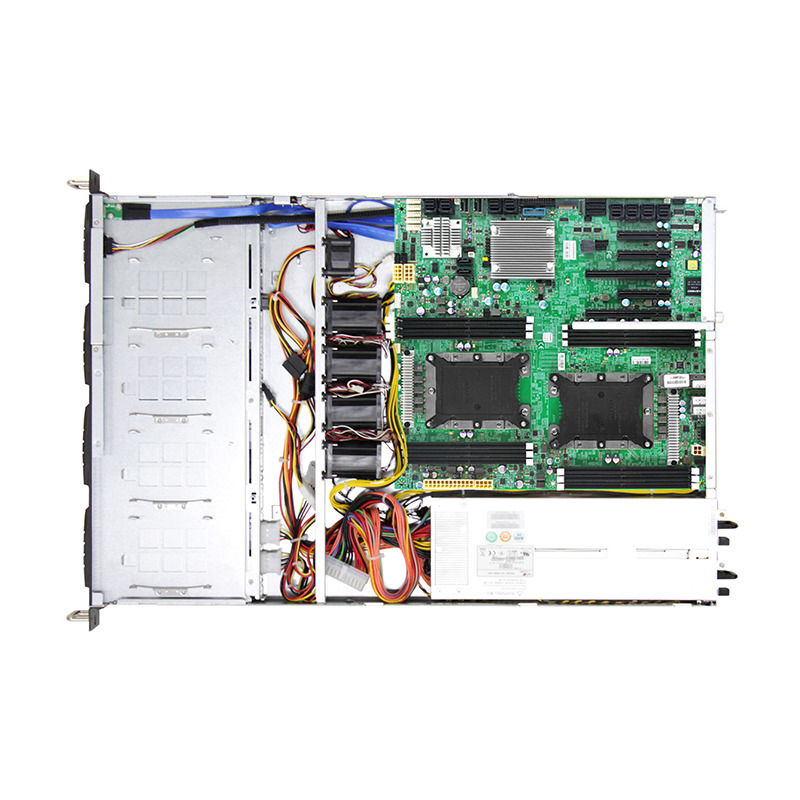

| Product Images | SB101-VG (Top) |
|
|
|

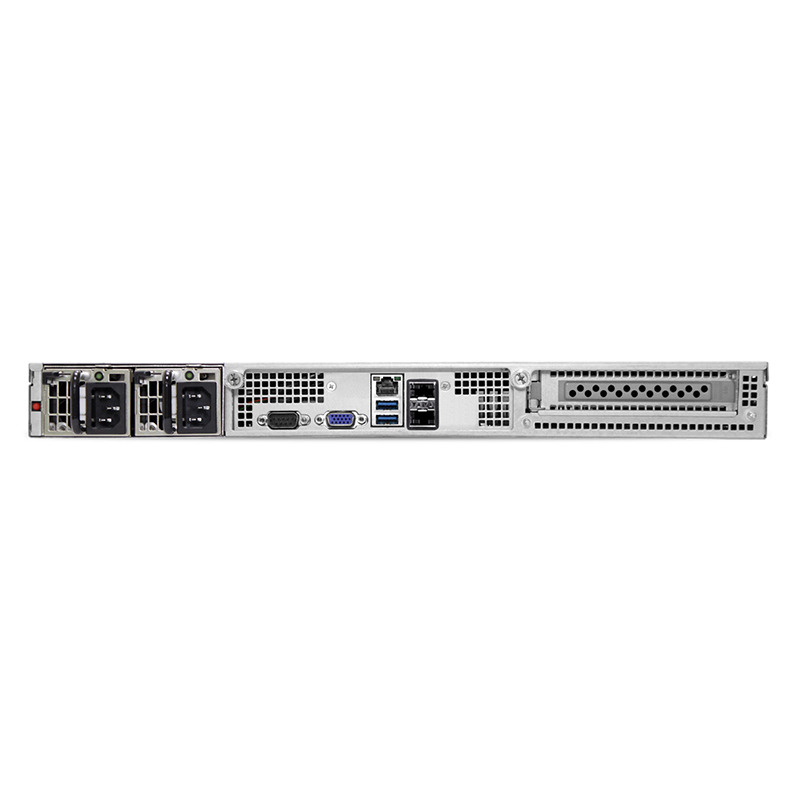

| Product Images | SB101-VG (Rear) |
|
|
