Purley 1U 12G 10-Bay 2.5" SAS/SATA Storage Server, supports dual Intel® Xeon® Scalable Processors.

PCICASE Model No: SB102-VG
Manufacturer Model No: SB102-VG
Please Call Sales
Key Features

• 1U 12G 10-Bay high-density storage server
• Supports two Intel® Xeon® Scalable Processors
• With Intel® Lewisburg C620 series Chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
• Customizable to meet your requirements
• Two 10 GbE SFP+ ports



Features & Benefits

SB102-VG, a 1U 10-Bay 2.5" SAS/SATA Storage Server, supports dual Intel® Xeon® Scalable Processors. SB102-VG has 10 x 2.5" hot swap hard drive bays to provide a highly dense storage solution, also can be an Object Storage and All-Flash-Array server. Meanwhile, two 10GbE SFP+ ports would able to provide a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Dimensions (W x D x H) (with chassis ears)
• mm: 482.6 x 660 x 44
• inches: 19 x 26 x 1.7

Motherboard
AIC Server Board Virgo

Processor
Processor Support: Two Intel® Xeon® Scalable Processors
QPI Speeds: 9.6 GT/s, 10.4 GT/s
Socket Type: Socket P0 (LGA-3647 Socket)

Chipset Support
Intel® Lewisburg C620 series Chipset

System Memory
• DDR4 2666 ECC RDIMM
• Total 12 memory slots; 6 channel per CPU (1DPC)

Expansion Slots (PCIe 3.0)
1 x 16 slot via riser card

System BIOS
BIOS Type: Insyde BIOS
BIOS Features :
• ACP
• PXE
• WOL
• AC loss recovery
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV

On-board Devices
SATA/SAS:
• Lewisburg PCH on-chip solution
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS) + 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
• Broadcom SAS IOC SAS3008 supports up to 8 ports 12S SAS via 2 x SFF-8643 mini-SAS HD (Optional)
IPMI:
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
Network Controllers:
• Intel® PCH (Lewisburg) Integrated 10GbE LAN Controller with dual 10GbE SFP+ 2 x configurable ports support 10GbE (KR/SFI/XFI) or 1GbE (KX) (option)
• Realtek RTL8201EL for BMC dedicate management port
Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

Rear I/O
LAN:
• 2 x 10 GbE SFP+
• 1 x GbE RJ45 dedicated to BMC management
USB:
2 x USB 3.0 double-stack Type A
VGA:
1 x external VGA port
Serial Port:
1 x external DB-9 COM port

Power Supply
650W 1+1 redundant power supply
(Optional 750W/850W 1+1 redundant power supply)

System Cooling
5 x 40 x 56mm dual rotor fans

System Management
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish

Environmental Specifications
• Operating Temperature: 0° - 35°C
• System relative humidity : 5% - 95% non-condensing

Gross Weight (w/PSU & Rail)
• kgs: 24
• lbs: 53

Packaging Dimensions (W x D x H)
• mm: 590 x 1050 x 330
• inches: 23.2 x 41.3 x 13

Mounting
Standard: 28" tool-less slide rail

* All specifications are subject to change without notice.

Datasheet SB102-VG Datasheet


 SB102-VG_Datasheet_082417.pdf



Product Images SB102-VG (Front 45 Degrees)

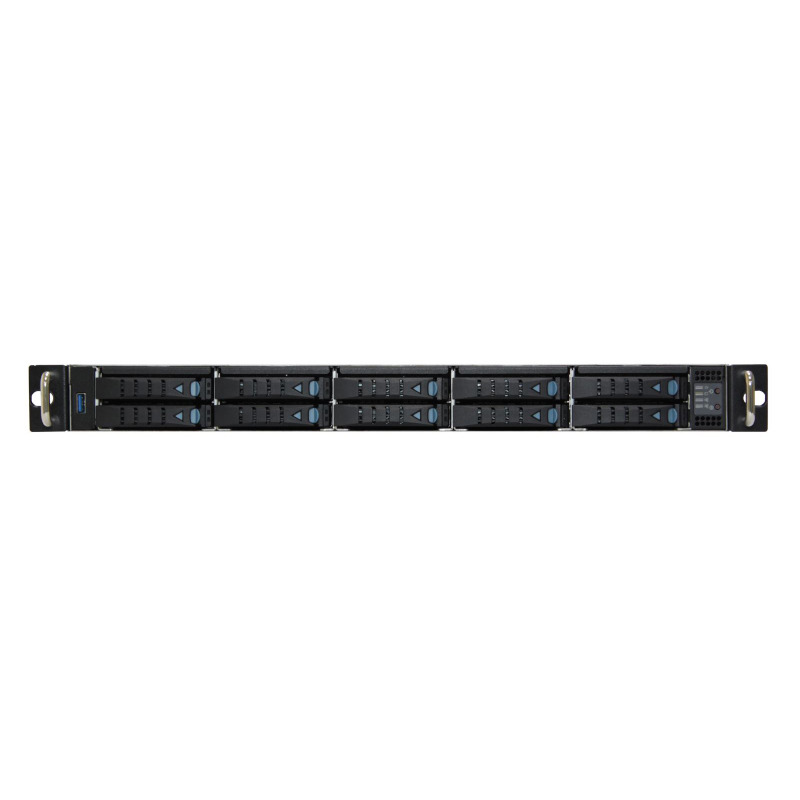

Product Images                                          SB102-VG (Front)

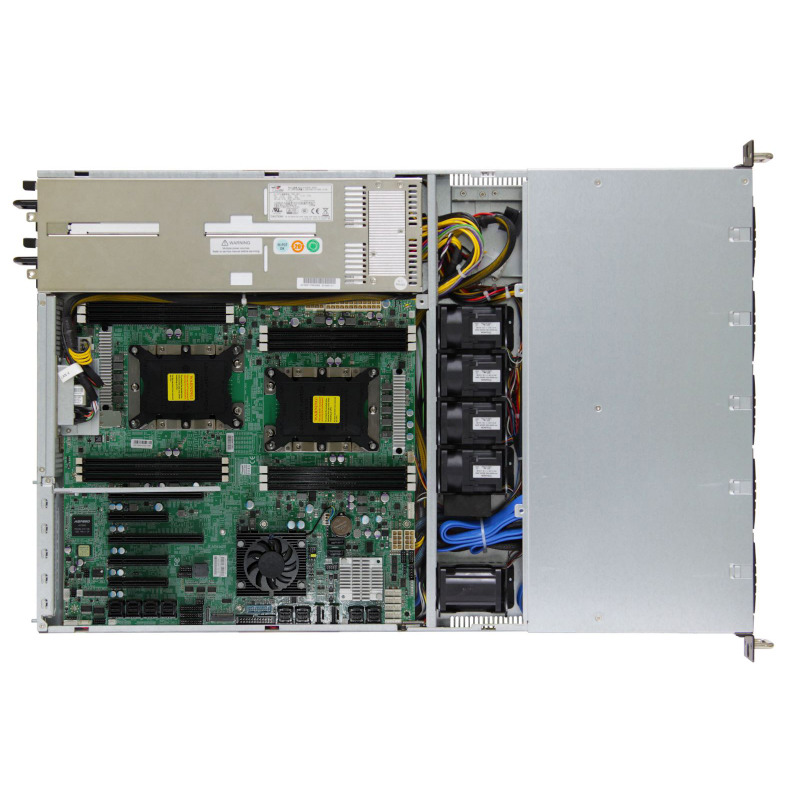

Product Images SB102-VG (Top)

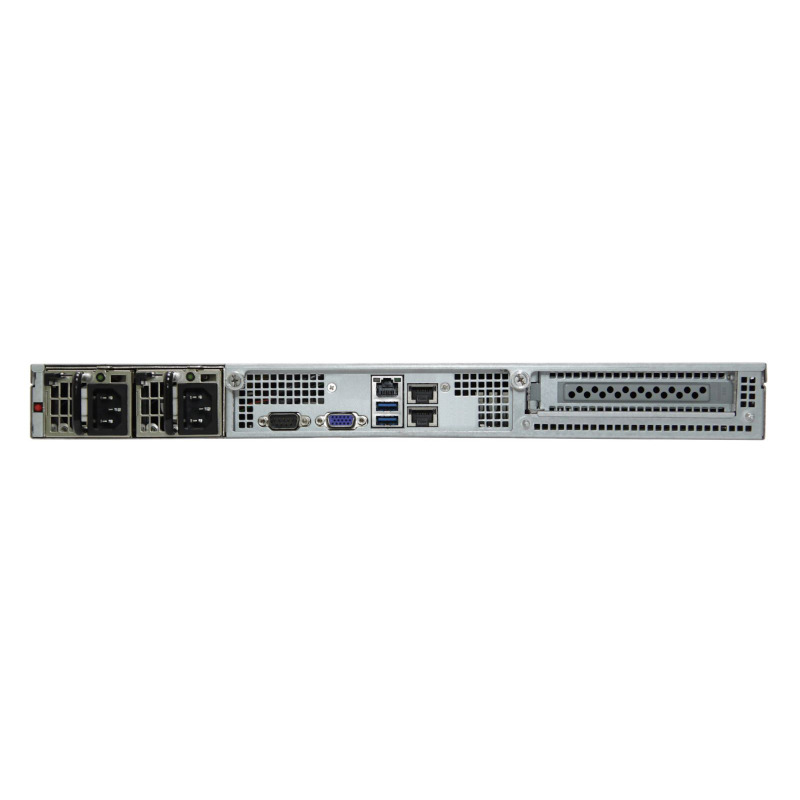

Product Images SB102-VG (Rear)
