Key Features
• 1U all-flash server solution
• 12 x 2.5” front hot-swappable NVMe bays
• Supports dual 4th Gen Intel® Xeon® Scalable Processors (codename: Sapphire Rapids)
• 32x DDR5 RDIMM and 4x PCIe Gen5 extensions
Features & Benefits
Preliminary

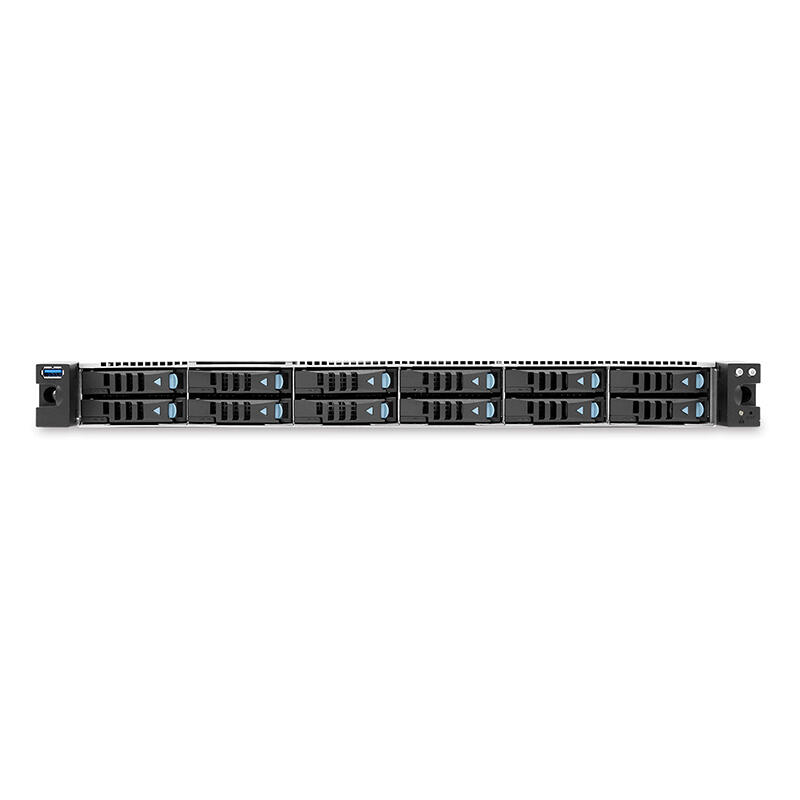

SB102-HK, a 1U all flash server solution, supports dual 4th Gen Intel® Xeon® Scalable Processors (codename Sapphire Rapids), 32x DDR5 RDIMM, and 4x PCIe Gen5 extensions. SB102-HK has 12 x 2.5” (front) hot-swappable NVMe bays to provide highest storage density and optimized performance for the applications.
Key Features
• 1U all-flash server solution
• 12 x 2.5” front hot-swappable NVMe bays
• Supports dual 5th Gen Intel® Xeon® Scalable Processors (codename: Emerald Rapids)
• Supports dual 4th Gen Intel® Xeon® Scalable Processors (codename: Sapphire Rapids)
• 32x DDR5 RDIMM and 4x PCIe Gen5 extensions
| Dimensions (W x D x H) | ||||
| • mm : 438 x 800 x 43.75 • inches : 17.2 x 33.5 x 1.75 |
||||
| Motherboard | ||||
| AIC Server Board Horkos | ||||
| Processor | ||||
| Processor Support : • 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids) • 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids) • Supports CPU TDP up to 350W *Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. |
||||
| Socket Type : Socket E (LGA 4677) | ||||
| Chipset Support | ||||
| Intel® Emmitsburg PCH (C741 Chipset) | ||||
| System Memory | ||||
| • DDR5 4800MHz (1DPC) • DDR5 5600MHz (1DPC) 4400MTS (2DPC) by Emerald Rapids CPU • Total 32 memory slots; 16 slots per CPU (2DPC) |
||||
| Front Panel | ||||
| • 1 x System power on/off button/LED • 1 x System reset button • 1 x System ID button/LED • 1 x System alert (BMC) • 1 x USB 3.0 |
||||
| Drive Bays | ||||
| External : • 12 x 2.5" hot-swap (PCIe Gen5 NVMe) Internal : • 2 x M.2/M-Key/22110/2280 (PCIe Gen4) |
||||
| Backplane | ||||
| 3 x 4-bay NVMe PCIe Gen5 | ||||
| Expansion Slots (PCIe 5.0) | ||||
| • 2 x PCIe X16 slots (FHHL) • 2 x OCP 3.0 bays (PCIe X16 width) |
||||
| System BIOS | ||||
| BIOS Type : AMI UEFI BIOS | ||||
| BIOS Features : • ACPI • PXE • WOL • AC loss recovery • BIOS recovery • IPMI 2.0 KCS mode interface • SRIOV • SMBIOS • TPM • Serial console redirection • PCIe hotplug |
||||
| On-board Devices | ||||
| NVMe : Intel® Emmitsburg PCH on-chip solution • M.2: 2 x M.2/M-Key/22110/2280 (PCIe Gen4) |
||||
| BMC : Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • HTML5 • Redfish • SMASH Support |
||||
| Network Controllers : Realtek RTL8211E for BMC dedicated management port |
||||
| Graphics : Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • PCIe Graphic/2D Controller • 1920x1200@60Hz 32bpp |
||||

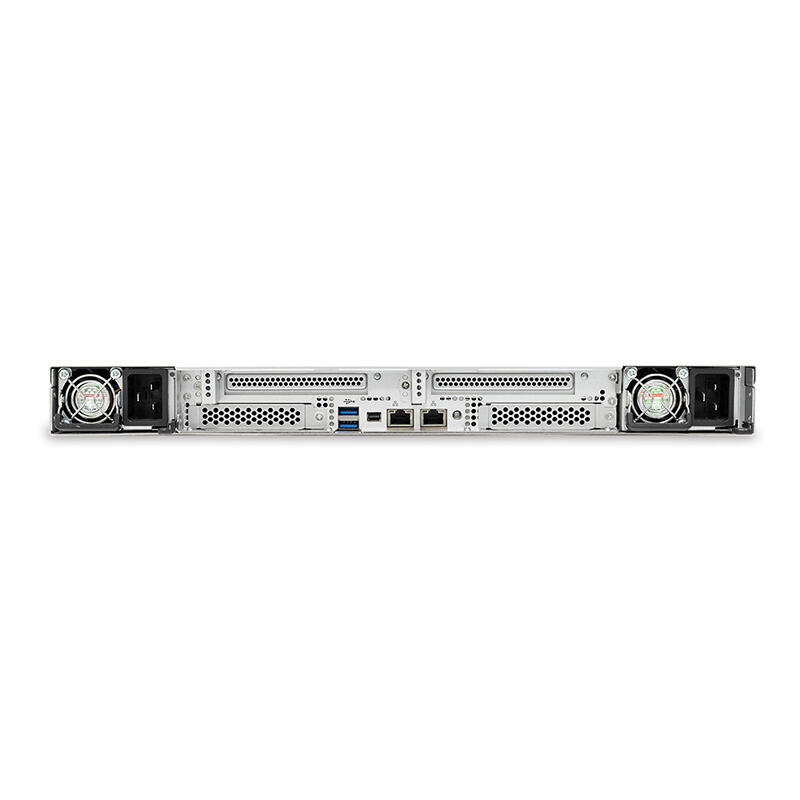

| Rear I/O | ||||
|
||||
| Power Supply | ||||
| • 1600W redundant power supply 80+ Platinum/Titanium • 2000W redundant power supply 80+ Platinum/Titanium |
||||
| System Cooling | ||||
| 8 x 40x56mm easy swap fans ABS material plastic air-duct (clear) | ||||
| Environmental Specifications | ||||
| • Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) • Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) • Storage operating humidity : 5%~95% non-condensing |
||||
| Gross Weight (w/PSU & Rail) | ||||
| • kgs : 20 • lbs : 44 |
||||
| Packaging Dimensions (W x D x H) | ||||
| • mm : 595 x 1115 x 239 • inches : 23.4 x 43.9 x 9.4 |
||||
| Mounting | ||||
| Standard : 28" tool-less slide rail |
| SKU Information | Description |
|---|---|
|
XP1-S102HK01 |
1U 12-bay 2.5" hot-swap, 3x PCIe Gen.5 NVMe 4-port backplane, 8x 4056 FAN, 1600W redundant power supply Platinum, Horkos motherboard, Intel Emmitsburg, DDR5 RDIMM x32, Intel PCH C741, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.5 (FHHL), 2x OCP 3.0 x16 Gen.5, 2x CPU heatsink TDP 250W, 33" slide rail, Gen-Z to PCIe cable cem (for add-on card support) x2, w/o bezel |
|
XP1-S102HK02 (Standard) |
1U 12-bay 2.5" hot-swap, 3x PCIe Gen.5 NVMe 4-port backplane, 8x 4056 FAN, 1600W redundant power supply Titanium, Horkos motherboard, Intel Emmitsburg, DDR5 RDIMM x32, Intel PCH C741, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.5 (FHHL), 2x OCP 3.0 x16 Gen.5, 2x CPU heatsink TDP 250W, 33" slide rail, Gen-Z to PCIe cable cem (for add-on card support) x2, w/o bezel |
|
XP1-S102HK03 |
1U 12-bay 2.5" hot-swap, 3x PCIe Gen.5 NVMe 4-port backplane, 8x 4056 FAN, 1600W redundant power supply Platinum, Horkos motherboard, Intel Emmitsburg, DDR5 RDIMM x32, Intel PCH C741, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.5 (FHHL), 2x OCP 3.0 x16 Gen.5, 2x CPU heatsink TDP 350W, 33" slide rail, Gen-Z to PCIe cable cem (for add-on card support) x2, w/o bezel |
|
XP1-S102HK04 |
1U 12-bay 2.5" hot-swap, 3x PCIe Gen.5 NVMe 4-port backplane, 8x 4056 FAN, 1600W redundant power supply Titanium, Horkos motherboard, Intel Emmitsburg, DDR5 RDIMM x32, Intel PCH C741, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.5 (FHHL), 2x OCP 3.0 x16 Gen.5, 2x CPU heatsink TDP 350W, 33" slide rail, Gen-Z to PCIe cable cem (for add-on card support) x2, w/o bezel |
