1200W Fully Modular 92+ PS2 Platinum PSU with 14 cm fan.

PCICASE Model No: CRS-C401200-92
Manufacturer Model No: CRS-C401200-92(GTIN NO:5060547731602)
UK Stock
Key Features
  • 1200W 92 Plus (Platinum) power efficency
  • Premium quality components to ensure increase the life-span
  • 14cm Fan for effective cooling
  • 5 Years Warranty
  • CB(62368-1) Certified
  • cTUVus( New UL for US & Canada) Certified
  • TUV
  • CCC
  • CE
  • Fully Modular

Complies With The Latest Intel EPS12V
Model CRS-C401200-92
Dimension  150*180*86mm (14cm Fan)
Protection OCP/OVP/UVP/OPP/SCP/OTP
Meet Eup Requirements 2013
Efficiency 1200W 80 Plus (Platinum)
AC INPUT 100V~240V
Input Frequency 47Hz~ 63 Hz
Active PFC Power Factor : >0.9

Output Power 1200W
Voltage +12V +3.3V +5V +5VSB -12V
Max Load 100.0A 25.0A 25.0A 3.0A 0.3A
Combined Power 1200W 130W 130W 15.0W 3.6W

Specification CRS-C401200-92


 CRS-C40xxxx-92 Specification

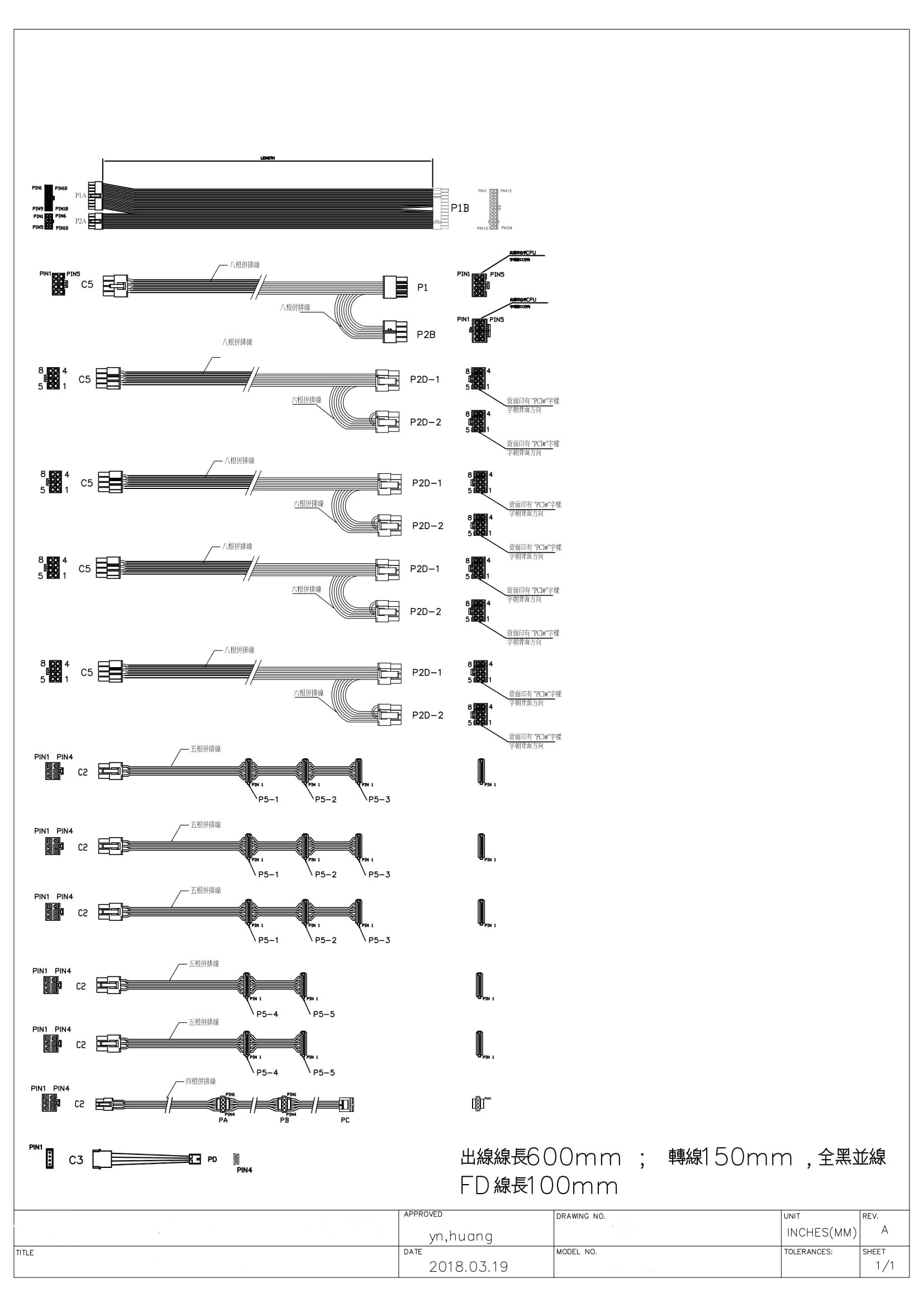

PSU Drawing/Wires


 Cable Layout

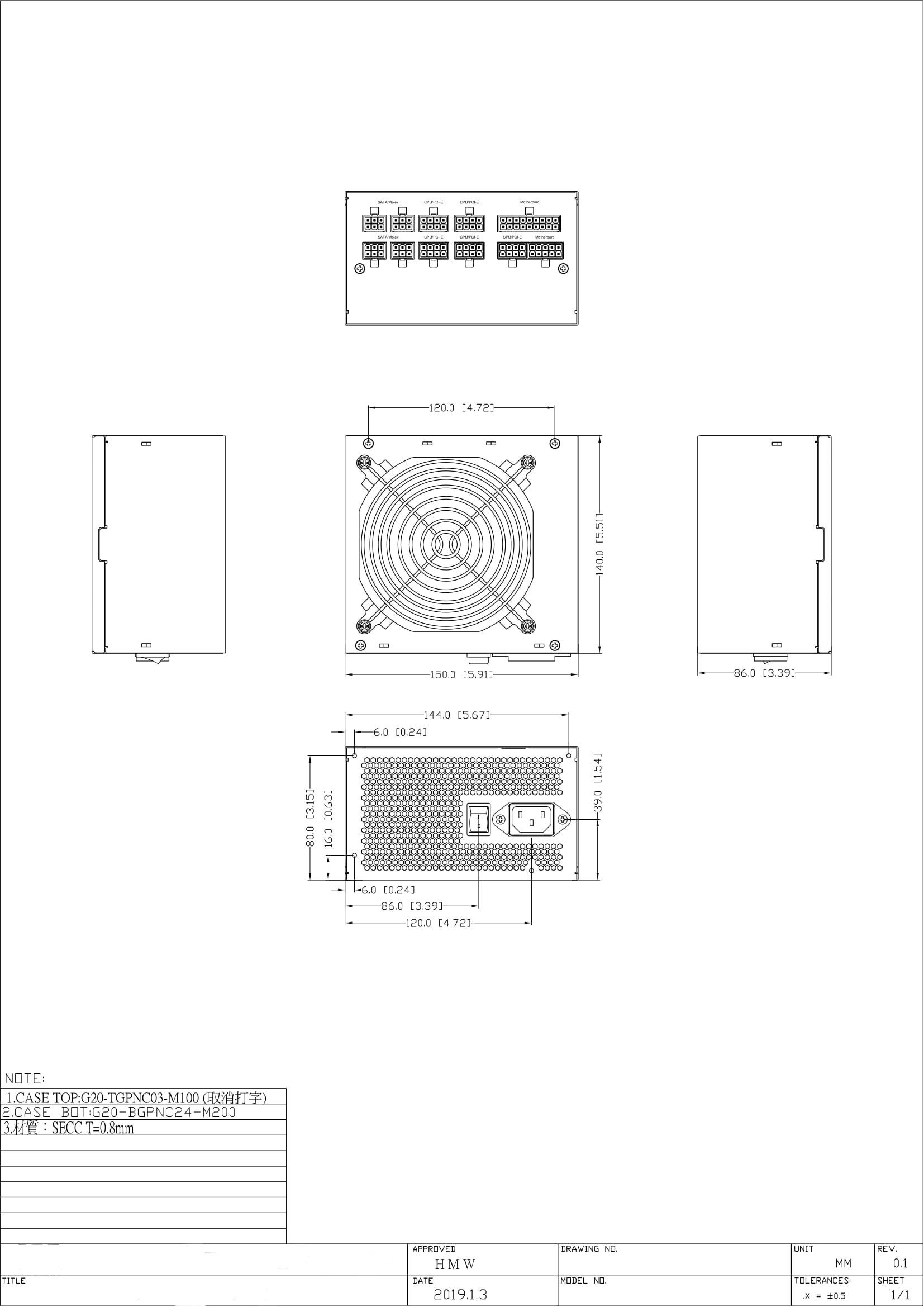

 PSU Drawing

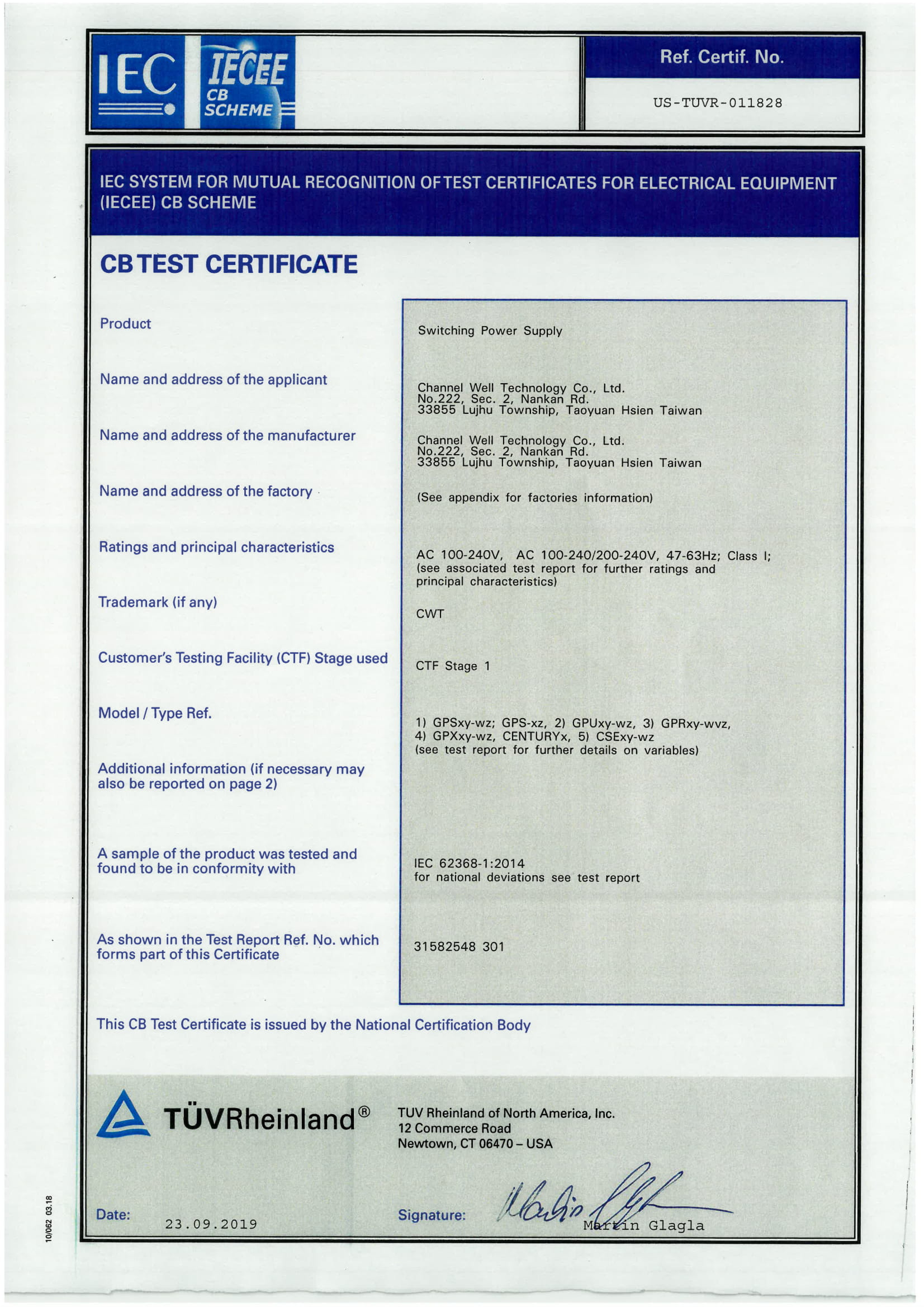

Certificate Page 1


 Certificate Page 1

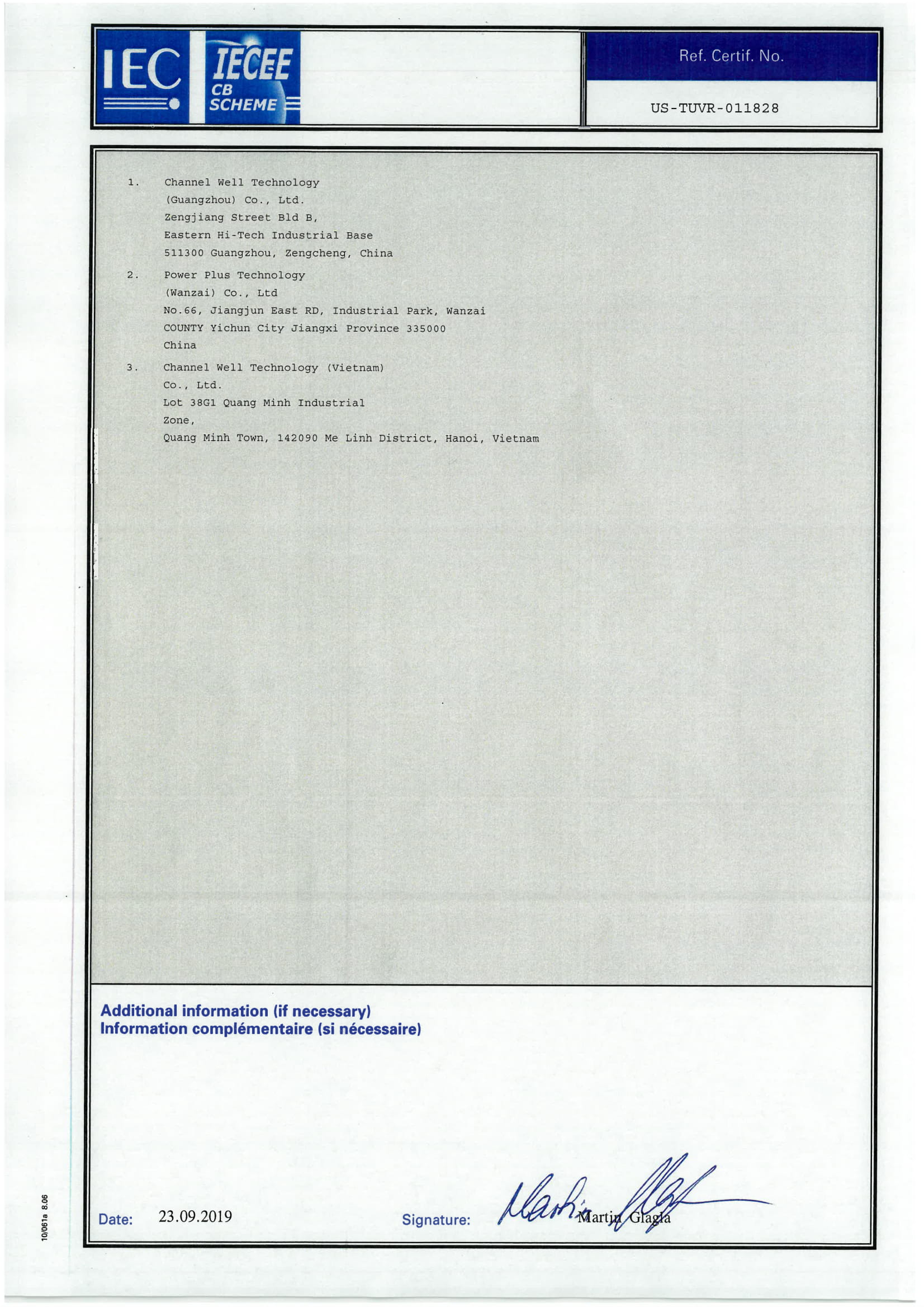

Certificate Page 2


 Certificate Page 2



PSU Photos CRS-C401200-92

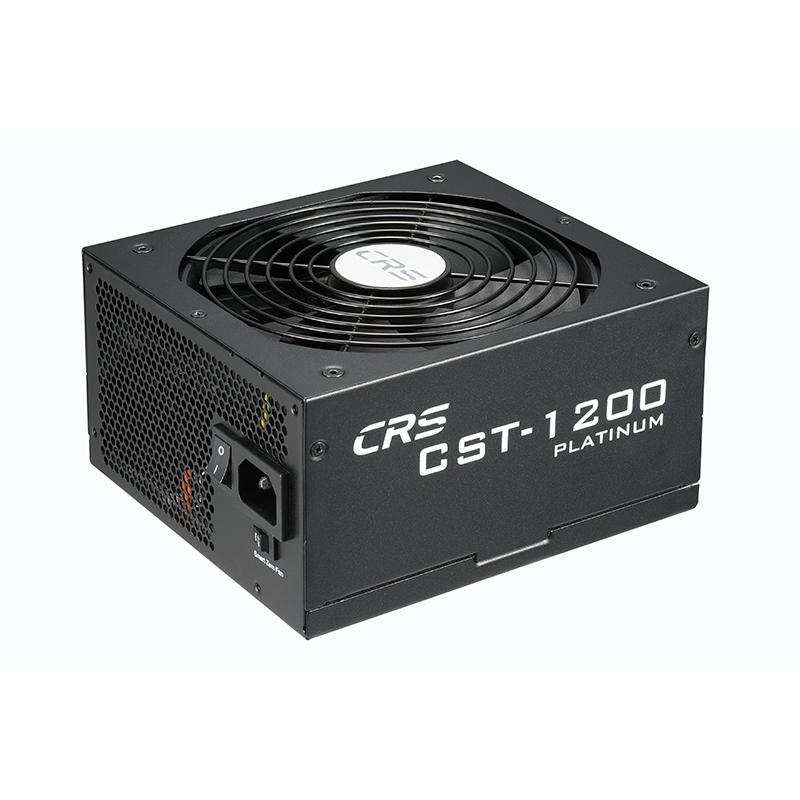

 CRS-C401200-92_Front_45

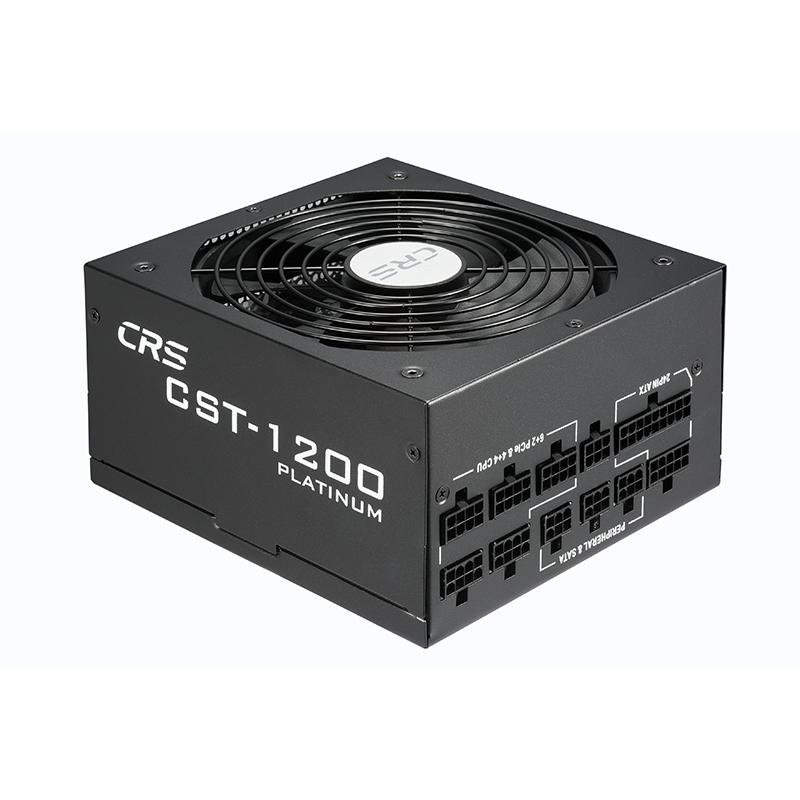

 CRS-C401200-92_Front_45_1

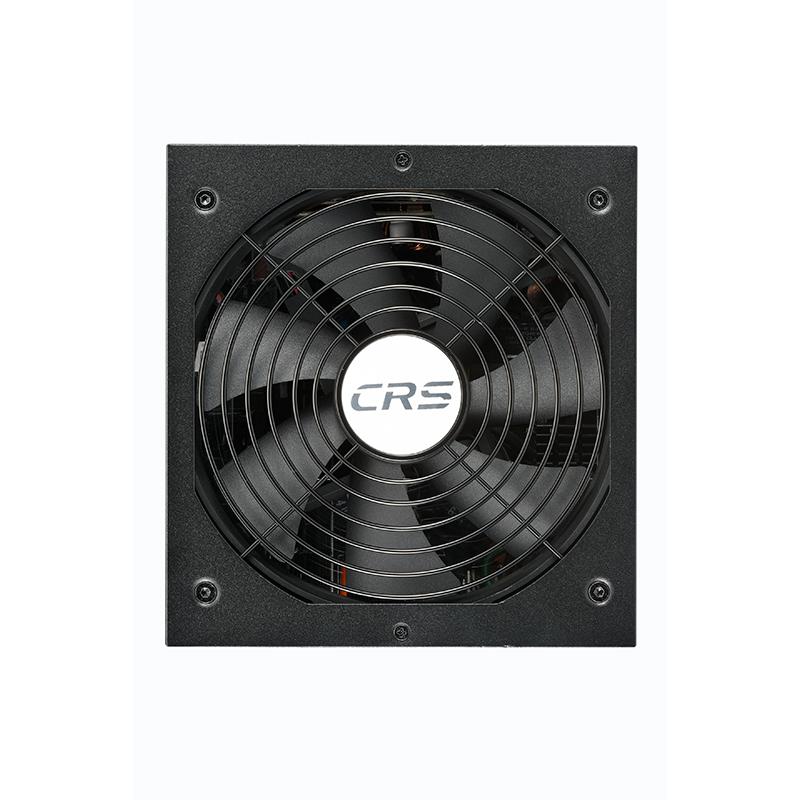

 CRS-C401200-92_Top

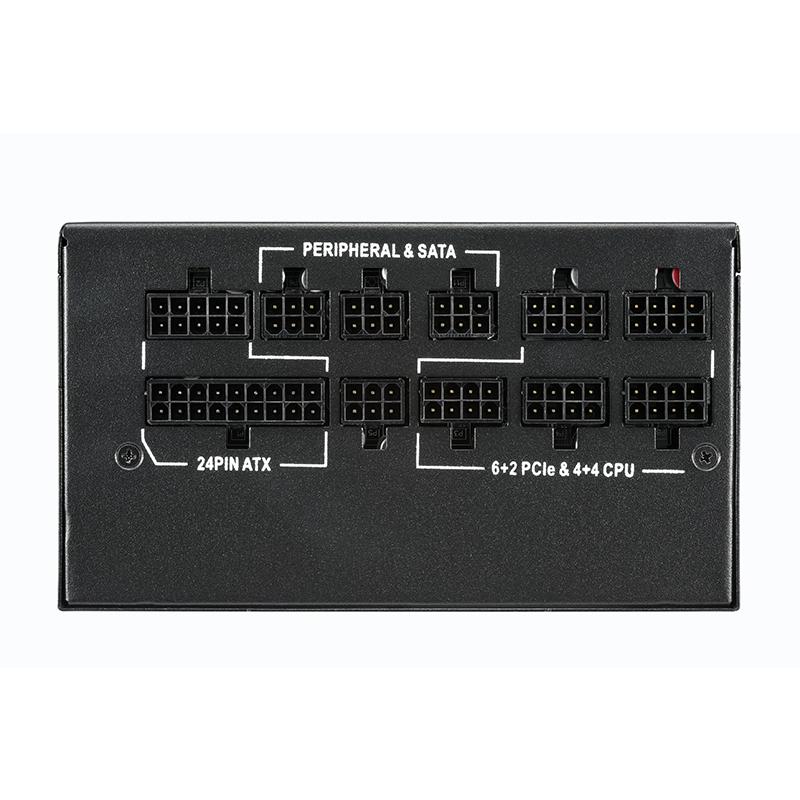

 CRS-C401200-92_Plug

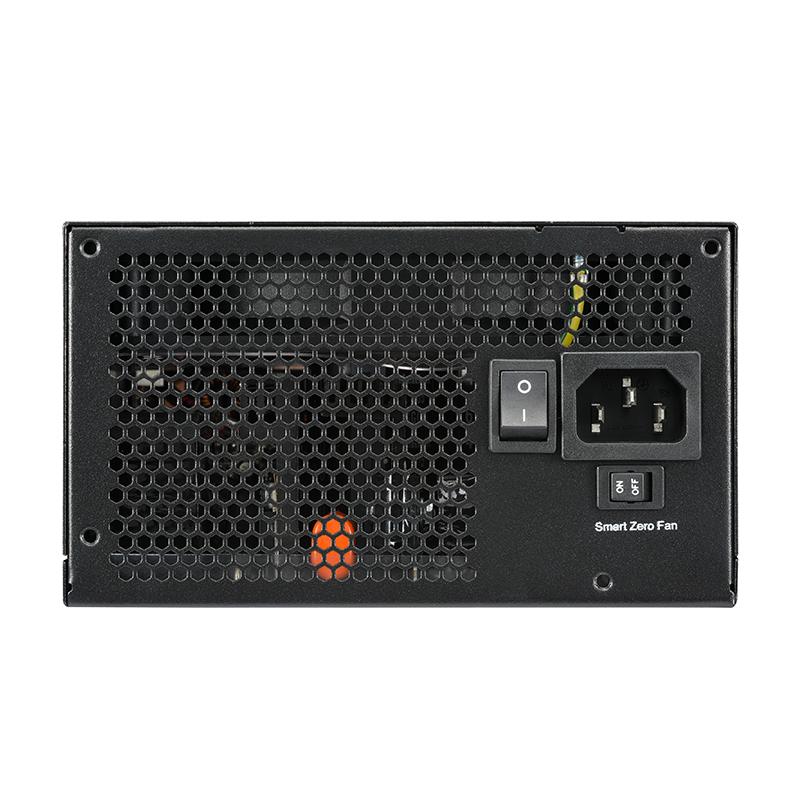

 CRS-C401200-92_Switches

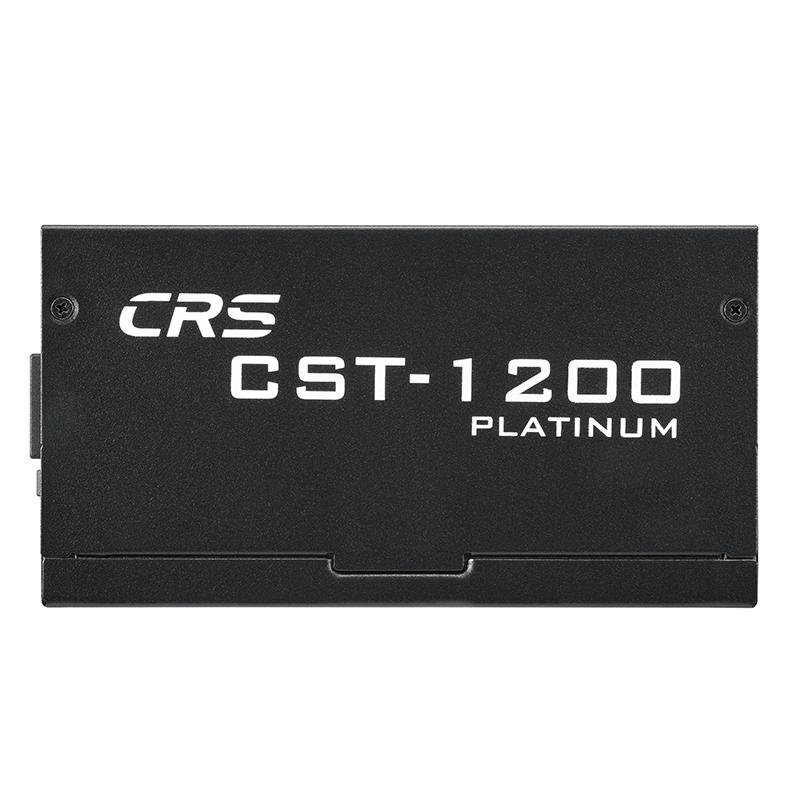

 CRS-C401200-92_Side

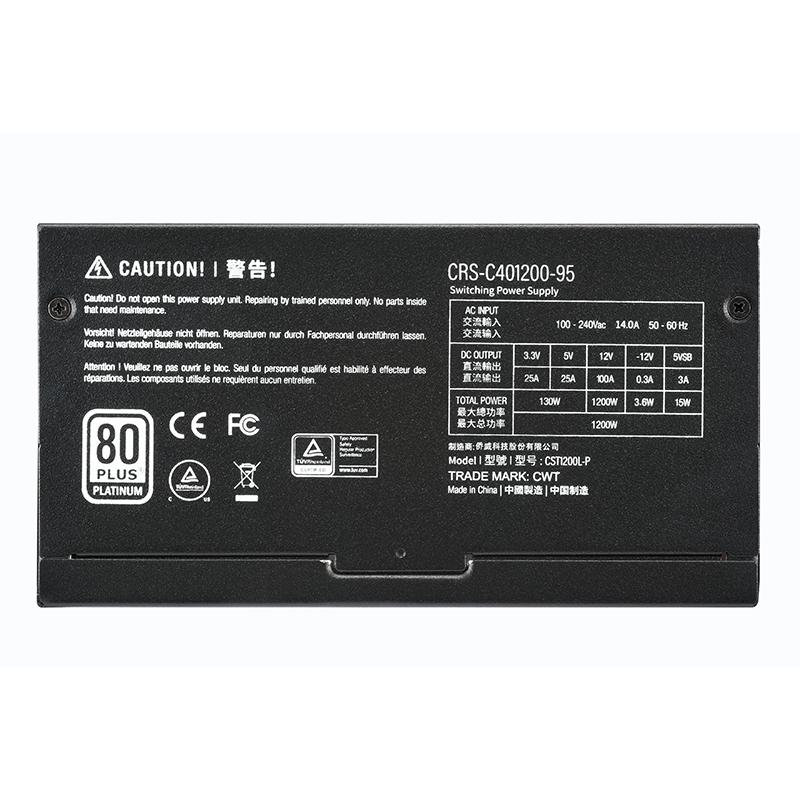

 CRS-C401200-92_Safety

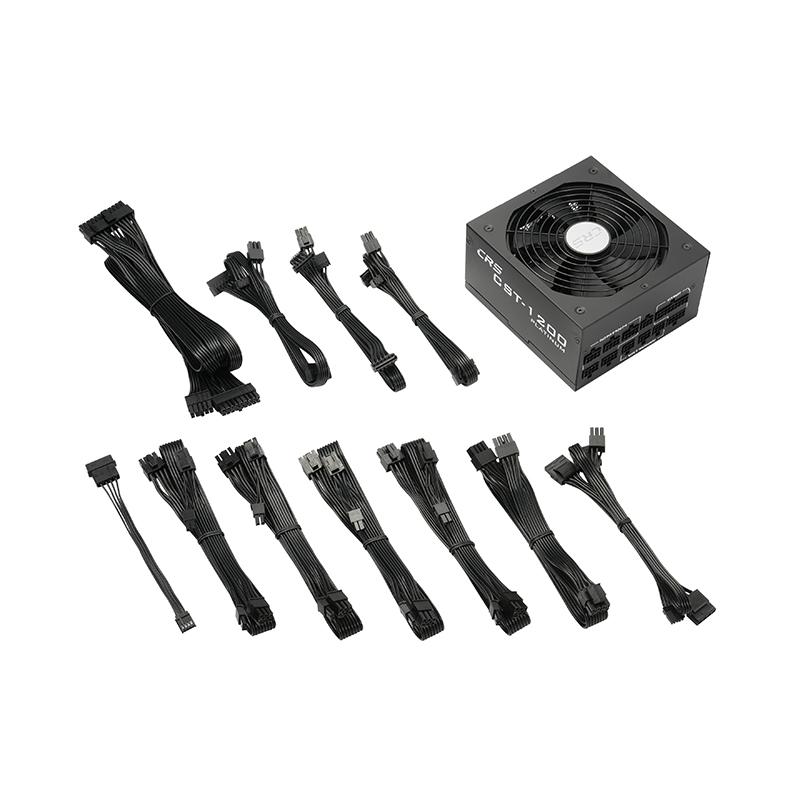

 CRS-C401200-92_Wire_Harness

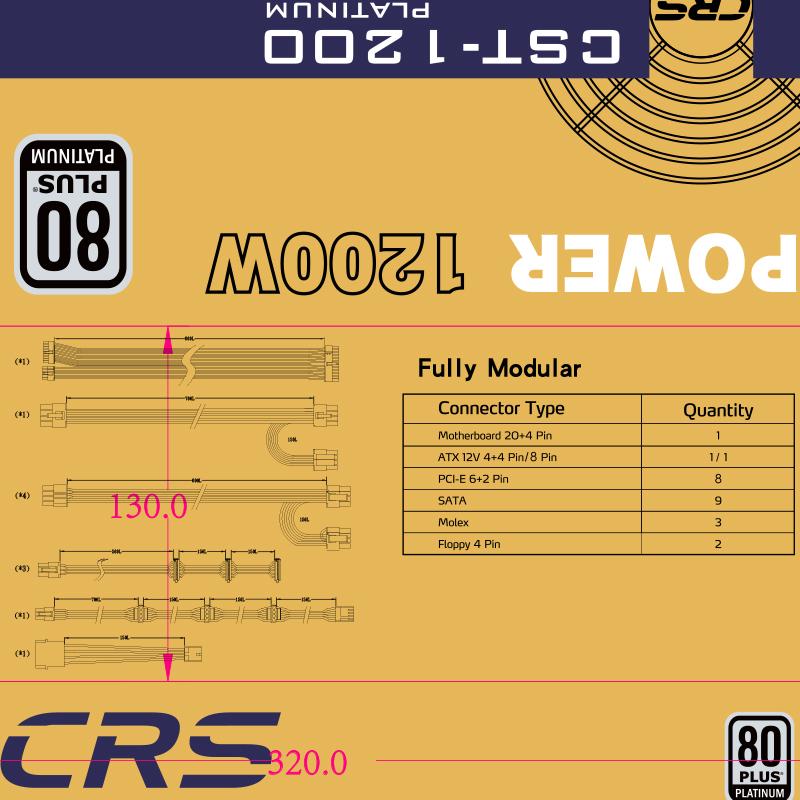

 CRS-C401200-92_Wire_Harness_Y
