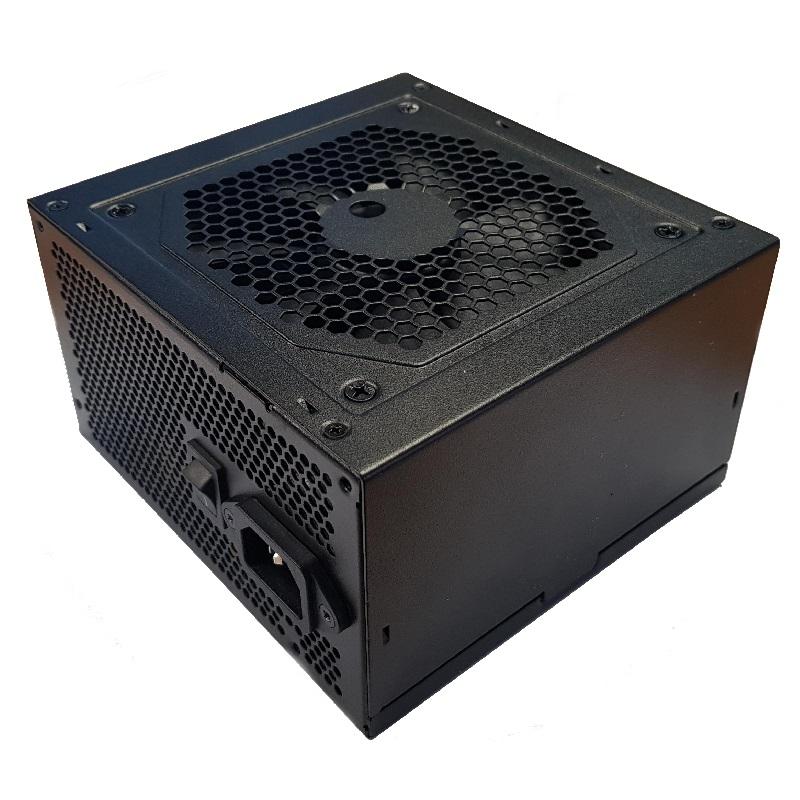

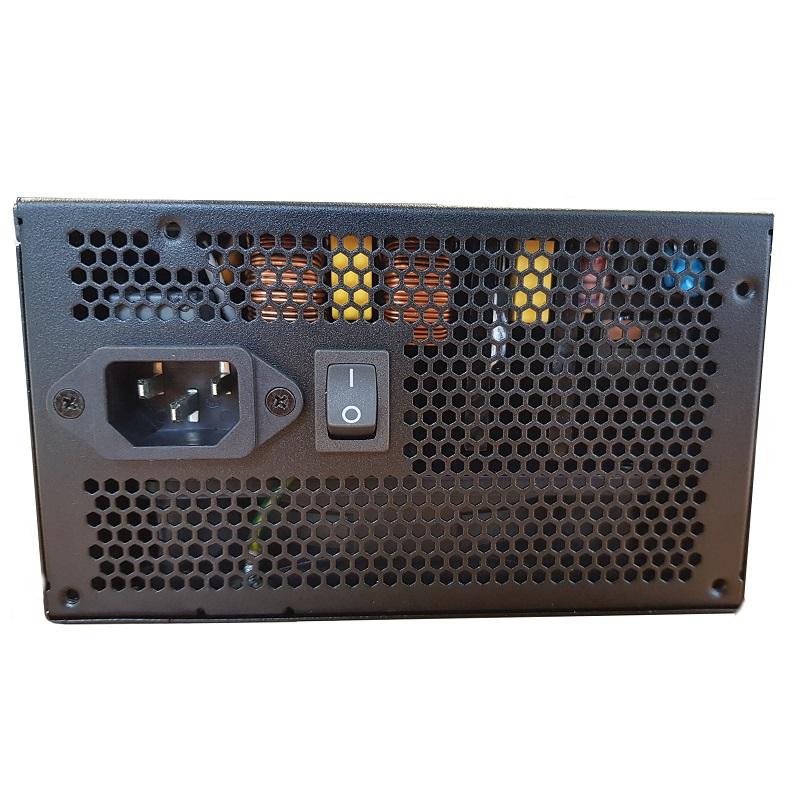

1050W Fully Modular PS2 80+ Platinum PSU with 14 cm fan.

PCICASE Model No: CRS-C401050-92
UK Stock
Key Features
  • 1050 80 Plus (Platinum) power efficency
  • Premium quality components to ensure increase the life-spa
  • 14cm Fan for effective cooling
  • CB(62368-1) Certified
  • UVus( New UL for US & Canada) Certified
  • cTUVus
  • TUV
  • CCC
  • CE
  • Fully Modular

Complies With The Latest Intel EPS12V
Model CRS-C401050-92
Dimension  150*160*86mm (14cm Fan)
Protection OCP/OVP/UVP/OPP/SCP/OTP
Meet Eup Requirements 2013
Efficiency 1050W 80 Plus (Platinum)
AC INPUT 100V~240V
Input Frequency 47Hz~ 63 Hz
Active PFC Power Factor : >0.9

Output Power 1050W
Voltage +12V +3.3V +5V +5VSB -12V
Max Load 83.33A 22.0A 22.0A 3.0A 0.3A
Combined Power 1050W 120W 120W 15.0W 3.6W
Specification CRS-C401050-92


 CRS-C40xxxx-92 Specification

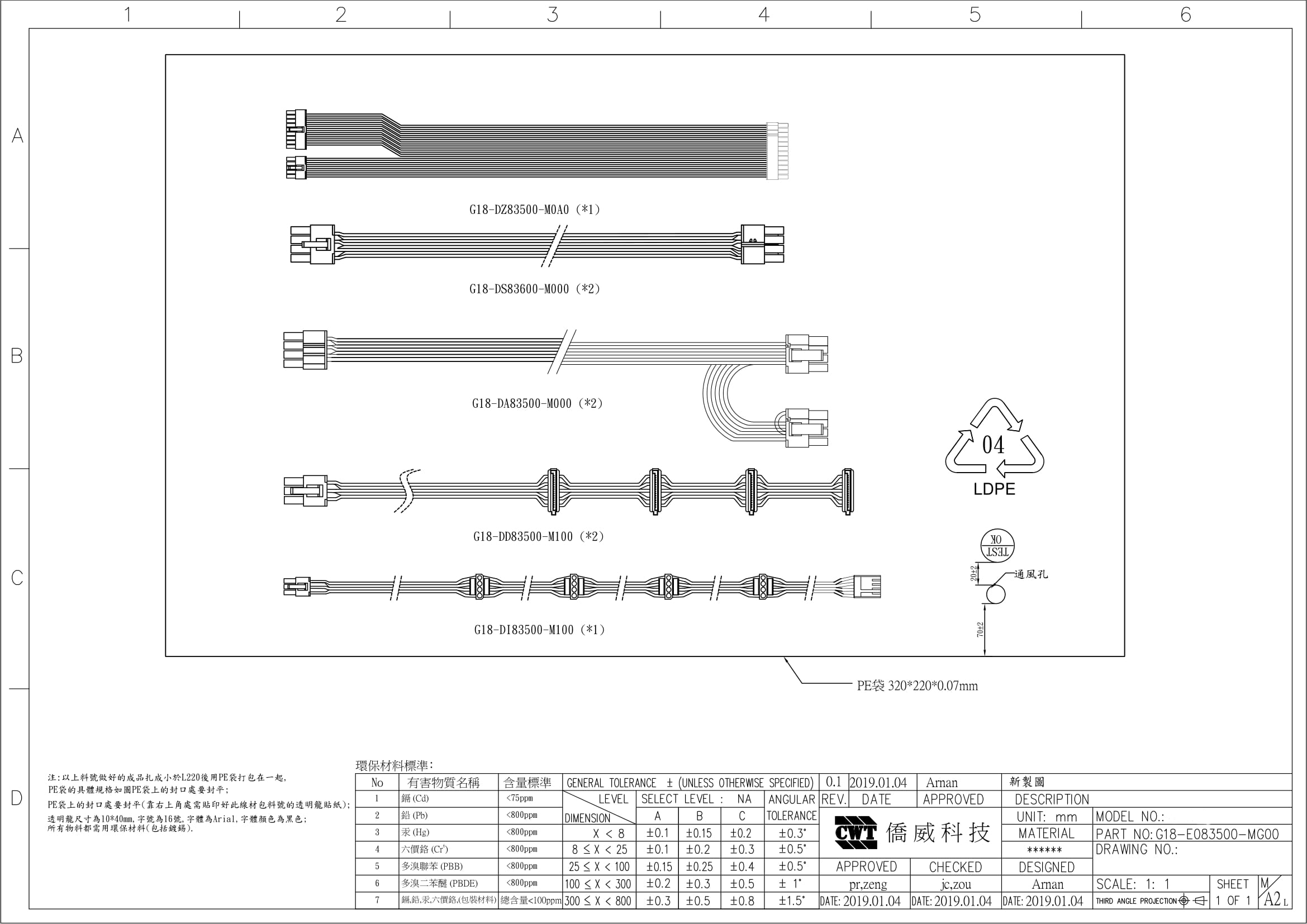

PSU Drawing/Wires


 Cable Layout

 PSU Drawing

Certificate Page 1


 Certificate Page 1



Certificate Page 2


 Certificate Page 2
