AIC & PCICase Cloud Expo 2017

Posted: 14 Feb 2017



Featured Products



Micro-Rack


    Applications



  • Datacenter Infrastructure
  • Cloud Datacenter
  • Academic Datacenter
  • Telecoms Datacenter

 Features





  • Intelligent power management
  • Complete integration for Datacenter
  • Flexibility on configuration
  • Remote Monitoring & Management
  • Rack-level wisdom cooling control
  • Integrated Rack-level node control & Management
  • Inspired by OCP
  • Excellent Power Efficiency Design
  • Serviceability and Easy Maintenance



Specification


Model Number IAG-R19M-00
16 RU (Rack Unit) height
Rack Dimension (WxDxH) 17.64"W x 37.4" D x 28" H
Nodes Content
  • Top 3U on rear side for Power shelf and busbar
  • Top 3U on front side for RMC and Switches

Power Requirements The RACKTAL offers unique rack specification for different power budgets from 8.1 kilowatt to 14.58 kilowatt


One centralised redundant power shelf

  • Support Power modules up to 5+1 redundant PSU
  • Power bank provides total 8KW (5+1) with 1620W module
  • Leverage originalrack cabinet AC power sources

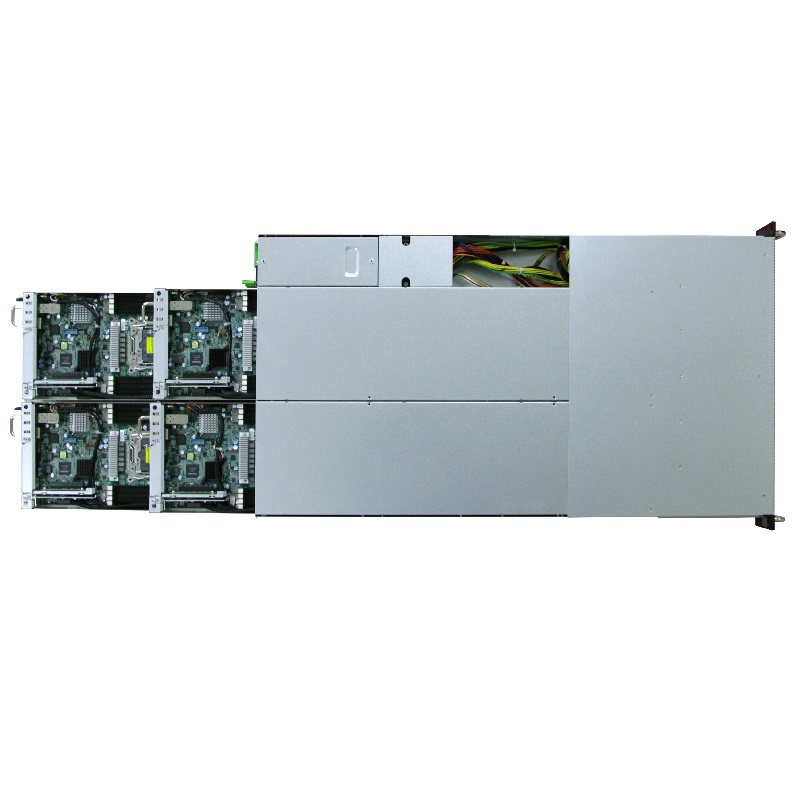

HP201-AD (2U 4 Node NVMe Barebones Storage Chassis with 24 x 2.5" (4 x NVMe + 2 x SAS/SATA per node)


  • 24 x 2.5" NVMe/SAS hybrid drive (6 per node)
  • 4 x NVMe (Purple Drive Bay) + 2 x SAS/SATA (Blue Drive Bay)
  • 6 x SAS/SATA (Purple Drive Bay and Blue Drive Bay
  • Motherboard:- 2U 4 x AIC Aidos base E5 Server Node (4 Nodes)
  • Processor Support:-  Intel Xeon Processors E5 2600 v3/v4 Product Family (Recommends 84W)
    QPI Speeds 9.6 GT/s, 8 GT/s, 7.2 GT/s
  • System Memory (per node)
    4 memory channels per CPU Socket (2DPC)
    16 DIMM Slots support:
    - 512GB DDR4 2133/1866 RDIMM DRx4
    - 128GB DDR4 2133/1866 RDIMM SRx4
    - 1024GB DDR4 2133/1866 LRDIMM QRx4
    - 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4
