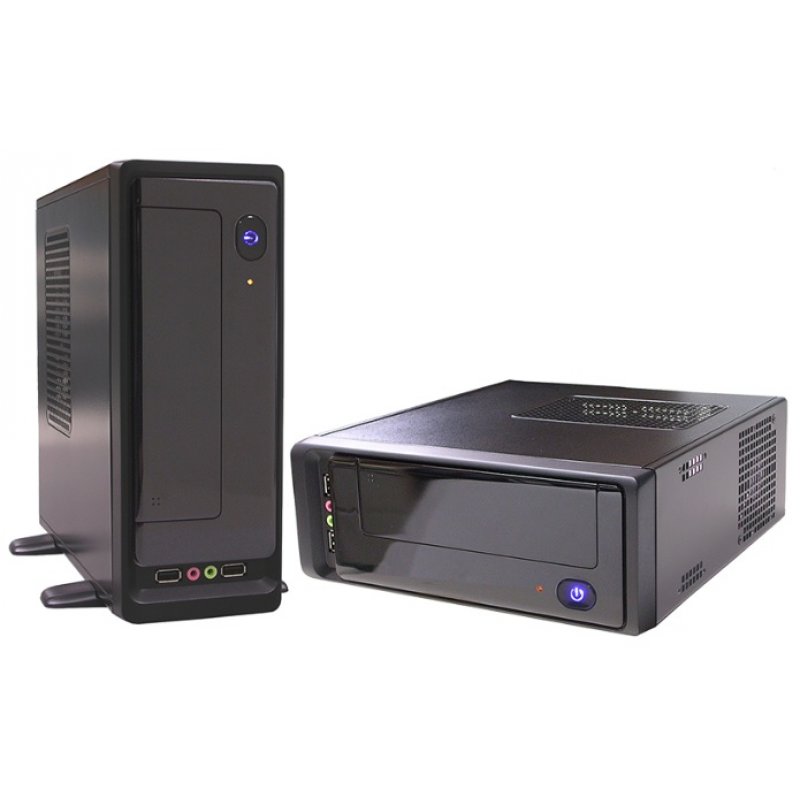

C81 mini-ITX Home Media PC Solution with 150 watt PSU

PCICASE Model No: CYS81-150FSS
UK Stock
Key Features
  • Well Suited For Space Critical Applications
  • Flexible Custom Builds Allow Busineses To Meet A Diverse Range Of Customers
  • Front Panel Connections for USB and HD Audio
  • 150 watt PSU Included



Technical Details
Form Factor mini-ITX Thin Client
System Board mini-ITX (17cmx17cm)


Drive Bays
For all drive bay configurations, please click here.

Cooling

1x 80x80x15mm DC fan

Power Supply
1U Flex ATX/150W AC as Standard.


Expansion Slots
1 x Full Height Via Riser or 1 x Low Profile (Please See Optional Product For Details)

Front Panel Connectors, Switches & Indicators
Power Switch YES
Reset Switch NO
USB 2 x USB2.0
Audio HD Audio
Firewire NO
Indicators Power and HDD Activity

Dimensions & Weights

Product Dimensions (WxDxH) 250x265x95mm (when laying flat)
Weight 3Kg


Package Contents

CYS81-150FSS
Feet
Slim Accessories
Brown Boxed


Height & Length Restrictions


M/B KOZ (Keep Out Zone) :
Means the component height limitation on board, including RAM, Processor and chips, FHS (Fan and Heat Sink)
57mm KOZ covering Intel boxed CPU and FHS
34mm KOZ means the highest component on board is about the same height as RAM (DDRII, DDRIII)



C8 PDF Configuration  - C8 Series PDF Configuration.pdf
