• 4U 60-Bay high density storage server
• Supports two Intel® Xeon Scalable Processors
• With Intel® Lewisburg C620 series Chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
• Two 10GbE SFP+ ports plus dedicated BMC management port
• Customizable to meet OEM/ODM requirements
SB403-VG, a 4U 60-Bay High Density Storage Server Solution, supports dual Intel® Xeon® Scalable Processors. Tool-less swappable SAS 12G backplane with built-in expander providing 60x 3.5" top-loading drive bays in the front and 10x 2.5” in the rear. SB403-VG provides 5x PCIe 3.0 slots for add-on cards and suitable for cold storage which requires the capacity for vast amount of data.
| Dimensions (W x D x H) |
| • mm : 435 x 953 x 175.7 • inches : 17.1 x 37.5 x 6.9 |
Motherboard |
| AIC Server Board Virgo |
Processor |
| Processor Support : Intel® Xeon® Scalable Processors |
| UPI Speeds: 9.6 GT/s, 10.4 GT/s |
| Socket Type : Socket P0 (LGA-3647 Socket) |
Chipset Support |
| Intel® Lewisburg C620 series PCH |
System Memory |
| • DDR4 2666 ECC RDIMM • Total 12 memory slots; 6 channel per CPU (1DPC) |
Front Panel |
| • Power on/off • System reset • System ID • 2 x USB 3.0 Type A connectors |
LEDs |
| • Power status • System alert • LAN active • Drive active • System ID |
Drive Bays |
| • External : 60 x 3.5” hot swap • Internal : 10 x 2.5” hot swap (rear) |
Backplane |
| 3 x 20-port 6G SAS backplanes with 28-PHY expander |
Expansion Slots |
| • 2 x PCIe Gen3 x16 • 1 x PCIe Gen3 x16 (x8 mode) • 3 x PCIe Gen3 x8 |
System BIOS |
| BIOS Type: • Insyde UEFI BIOS • SPI (Serial Peripheral Interface) FLASH Interface |
| BIOS Features : • ACPI • PXE • WOL • AC loss recovery • IPMI 2.0 KCS interface • SMBIOS • Serial console redirection • BIOS Boot Specification • BIOS Recovery Mode • SRIOV • iSCSI • TPM • PCIe NTB |
On-board Devices |
| SAS/ SATA : Lewisburg PCH on-chip solution • 8 x SATA 6.0 Gb/s (by 2 x mini-SAS) + 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin) • Broadcom SAS IOC SAS3008 supports up to 8 ports 12G SAS via 2 x SFF-8643 mini- SAS HD (optional) |
| IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support |
| Network Controller : • Intel® PCH (Lewisburg) Integrated 10GbE LAN Controller with dual 10GbE SFP+ + 2 x configurable ports support 10GbE (KR/SFI/XFI) or 1GbE (KX) (option) • Realtek RTL8201EL for BMC dedicated management port |
| Graphics : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • PCIe VGA/2D Controller • 1920x1200@60Hz 32bpp |
Rear I/O |
|
• LAN: 2 x 10GbE SFP+ ; 1 x GbE RJ45 dedicated to BMC management |
Power Supply |
| 1400W 1+1 redundant 80+ Platinum power supply |
System Cooling |
| Middle : 4 x 80x38mm PWM & low-power consumption hot swap fans; Rear: 2 x 60x38mm PWM easy swap fans |
System Management |
| • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support • HTML5 • Redfish |
Environmental Specifications |
| • Operating temperature : 0° - 35°C • System relative humidity : 5% - 95% non-condensing |
Gross Weight (w/PSU & Rail) |
| • kgs : 47 • lbs : 103.6 |
Packaging Dimensions (W x D x H) |
| • mm : 603 x 1191 x 404 • inches : 23.7 x 46.9 x 15.9 |
Mounting |
| Standard : 25" tool-less slide rail |
| SKU Information | Description |
|
XP1-S403VG02 (Standard) |
4U 60-bay storage server, 3x 20-port 12G EOB backplane, 2U Acbel 1600W platinum redundant power supply (200V~240V), Virgo motherboard, Intel Purley, 2x 7mm internal, 2x 2.5" hot-swap OS, ATX PWR, DDR4 RDIMM x12, Intel PCH C622, 2x 10G SFP+, SAS3008 IOC, EATX, 2x CPU heatsink, 37" slide rail, w/o bezel |
|
XP1-S403VG03 (Optional) |
4U 60-bay storage server, 3x 20-port 12G EOB backplane, 2U Acbel 1600W platinum redundant power supply (100~240V), rear 6x 2.5" SATA/SAS + 4x NVMe external hot-swap drive bays, Virgo motherboard, Intel Purley, 2x 7mm internal, 2x 2.5" hot-swap OS, ATX PWR, DDR4 RDIMM x12, Intel PCH C622, 2x 10G SFP+, SAS3008 IOC, EATX, 2x CPU heatsink, 37" slide rail, w/o bezel |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| Fan | FC-000000093 | Middle: 8038 fan module |
| Fan | FC-000000097 | Rear: 6038 fan module |
| Backplane | BBPKHD40012B | 20-port 12G SAS backplanes with 28-PHY expander |
| Power Housing | PH-000000080 | 1600W/PMBUS1.2 |
| Power Module | PM-000000010 | CRPS 1600W redundant |
| Slide rail | H5533T100001 | 37" Tool-less Slide Rail |
| Optional Parts List | Part Number | Description |
| no Bezel |
* All specifications are subject to change without notice.
| Datasheet | SB403-VG Datasheet |
|
|
|

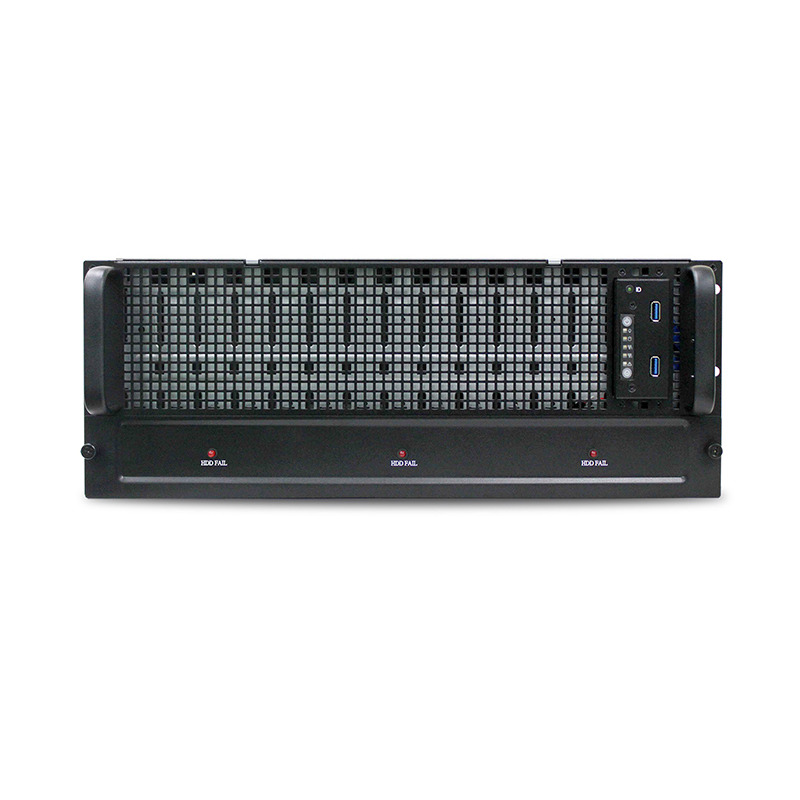

| Product Images | SB403-VG (Front 45 & Front) |

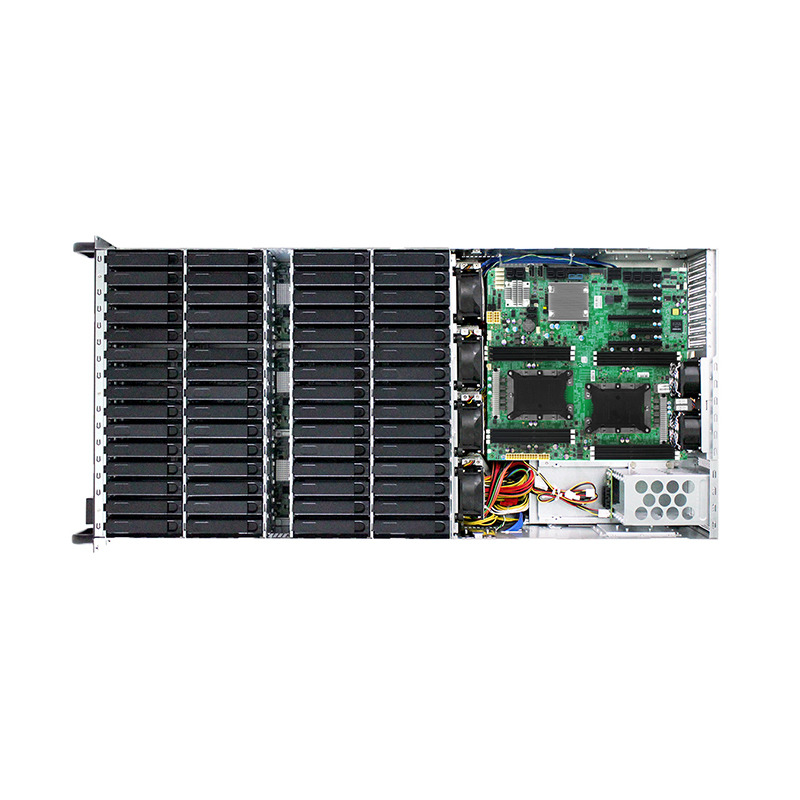

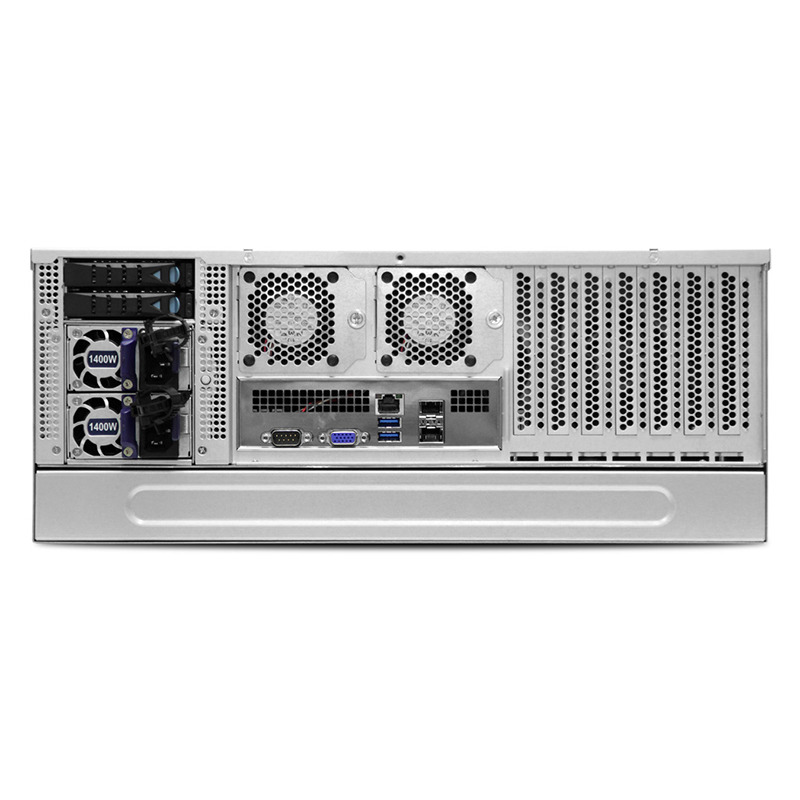

| Product Images | SB403-VG (Top&Rear) |
| SB403-VG | Manual/AVL/Firmware |
|
|
