4U 12G 24 x 3.5" Barebone Storage Chassis with AIC Virgo Motherboard

PCICASE Model No: SB401-VG

Manufacturer Model No: SB401-VG(XP1-S401VG02)

7-28 Day Delivery

Key Features

• 4U 24-Bay general purpose storage server
• Supports two Intel® Xeon Scalable Processors
• With Intel® Lewisburg C620 series Chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
• Two 10GbE SFP+ ports plus dedicated BMC management port
• Customizable to meet OEM/ODM requirements

Features & Benefits

SB401-VG, a 4U 24-Bay General Purpose Storage Server Solution, supports dual Intel® Xeon® Scalable Processors. Tool-less design SAS 12G backplane with options for built-in expander or passive board which are providing 24x 3.5" drive bays in the front and 2x 2.5” in the rear. SB401-VG provides 5x PCIe 3.0 slots for add-on cards.

Dimensions (W x D x H)

• mm : 430 x 680 x 174.3
• inches : 16.9 x 26.8 x 6.9

Motherboard

AIC Server Board Virgo

Processor

Processor Support : Intel® Xeon® Scalable Processors

UPI Speeds: 9.6 GT/s, 10.4 GT/s

Socket Type : Socket P0 (LGA-3647 Socket)

Chipset Support

Intel® Lewisburg C620 series PCH

System Memory

• DDR4 2666 ECC RDIMM
• Total 12 memory slots; 6 channel per CPU (1DPC)

Front Panel

• Power on/off
• System reset
• System ID
• 1 x USB 3.0 Type A connector

LEDs

• Power status
• System alert
• LAN active
• Drive active
• System ID

Drive Bays

• External : 24 x 3.5” hot swap
• Internal : 2 x 2.5” hot swap (7mm, rear)

Backplane

• 1 x 24-port 12Gb SAS backplane with 36-PHY expander and 3 SFF-8643 connectors
• 1 x 24-port 12Gb SAS passive backplane with 6 SFF-8643 + 4 x NVMe U.2 connectors (BTO)
• 1 x 24-port 12Gb SAS backplane with 6 SFF-8643 connectors (BTO)

Expansion Slots

• 2 x PCIe Gen3 x16
• 1 x PCIe Gen3 x16 (x8 mode)
• 3 x PCIe Gen3 x8

System BIOS

• Insyde UEFI BIOS
• SPI (Serial Peripheral Interface) FLASH Interface

BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe NTB

On-board Devices

SAS/ SATA :
Lewisburg PCH on-chip solution
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS) + 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
• Broadcom SAS IOC SAS3008 supports up to 8 ports 12G SAS via 2 x SFF-8643 mini-SAS HD (optional)

IPMI :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support

Network Controller :
• Intel® PCH (Lewisburg) Integrated 10GbE LAN Controller with dual 10GbE SFP+ + 2 x configurable ports support 10GbE (KR/SFI/XFI) or 1GbE (KX) (option)
• Realtek RTL8201EL for BMC dedicated management port

Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

Rear I/O

• LAN: 2 x 10GbE SFP+ ; 1 x GbE RJ45 dedicated to BMC management
• USB: 2 x USB 3.0 double-stack Type A
• VGA: 1 x external VGA port
•Serial Port: 1 x external DB-9 COM port

Power Supply

1200W 1+1 redundant power supply 80+ Platinum

System Cooling

3 x 120x25mm PWM hot swap fans

System Management

• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish

Environmental Specifications

• Operating temperature : 0° - 35°C
• System relative humidity : 5% - 95% non-condensing

Gross Weight (w/PSU & Rail)

• kgs : 35
• lbs : 77

Packaging Dimensions (W x D x H)

• mm : 605 x 920 x 406
• inches : 23.8 x 36.2 x 16

Mounting

Standard : 28" tool-less slide rail

SKU Information

Description

XP1-S401VG02

(Standard)

4U 24-bay storage server, 1x 24-port 12G SAS EOB backplane, 1200W platinum redundant power supply, 2x 7mm hot-swap OS, Virgo, Intel® Xeon® Scalable Processors, 12x ATX PWR/DDR4 2933 ECC RDIMM, Intel PCH C622, 2x 10G SFP+ SAS3008 IOC/EATX, 2x CPU heatsinks, 28" slide rail, w/o bezel

FRU Information
Standard Parts List	Part Number	Description
Fan	FC-000000091	120x 25mm fan module
Backplane	BBPJHD40001A	24-port 12Gb SAS backplane with 36-PHY expander and 3 SFF-8643 connectors
Power Supply Housing	PH-000000010	1200W platinum redundant power supply housing
Power Supply Module	PM-000000014	1200W platinum redundant power supply module
Slide Rail	H5521T200005	28" Tool-less slide rail

* All specifications are subject to change without notice.

Datasheet	SB401-VG Datasheet
	SB401-VG Datasheet.pdf
Product Images	SB401-VG (Front 45 Degrees)

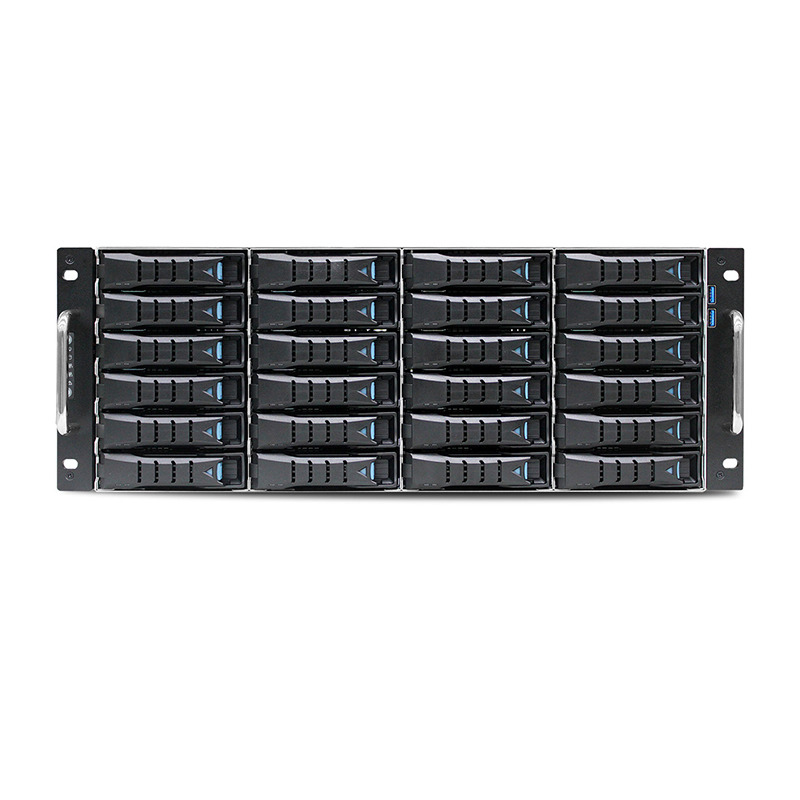

Product Images	SB401-VG (Front)

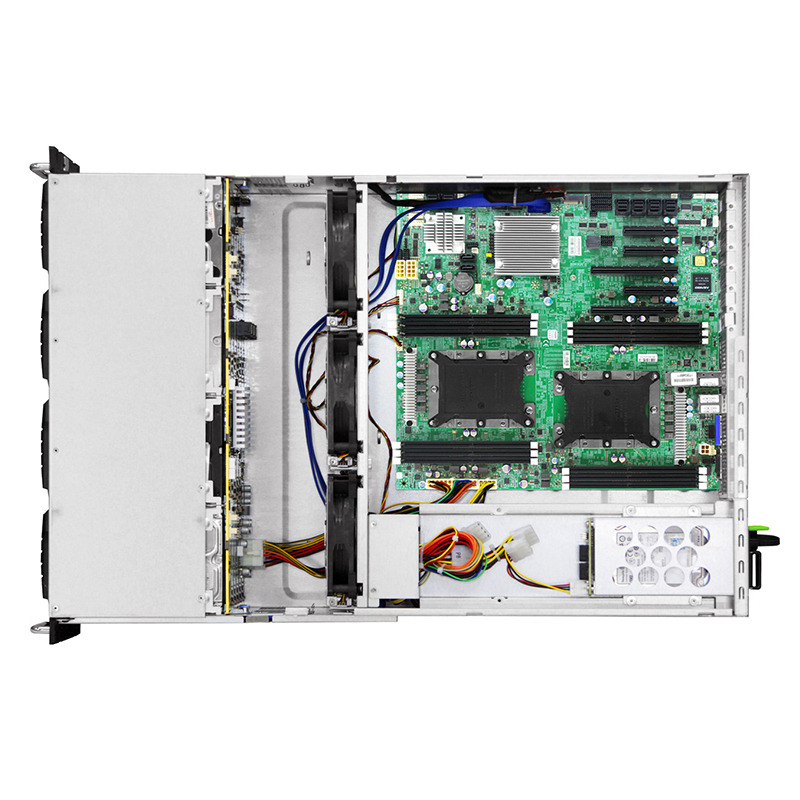

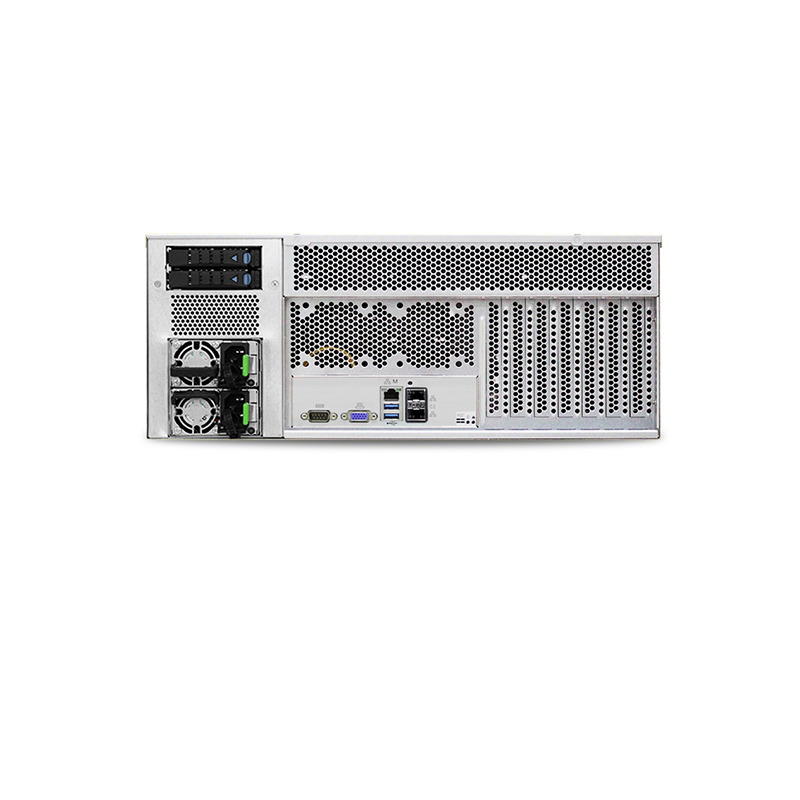

Product Images	SB401-VG (Top&Rear)
	SB401-VG_Topopen.jpg SB401-VG_Rear.jpg
Product Manual/AVL/Firmware	SB401-VG
	SB401-VG_User's Manual Virgo_AVL SB401-VG_BIOS_VIRG1070 SB401-VG_BMC_SB401VG010201
