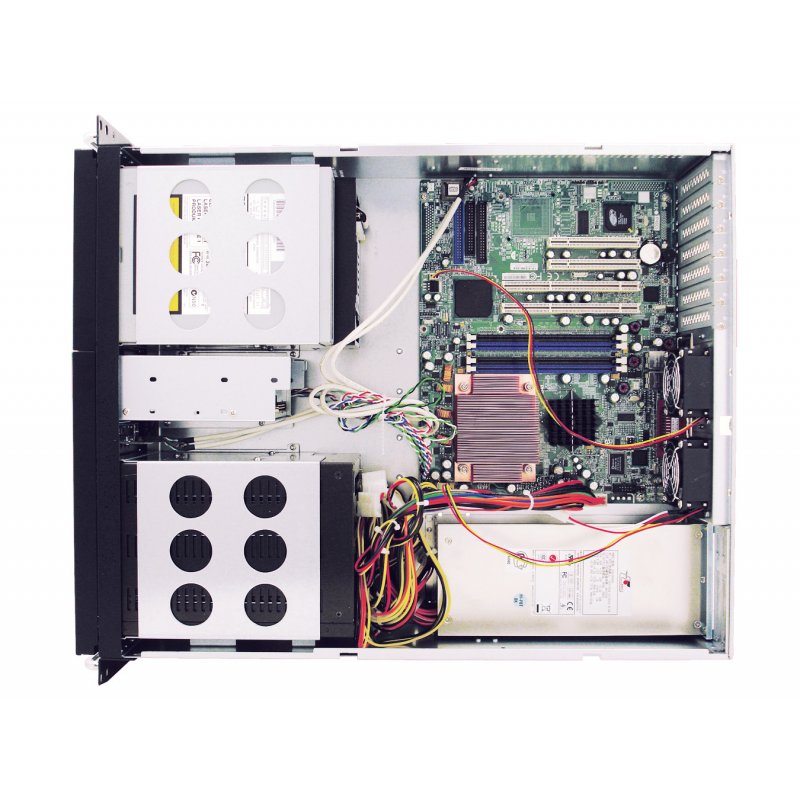

3U Rugged Medium Chassis 6 x 5.25" External + 1 x 3.5" External + 1 x 3.5" Internal.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 533.4 x 133.4
• inches : 19 x 21 x 5.25

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Front Panel : Black

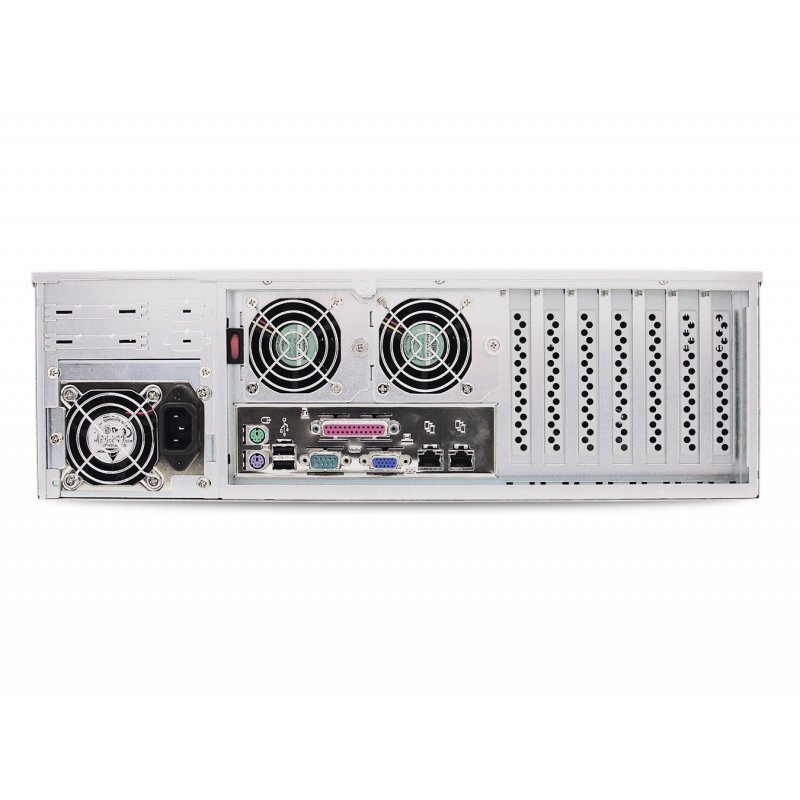

Cooling
Standard :
• Rear : 2 x 60x25mm easy swap fans

Option :
• Rear : 2 x 60x38mm fans

Power Supply
Please see Optional Product for details * Industrial PSU Only

Expansion Slots
7

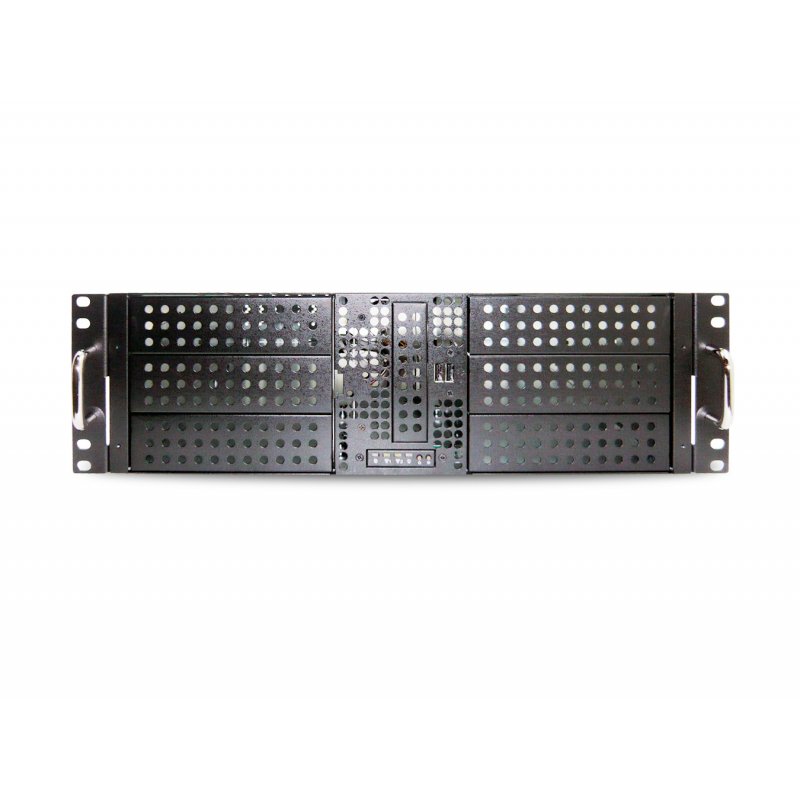

Front Panel
• Power on/off
• System reset
• 2 x USB ports

LED Indicators
• Power
• Drive

System Board
Up to 12”(W) x 10.5”(D) ATX/SSI CEB compliant MB

Drive Bays
• External : 6 x 5.25” & 1 x 3.5”
• Internal : 1 x 3.5”

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/o PSU & Rail)
• kgs : 15
• lbs : 33

Package Dimension (W x D x H)
• mm : 590 x 715 x 306
• inches : 23.2 x 28.1 x 12

Cubic Feet
4.3

Container Load Quantity
• 20’ : 220
• 40’ : 455
• 40’ H : 550

Mounting
Please see Optional Product for details
* All specifications are subject to change without notice.

RAILS

POWER SUPPLIES

BACKPLANE MODULES/ MOBILE RACKS

BAY CONVERTORS

FRONT PANELS

HEATSINKS

---







Rails



AIC 2U-4U 26inch Slider Rails for Extended Chassis

Part code: IPC-SY002H

---

AIC 2U-4U 20inch Slider Rails for Short/Midsize Chassis
Part code: IPC-SY001H



REDUNDANT



2/3U 650W x 2 Industrial Redundant PSU 80+ Gold
Part code: PIZ2065R-90



---

2/3U 800W x 2 Short Industrial Redundant PSU 92+ Platinum with Pmbus

Part code: PIZ2080R-92-ACB

---

2/3U 800W x 2 Short Industrial Redundant PSU 80+ Gold with Pmbus
Part code: PIZ2080R-90



---



2/3U 800W x 2 Extra Short Industrial Redundant PSU 92+ Platinum with Pmbus

Part code: PIZ2080R-92-ACB-ES

SINGLE

2U 500W Industry single PSU 80+ Bronze
Part code: PIZ2050S-85

---

2U 550W Industry single PSU 85+ Bronze

Part code: PIZ2055S-85-ACB

---

2U 650W Industry single PSU 90+ Gold
Part code: PIZ2065S-90

---

2U 650W Single 80+ Gold PSU
Part code: CPS-6512-2A1

Backplane Modules/Mobile Racks

 2.5" HDD BACKPLANE MODULE (12GB/S)

1 x 3.5" to 2 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Trayless Design

Part code: N-20SS

---

1 x 5.25" to 4 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-49SS

---

1 x 5.25" drive bay to 2x2.5" SFF hot swap bays, supporting 2NVMe PCIe SSDs

Part code: N-29NVMe-15

1 x 5.25" drive bay ,supporting 4x2.5" NMVe U.2 HDD(up to 15mm)

Part code: N-49NVMe

---

2.5" HDD BACKPLANE MODULE (6GB/S)

3.5" HDD MOBILE RACK (12GB/S)

1 x 5.25" to 1 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-16TM

Bay Convertors


1 x 5.25" Dynamic Conversion Bracket.
Part code: IPC-SDFD135225

---





2 x 5.25" to 3 x HDD Hard Drive Cooler

Part code: CCSS06B

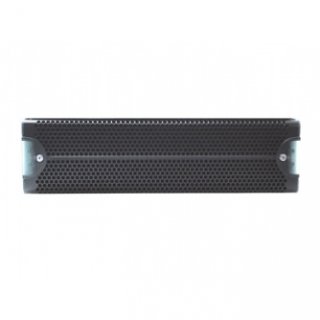

Front Panel

Heatsinks (Active/Passive)

1U Active CPU Cooler (AM2/AM3 Socket)
Part code: CJ-JAC7209C

---





1U PASSIVE CPU COOLERS

1U Passive CPU Cooler (K8)
Part code: CJ-JAC0807C

---

1U Passive CPU Cooler (LGA 1150/1151/1155/1156)
Part code: CJ-BK1156P


---

1U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B04C


---

1U Passive Heatsink (LGA-775)
Part code: CJ-950918-1


---



2U ACTIVE CPU COOLERS



2U Multi-Socket Active CPU Cooler (Intel LGA-1366/1356/1151/1150/1155/1156/775 compatible)
Part code: CJ-JYC9L06AGC-A

2U PASSIVE CPU COOLERS

2U Passive CPU Cooler (LGA 1151/1150/1156/1155)
Part code: CJ-JAC0L11A

---



2U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B40A


---
