2U 12G Short Storage Server Chassis 12 x 3.5" Hot-Swap + 2 x 7mm 2.5" Rear Hot-Swap with 550W x2 Redundant PSU (Rails Included) *7 x Low Profile * Expander On Board

PCICASE Model No: IPC-C2ETS-R55-EOB-12G-LP
Manufacturer Model No: RSC-2ETS (AIC SKU: XE1-2ETS0-01)
UK Stock

Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Supports power cycling on single drive
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• One front access USB 3.0 port

Features & Benefits

IPC-C2ETS-R55-EOB-12G-LP is a T series 2U 12-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C2ETS-R55-EOB-12G-LP supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and shorter depth dimension, offering a cost-effective solution ideally suited for a broad range of applications.  (Power supply is included. Motherboard is not included.)

Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Supports power cycling on single drive
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• One front access USB 3.0 port

Dimensions (W x D x H)
• mm: 430 x 560 x 88
• inches: 17 x 22 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel: Black
Cooling
3 x 80x38mm PWM & low-power consumption hot swap fans
Power Supply
550W 1+1 redundant power supply PMBus 1.2 80+ Platinum
Expansion Slots
7 low-profile
Front Panel
• System power on/off
• System reset
• 1 x USB 3.0 port
LED Indicators
• Power
• LAN
• Drive
• Alert
System Board
12”(W) x 9.6”(D) ATX
Drive Bays
External :
• 12 x 3.5” hot swap
Options :
• 2 x 2.5” (7mm) hot swap
• 1 x 2.5” (15mm) internal
Backplane
Options :
• 1 x 12-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors
• 1 x 12-port SATA/SAS backplane with 3 x SFF-8643 connectors
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
• kgs: 23.5
• lbs: 51.8
Package Dimension (W x D x H)
• mm: 645 x 835 x 224
• inches: 25.4 x 32.9 x 8.8
Cubic Feet
5.38
Container Load Quantity
 20’: 200
 40’: 420
 40’ H: 450
Mounting
Standard: 28” tool-less slide rail
SKU Information Description

XE1-2ETS0-01

(Standard)

2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G expander controller on backplane (3X series)
XE1-2ETS0-02 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G passive backplane

XE1-2ETS0-08

(Standard)

2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G expander controller on backplane (35X series)

M06-00128-33

(Optional)

Suitable for RSC-2AT & RSC-2ET/RSC-2ETS(2ET DOOR ASS,Y)

* All specifications are subject to change without notice.

Datasheet IPC-C2ETS-R55-EOB-12G Datasheet


 IPC-C2ETS-R55-EOB-12G Datasheet.pdf

Product Images IPC-C2ETS-R55-EOB-12G (45 degree)


 IPC-C2ETS-R55-EOB-12G (45 Degree).jpg

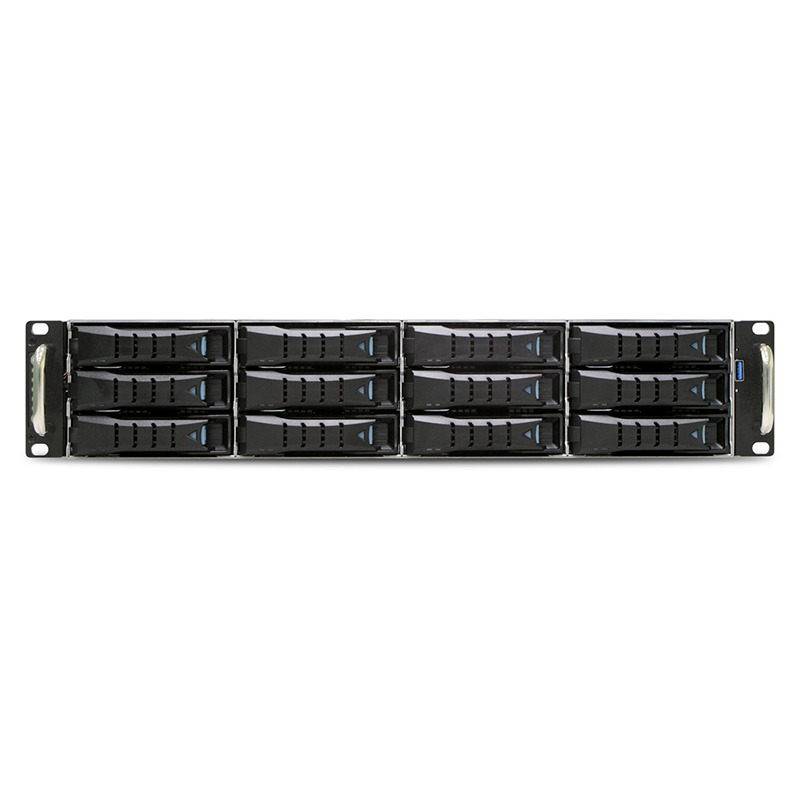

Product Images                                           IPC-C2ETS-R55-EOB-12G (Front)


 IPC-C2ETS-R55-EOB-12G (Front).jpg

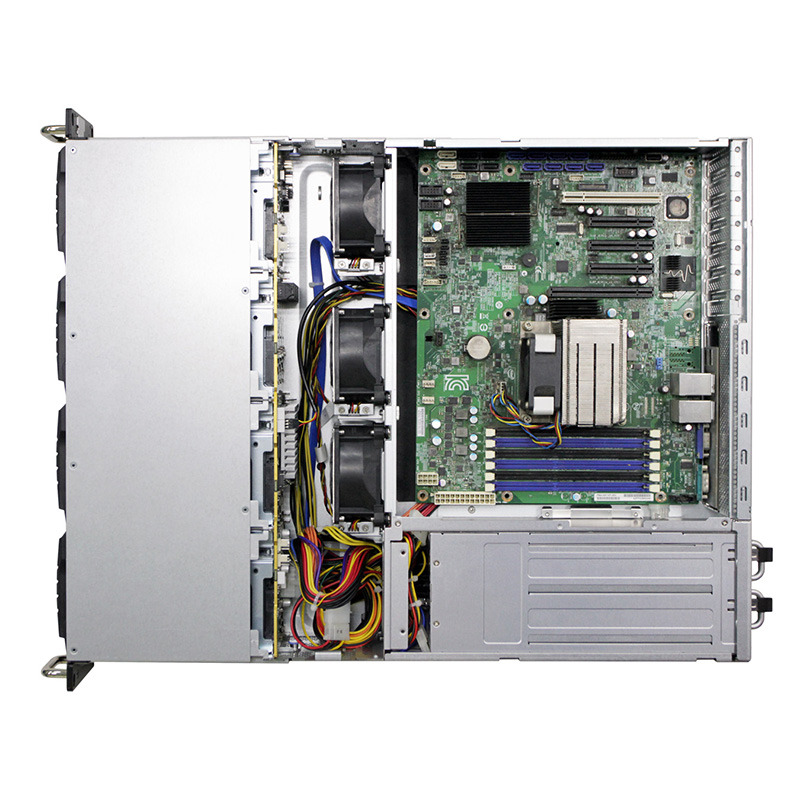

Product Images IPC-C2ETS-R55-EOB-12G (Top Open)


 IPC-C2ETS-R55-EOB-12G (Top Open).jpg

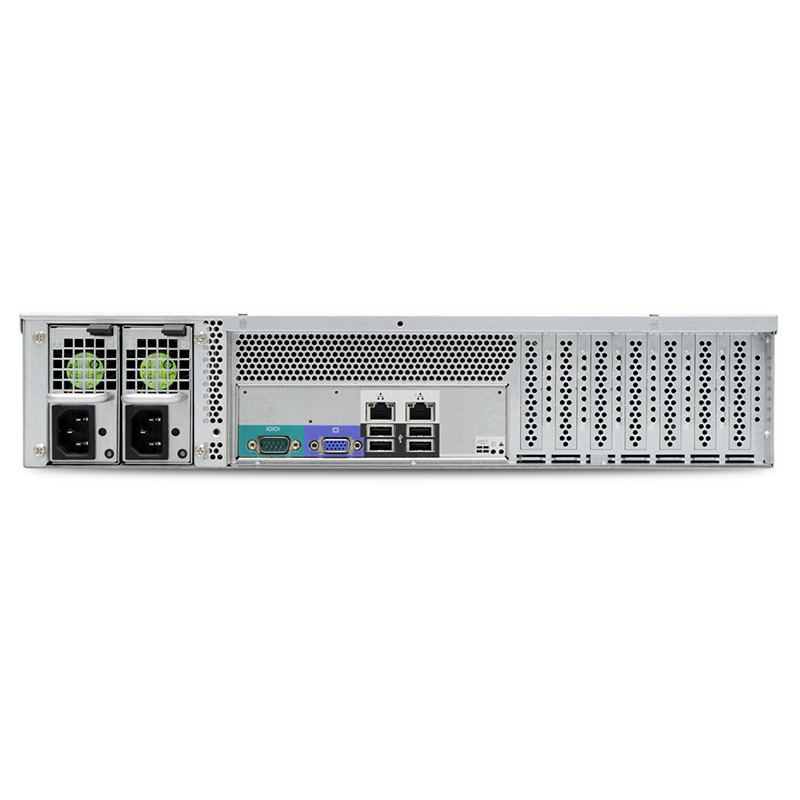

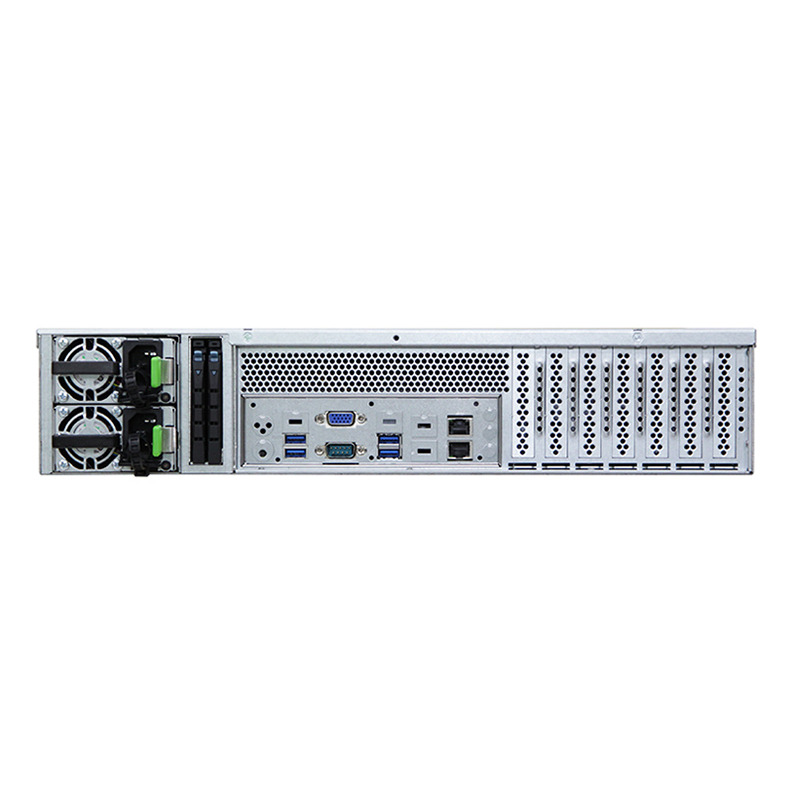

Product Images IPC-C2ETS-R55-EOB-12G (Rear)
 IPC-C2ETS-R55-EOB-12G (Rear).jpg

User Manual/Firmware IPC-C2ETS-R55-EOB-12G

 IPC-C2ETS User Manual v1-1.pdf
 SAS12G Expander on Backplane(EOB)only Firmware

 SAS12G Expander on Backplane(EOB)only MFG

 SAS12G Expander on Backplane(EOB)only FW/MFG release note

HEATSINKS



DATA CABLES








External 1x SFF-8644 - 1 x SFF-8088 1M

Part code: IPC-SCB-ML22

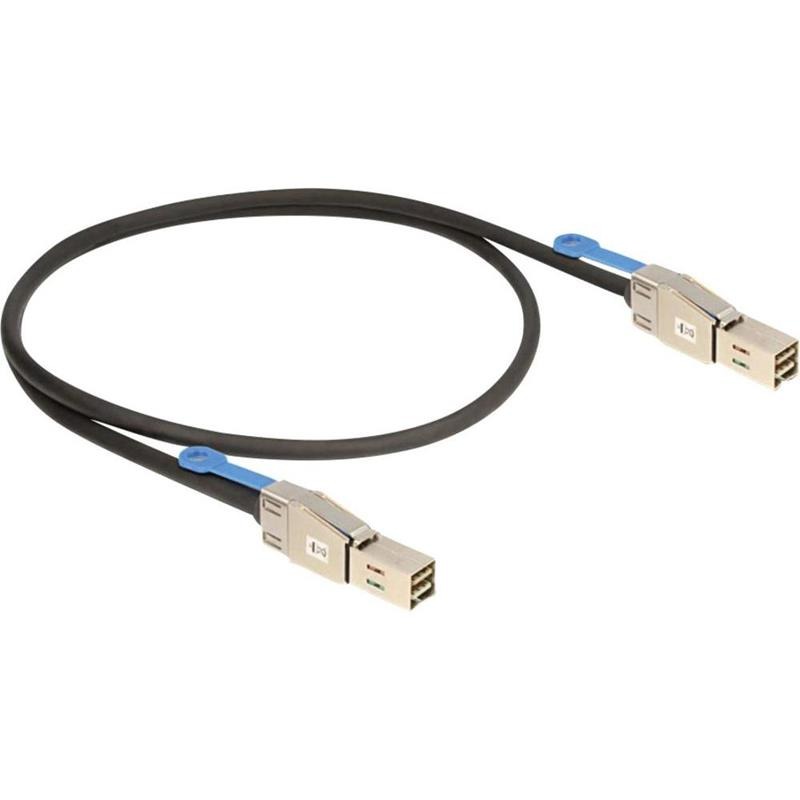

External 2x SFF-8644 1M
