PCICase & AIC Cloud Expo 2018

Posted: 25 Jan 2018

Meet PCICase on 21^st & 22^nd MARCH 2018 at ExCel London - exhibiting with our partner AIC TAIWAN in Cloud Expo – VISIT US ON STAND C1950

Micro-Rack
		Applications
		Datacenter Infrastructure Cloud Datacenter Academic Datacenter Telecoms Datacenter

		Features
Intelligent power management Complete integration for Datacenter Flexibility on configuration Remote Monitoring & Management Rack-level wisdom cooling control Integrated Rack-level node control & Management Inspired by OCP Excellent Power Efficiency Design Serviceability and Easy Maintenance

Model Number	IAG-R19M-00
Model Number	16 RU (Rack Unit) height
Rack Dimension	(WxDxH) 17.64"W x 37.4" D x 28" H
Nodes Content	Top 3U on rear side for Power shelf and busbar Top 3U on front side for RMC and Switches
Power Requirements	The RACKTAL offers unique rack specification for different power budgets from 8.1 kilowatt to 14.58 kilowatt

	One centralised redundant power shelf Support Power modules up to 5+1 redundant PSU Power bank provides total 8KW (5+1) with 1620W module Leverage originalrack cabinet AC power sources

2U 12G 24-bay JBOF (just a bunch of flash), comes with 24 2.5” hot-swap drive bays to support NVMe PCIe U.2 drives
	• 24 NVMe U.2 bays • Performance up to 6 times faster than SATA SSD, 3 times faster than SAS 12G SSD • Designed for lowlatencyandhigh performance applications • PCIe Interface to support NVMe over fabric (3rd party cards) • Hot swap design for easy maintenance and management • Intelligent Enclosure Management • Tool-less tray design

1U 36-Bay storage server supports 36 NGSFF (Next Generation Small Form Factor) PCIe NVMe
SSD drives to provide a high density, all NVMe Flash storage array
Supports two Intel® Xeon® Scalable Processor family
With Intel® C620 Series Chipset to provide 5+ years product life cycle
Flexible IO usage with Max IO™ to support up to 2 NIC Cards and 2 OCP Mezzanine Cards v2.0
Onboard Baseboard Management Controller for system management and IPMI control
Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions

2U 4 Node NVMe Barebones Storage Chassis with 24 x 2.5" (4 x NVMe + 2 x SAS/SATA per node)
	2U 4 x AIC Aidos base E5 Server Node (4 Nodes) 24 x 2.5" NVMe/SAS hybrid drive (6 per node) - 4 x NVMe (Purple Drive Bay) + 2 x SAS/SATA (Blue Drive Bay) -6 x SAS/SATA (Purple Drive Bay and Blue Drive Bay 1 x low-profile (HHHL) card per node 1600W/2000W Hot-Swappable 1+1 redundant PSU

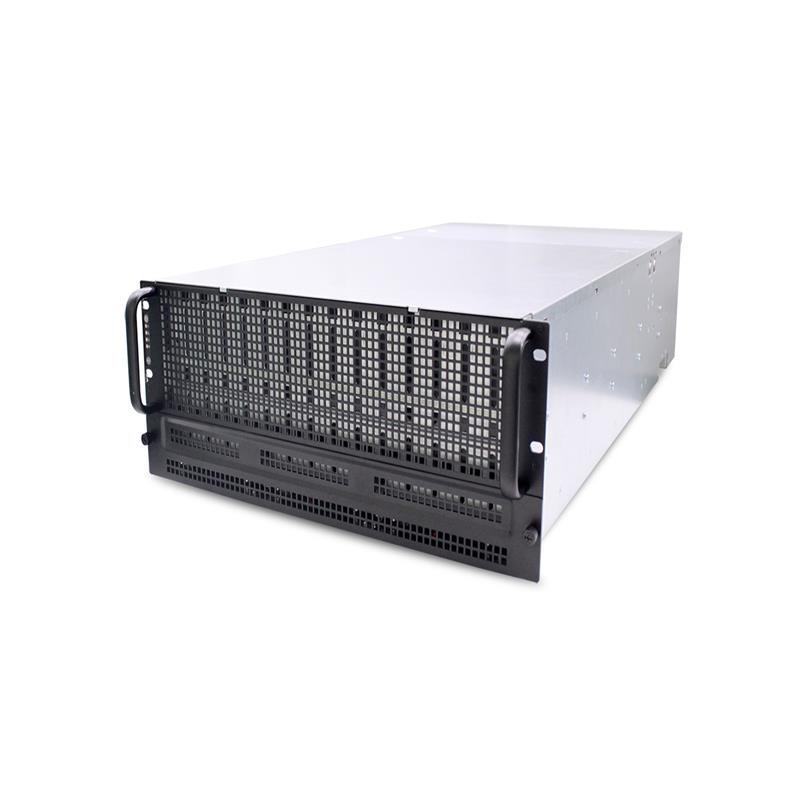

4U 12G 76 Bay JBOD 60 x 3.5" Hot-Swap Drive Trays (Top loading) + 16 x 2.5" Hot-Swap Drive Trays (Rear) with Dual Hot-Swap Expanders and a 1400W Redundant PSU
	• Intelligent enclosure management • Individual drive power management • Tier storage pool design for hot data and cold data • High speed transmission interface for hot data storage pool • Hot swap design for easy maintenance and management • Enclosure cable management kit • Intelligent enclosure management port (optional)

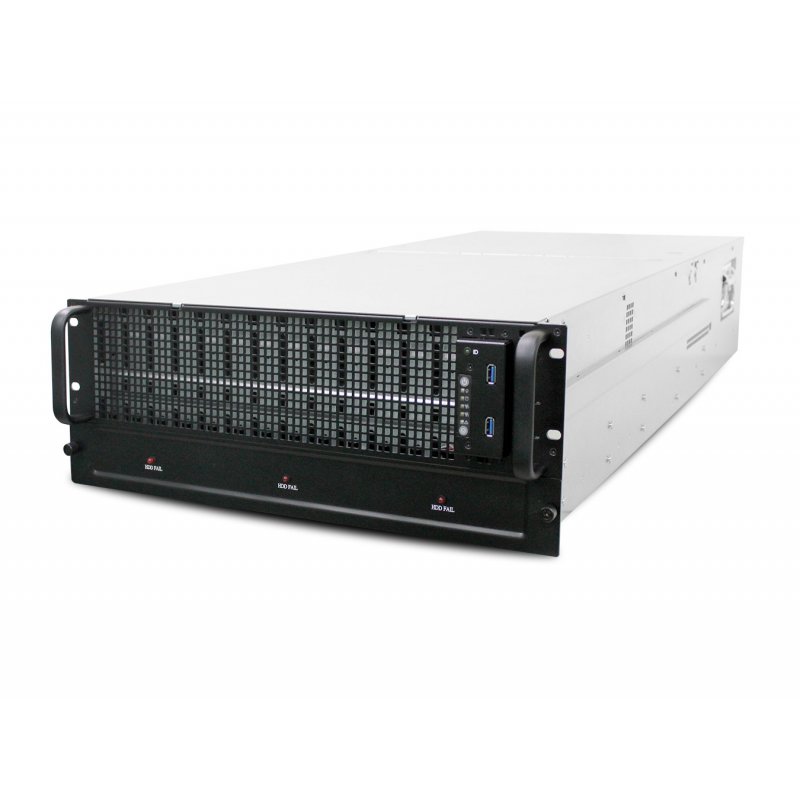

4U 12G JBOD 60 x 3.5" Top loading Hot-Swap Drive Trays with Dual Hot-Swap Expanders and a 1400W Redundant PSU
		Intelligent Enclosure Management Individual drive power management Hot swap design for easy maintenance and management Optional Cable Management Kit

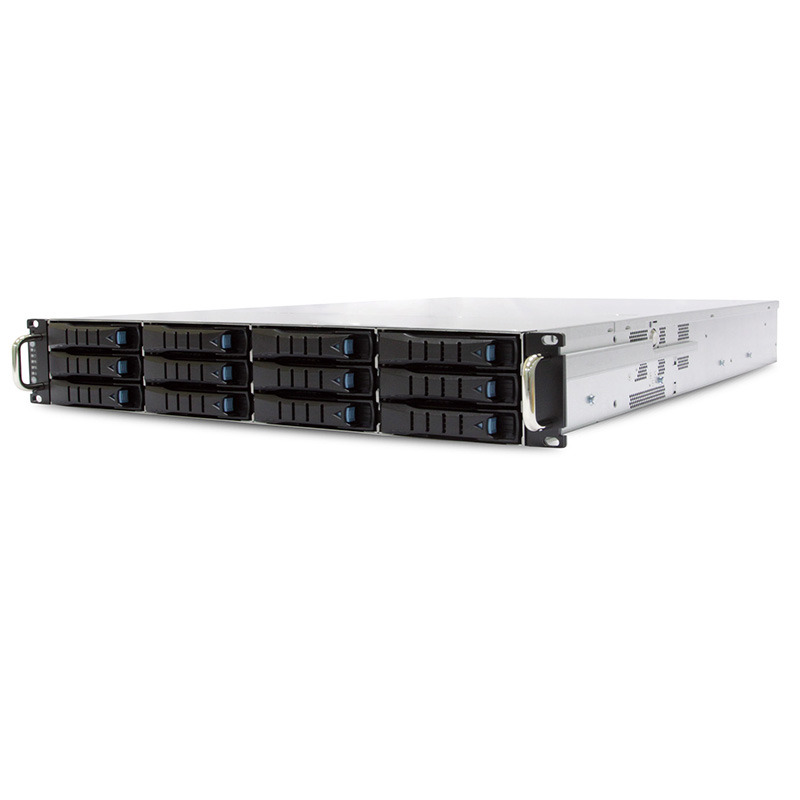

2U 12-Bay storage server
Supports two Intel® Xeon® Processors E5-2600 v3 and v4 product family
With Intel® C612 Series Chipset to provide 5+ years product life cycle
Onboard Baseboard Management Controller for system management and IPMI control
Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
Two 10 GbE RJ45 ports

For more details, please click
